Temperature Blend Door Actuator - RH: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

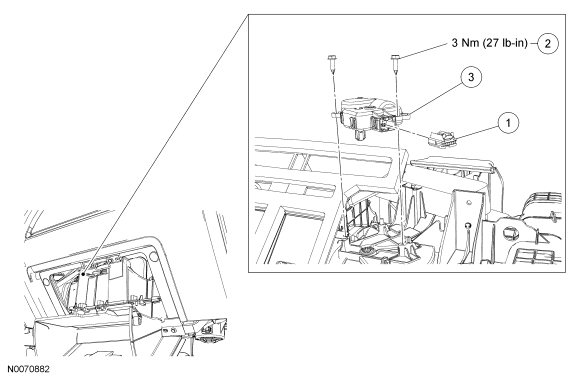

| Item |
Part Number |
Description |
| 1 |
- |
RH temperature blend door actuator electrical connector (part of 19D887) |
| 2 |
W701696 |
RH temperature blend door actuator screw (2 required) |
| 3 |
19E616 |
RH temperature blend door actuator |
