Exhaust Gas Recirculation (EGR) System Components - Exploded View

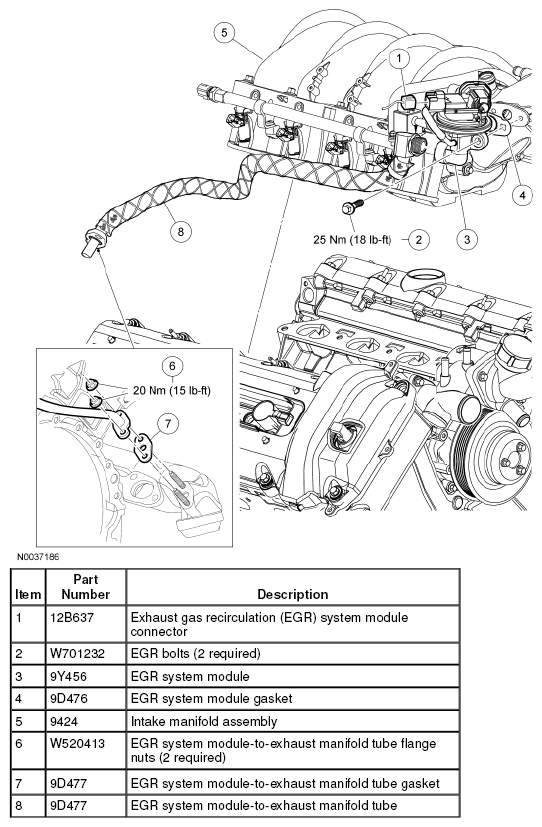

Fig 1: Exploded View Of Exhaust Gas Recirculation EGR System Components With Torque Specifications

Courtesy of FORD MOTOR CO.

1. For additional information, refer to appropriate procedure.
