Floor Console: Notes

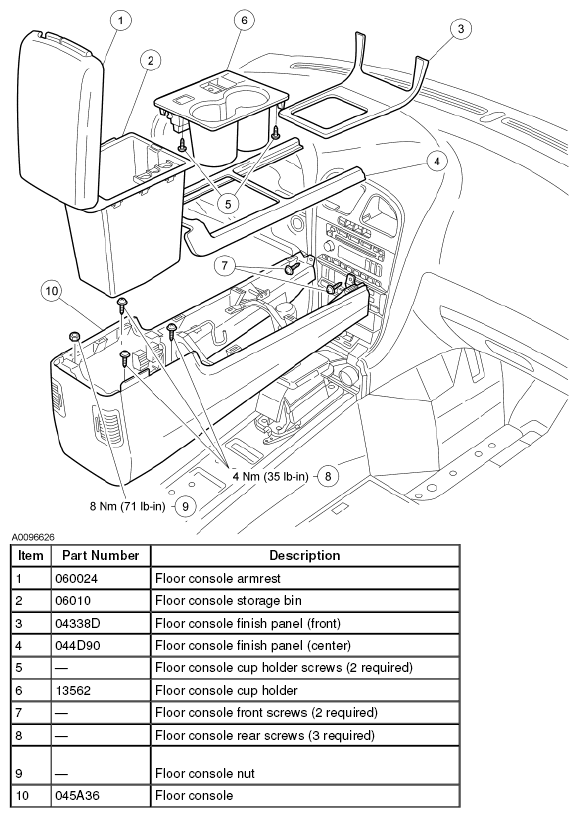

Fig 1: Exploded View Of Floor Console With Torque Specifications

G04693364

Courtesy of FORD MOTOR CO.
