Seat - Exploded View, Rear
Seat - Exploded View, Rear

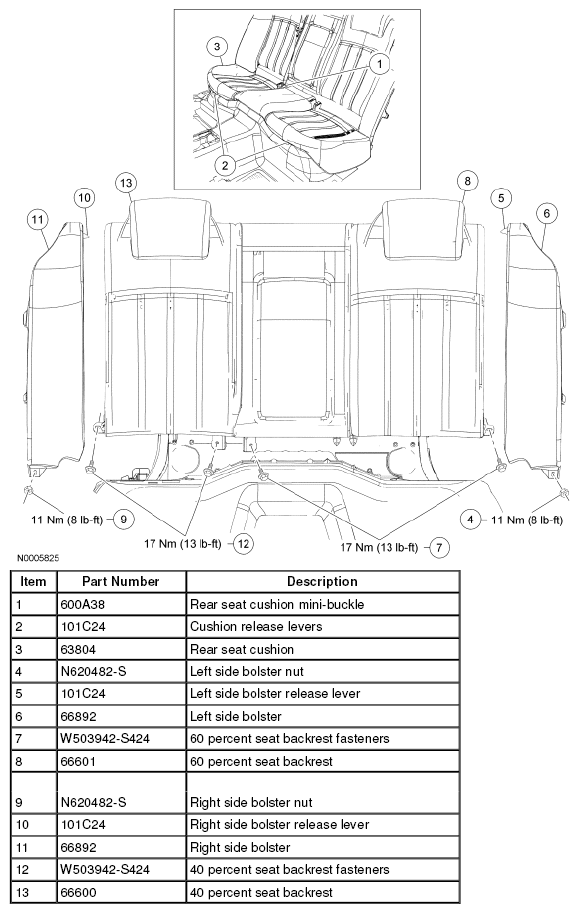

Fig 1: Exploded View Of Seat - Rear With Torque Specifications
Courtesy of FORD MOTOR CO.
For additional information, refer to appropriate procedure.
Courtesy of FORD MOTOR CO.
