Front Seat Backrest

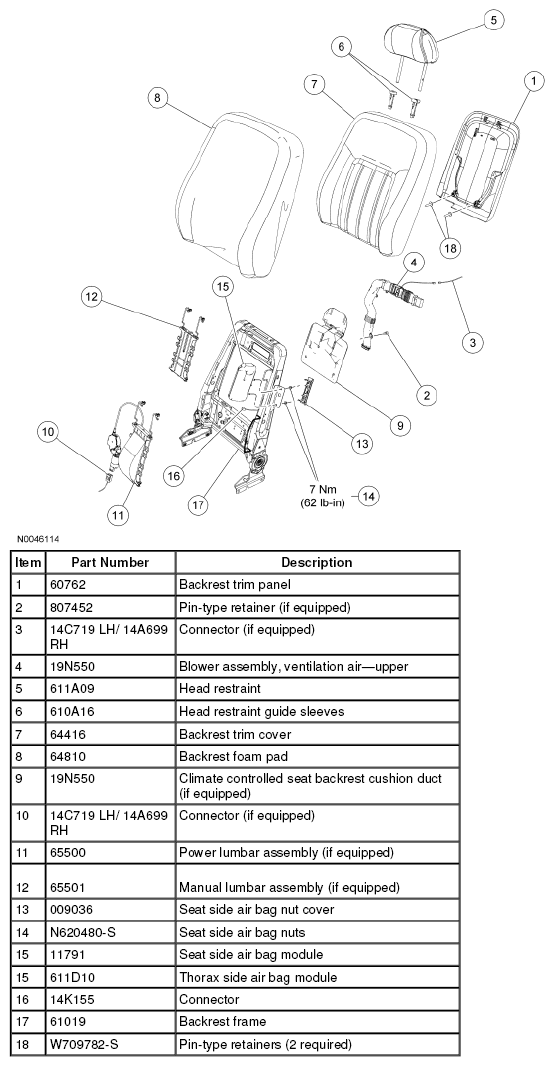

Fig 1: Front Seat Backrest With Torque Specifications

G04693231

Courtesy of FORD MOTOR CO.

For additional information, refer to appropriate procedure.
