Hood Latch and Components - Exploded View
Hood Latch and Components - Exploded View

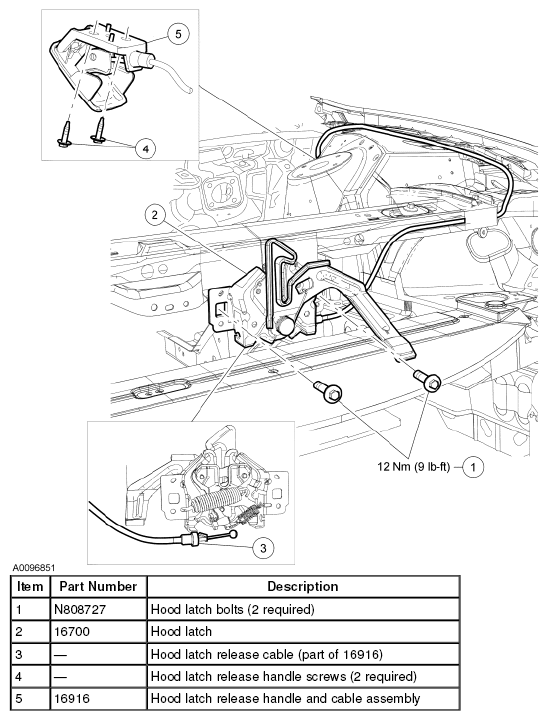

Fig 1: Exploded View Of Hood Latch (With Torque Specification)
Courtesy of FORD MOTOR CO.
For additional information, refer to appropriate procedure.
Courtesy of FORD MOTOR CO.
