Steering column position switch: Terminals

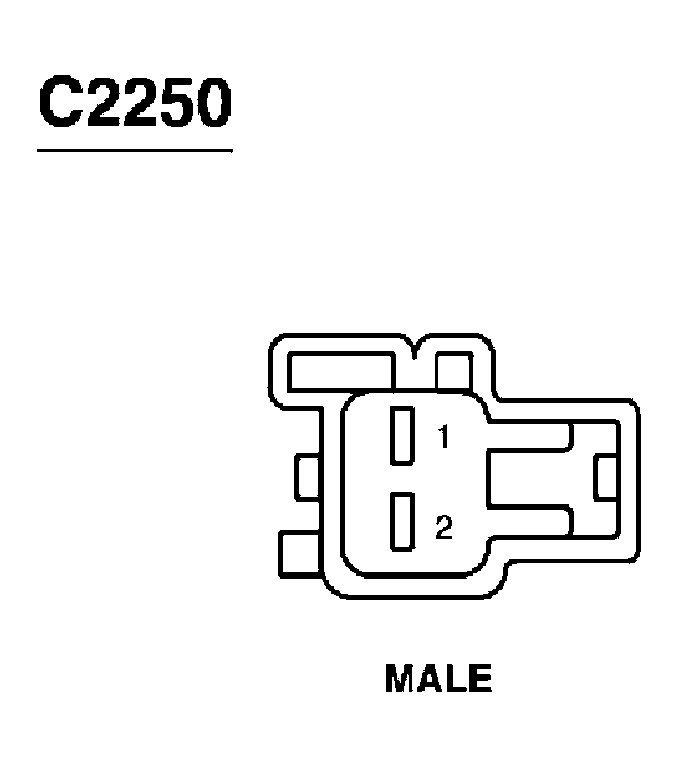

Fig 1: Identifying C2250 Connector Terminals

G04597747

Courtesy of FORD MOTOR CO.
