Transmission Support Crossmember: Installation

  1. Position the LH side of the crossmember into the crossmember pocket and loosely install the bolts.
    Fig 1: Positioning LH Side Of Crossmember Into Crossmember Pocket
    G04016767Courtesy of FORD MOTOR CO.
  2. Position the RH side of the crossmember into the crossmember pocket and loosely install the bolts.
    Fig 2: Positioning RH Side Of Crossmember Into Crossmember Pocket
    G04016768Courtesy of FORD MOTOR CO.
  3. Tighten the LH crossmember bolts.
    Fig 3: LH Crossmember Bolts Torque Specification
    G04016671Courtesy of FORD MOTOR CO.
  4. Tighten the RH crossmember bolts.
    Fig 4: RH Crossmember Bolts Torque Specification
    G04016670Courtesy of FORD MOTOR CO.
  5. Install the parking brake cable bracket.

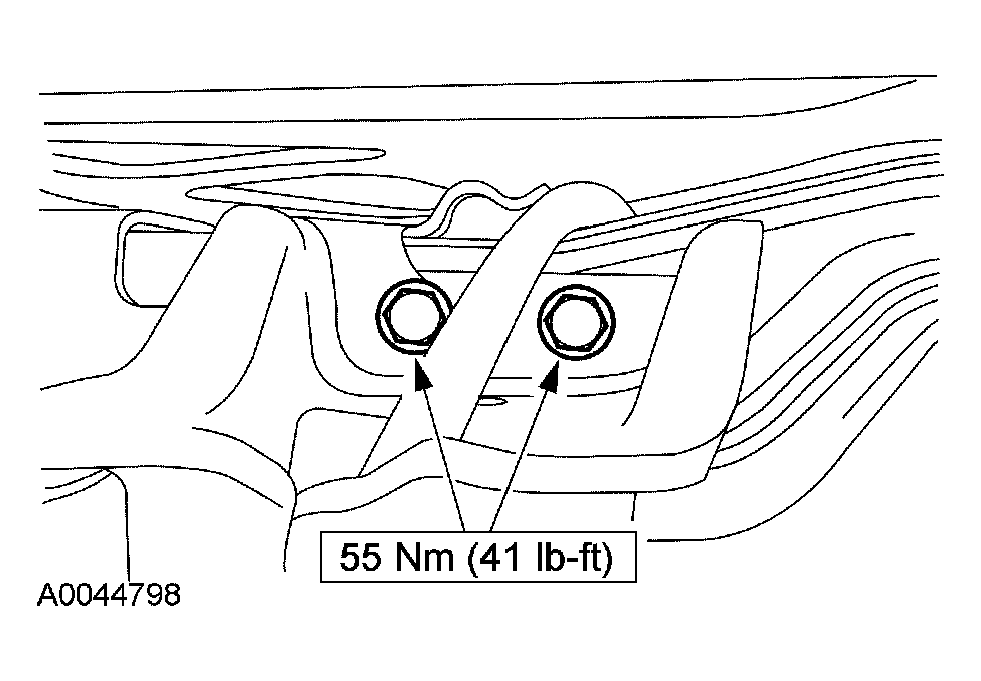

    Fig 5: Parking Cable Bracket Bolts Torque Specification
    G04016672Courtesy of FORD MOTOR CO.
  6. Lower the transmission onto the crossmember and install the rear transmission insulator nuts.
    Fig 6: Rear Transmission Insulator Nuts Torque Specification
    G03882466Courtesy of FORD MOTOR CO.
  7. Remove the transmission jack.
  8. Position the RH catalytic converter assembly in place. Do not tighten the clamp at this time.

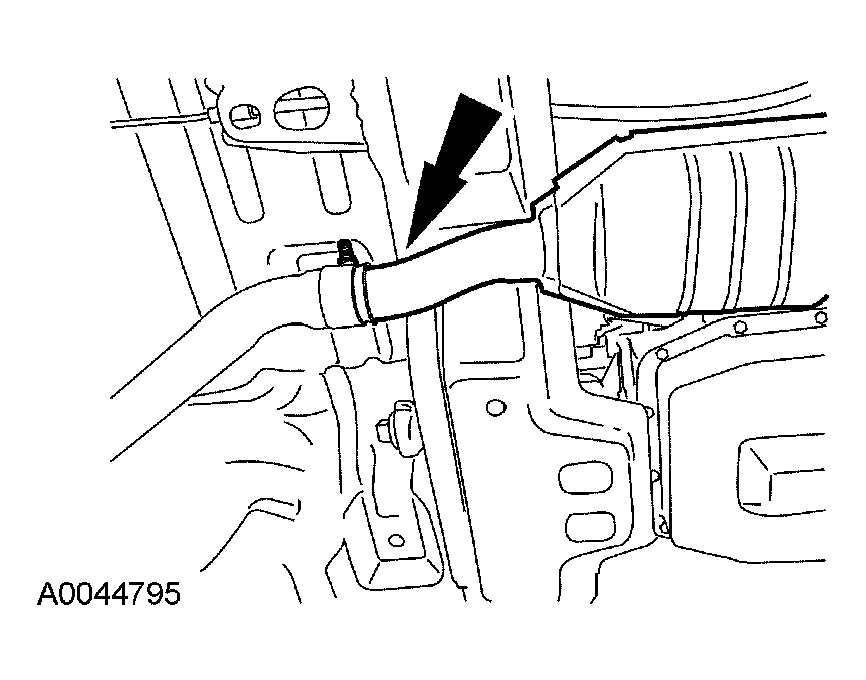

    Fig 7: Positioning RH Catalytic Converter Assembly
    G04016674Courtesy of FORD MOTOR CO.
  9. Install the RH exhaust flange nuts.

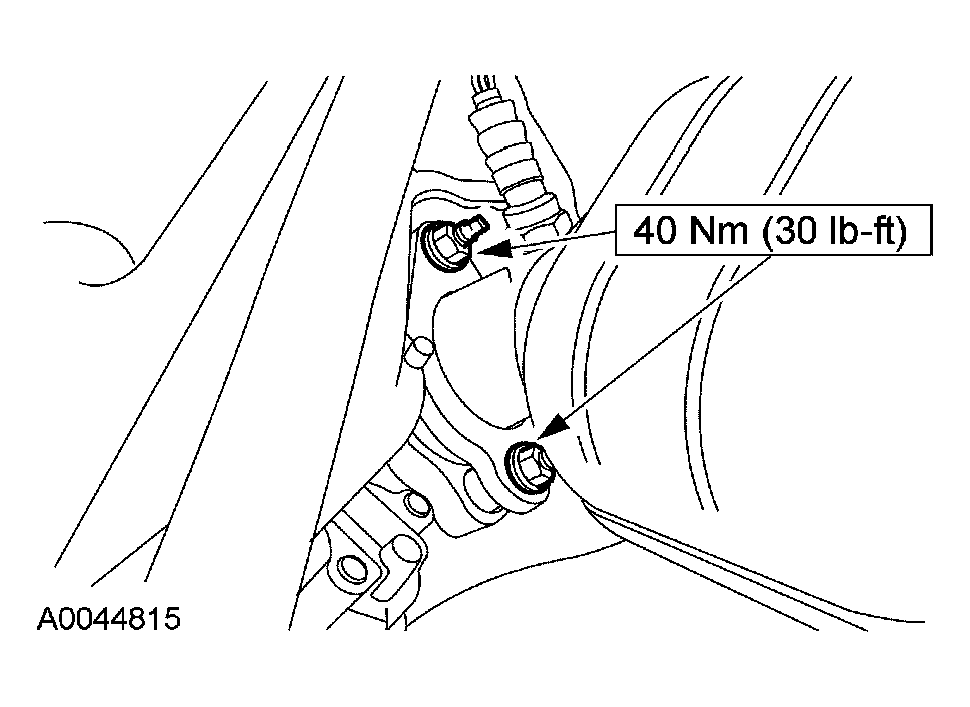

    Fig 8: RH Exhaust Flange Nuts Torque Specification
    G04016675Courtesy of FORD MOTOR CO.
  10. Tighten the RH exhaust clamp.
    Fig 9: RH Exhaust Clamp Torque Specification
    G04016676Courtesy of FORD MOTOR CO.
  11. Connect the RH HO2S sensor connector.

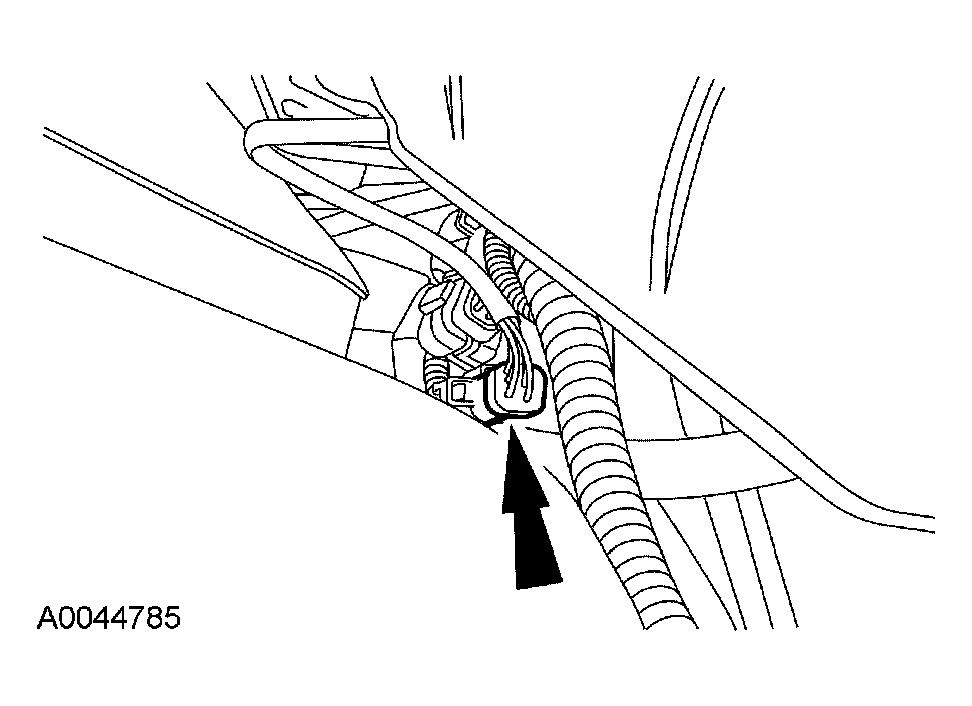

    Fig 10: Connecting RH HO2S Sensor Connector
    G04016753Courtesy of FORD MOTOR CO.
  12. Connect the RH catalyst monitor connector.
    Fig 11: Connecting RH Catalyst Monitor Connector
    G04016678Courtesy of FORD MOTOR CO.
  13. Position the LH catalytic converter assembly in place. Do not tighten the clamps at this time.

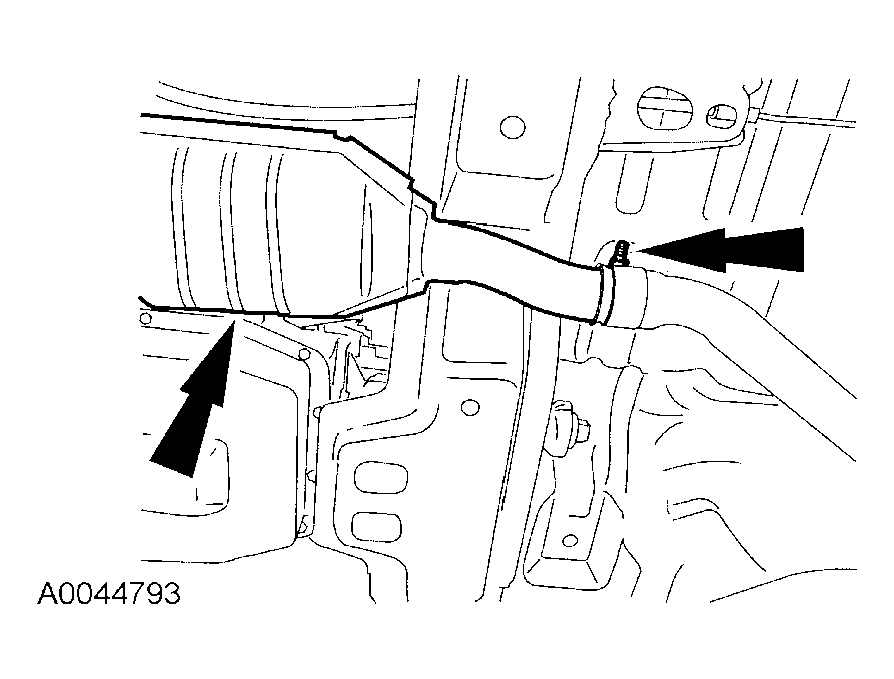

    Fig 12: Positioning LH Catalytic Converter Assembly
    G03882571Courtesy of FORD MOTOR CO.
  14. Install the LH exhaust flange nuts.

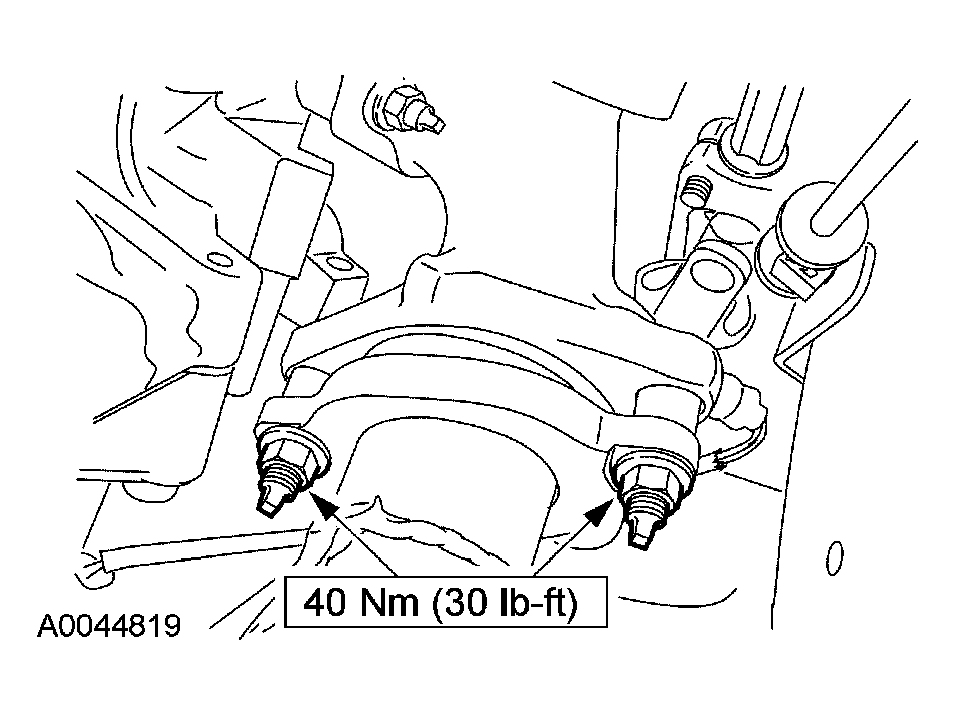

    Fig 13: LH Exhaust Flange Nuts Torque Specification
    G04016680Courtesy of FORD MOTOR CO.
  15. Tighten the LH exhaust clamp.
    Fig 14: LH Exhaust Torque Specification
    G04016681Courtesy of FORD MOTOR CO.
  16. Connect the LH HO2S sensor connector.
    Fig 15: Connecting LH HO2S Sensor Connector
    G04584303Courtesy of FORD MOTOR CO.
  17. Connect the LH catalyst monitor connector.
    Fig 16: Connecting LH Catalyst Monitor Connector
    G04584304Courtesy of FORD MOTOR CO.
  18. Lower the vehicle.
