Digital Transmission Range (TR) Sensor: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
  2. Disconnect the manual lever shift control cable.

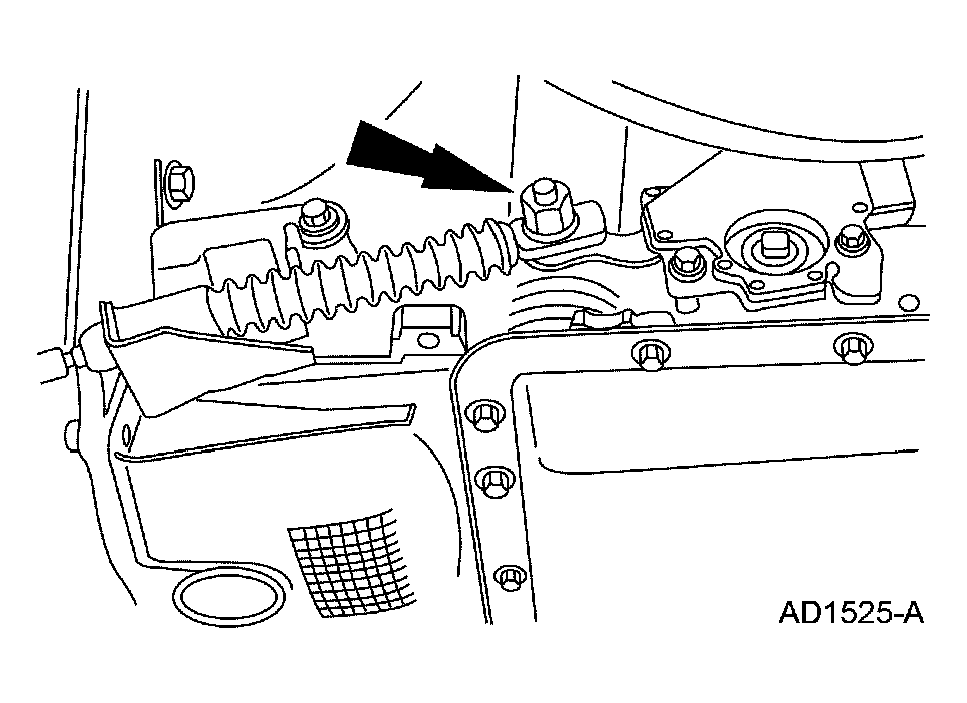

    Fig 1: Disconnecting Manual Lever Shift Control Cable
    G04016717Courtesy of FORD MOTOR CO.
  3. Disconnect the digital TR sensor connector.
    Fig 2: Disconnecting Digital TR Sensor Connector
    G04016694Courtesy of FORD MOTOR CO.
  4. Remove the bolts and remove the digital TR sensor.
    Fig 3: Removing Bolts And Digital TR Sensor
    G04016696Courtesy of FORD MOTOR CO.
