Digital Transmission Range (TR) Sensor: Installation

  1. Install the digital TR sensor and loosely install the bolts.
    Fig 1: Installing Digital TR Sensor
    G04016696Courtesy of FORD MOTOR CO.
    2. NOTE: Manual shift lever shaft must be in the neutral position.
    Fig 2: Aligning Digital TR Sensor Slots Using Special Tool
    G03888628Courtesy of FORD MOTOR CO.
  2. Using the special tool, align the digital TR sensor slots. The tool is designed to fit snugly.
    3. CAUTION: Tightening one screw before tightening the other may cause the sensor to bind or become damaged.

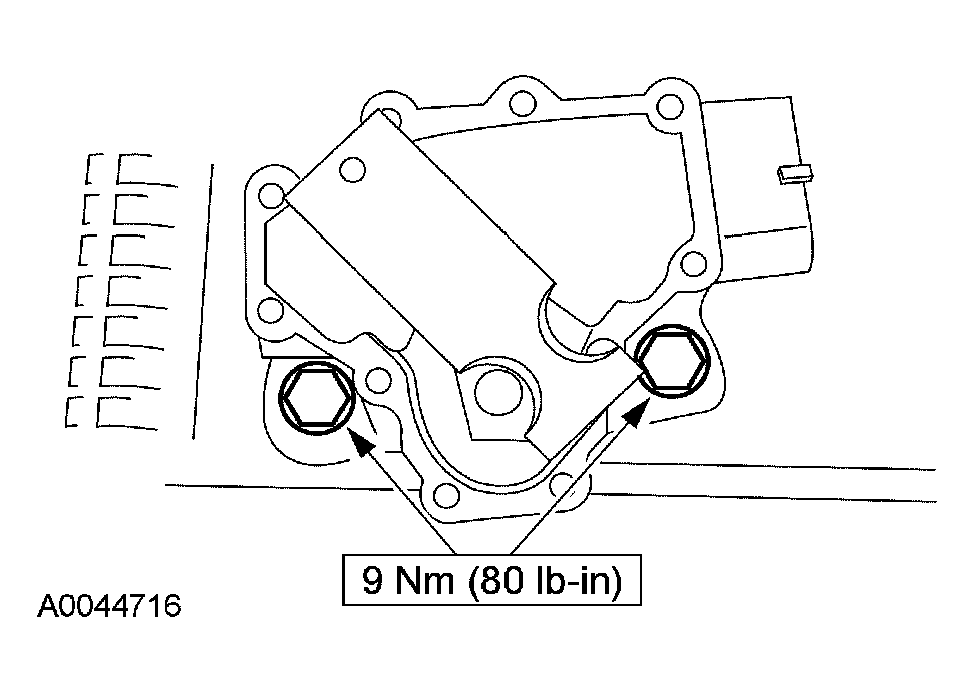

    Fig 3: Tightening Screws In An Alternating Sequence - With Torque Specification
    G04016623Courtesy of FORD MOTOR CO.
  3. Tighten the screws in an alternating sequence.
  4. With the manual lever in overdrive, connect the shift lever control cable.

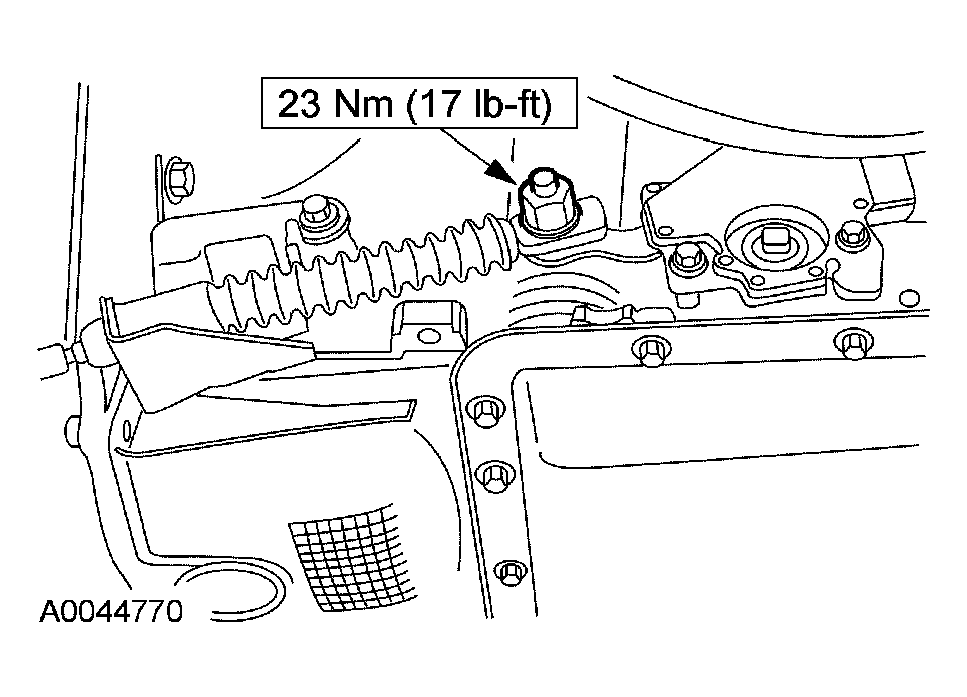

    Fig 4: Connecting Shift Lever Control Cable - With Torque Specification
    G04016714Courtesy of FORD MOTOR CO.
  5. Connect the digital TR sensor electrical connector.

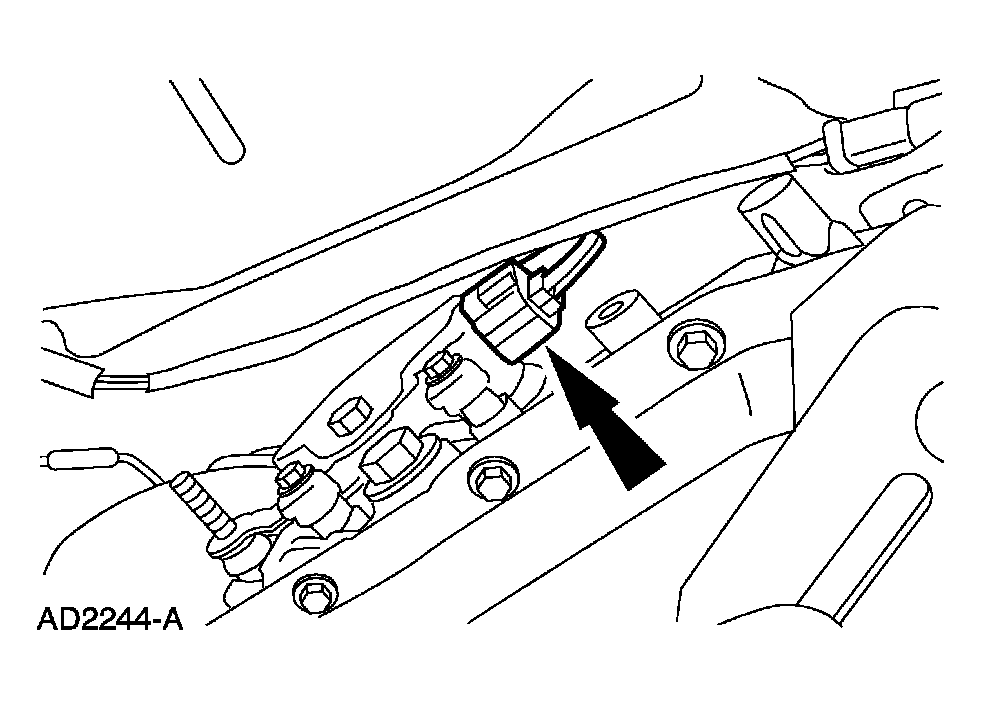

    Fig 5: Connecting Digital TR Sensor Electrical Connector
    G04016694Courtesy of FORD MOTOR CO.
