Reverse Clutch: Material

MATERIAL SPECIFICATION

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM	MERCON® V

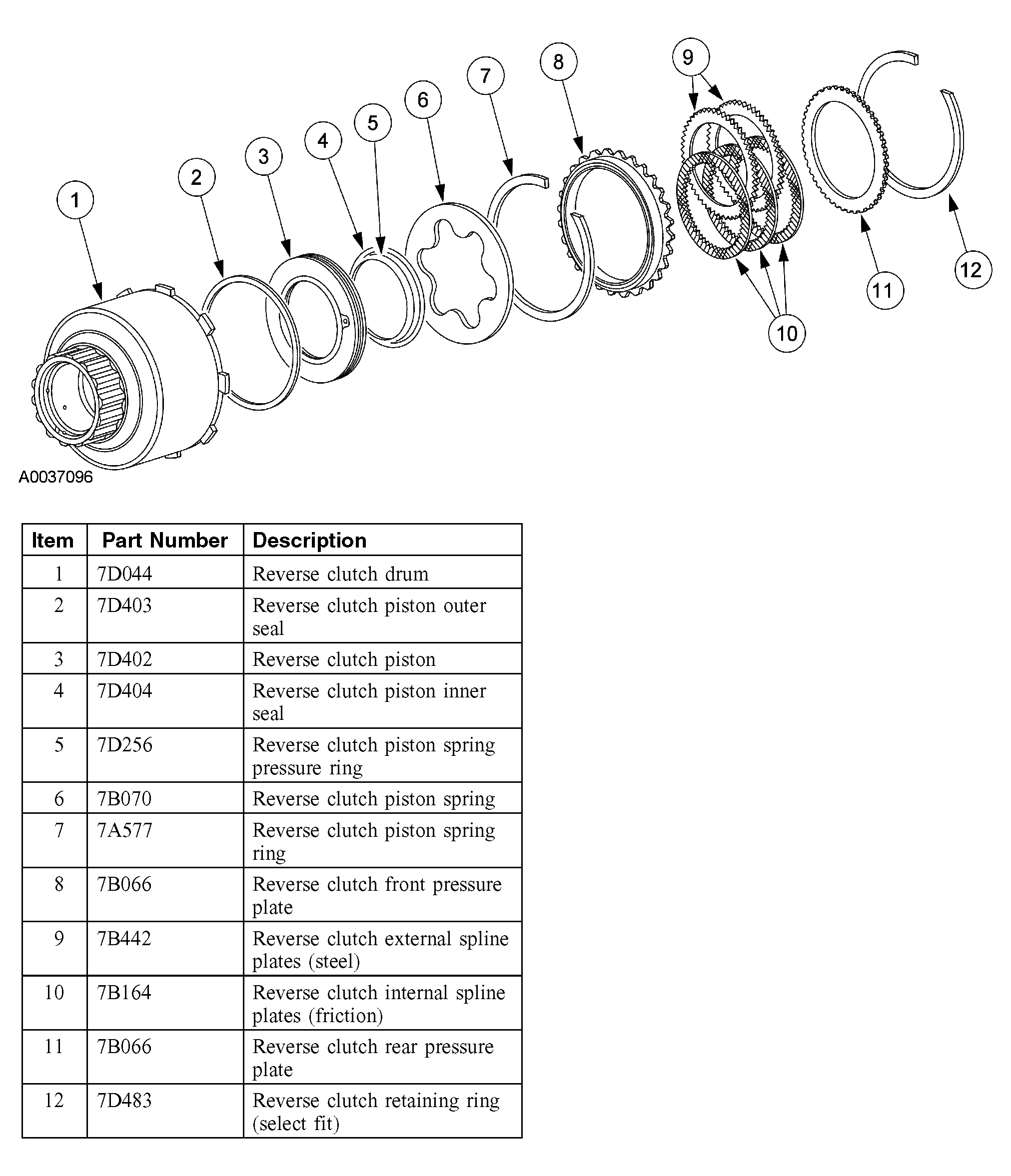

Fig 1: Reverse Clutch - Disassembled View

G04016916

Courtesy of FORD MOTOR CO.
