Removal and Installation

  1. Disconnect the negative battery cable. For additional information, Refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the air cleaner outlet pipe. For additional information, Refer to INTAKE AIR DISTRIBUTION AND FILTERING .
  3. Disconnect the electrical connector from the ignition coil-on-plug.
    Fig 1: Disconnecting Electrical Connector From Ignition Coil-On-Plug
    G03882262Courtesy of FORD MOTOR CO.
  4. Remove the bolt from the ignition coil-on-plug.
    Fig 2: Removing Bolt From Ignition Coil-On-Plug
    G04002659Courtesy of FORD MOTOR CO.
  5. Remove the ignition coil-on-plug.

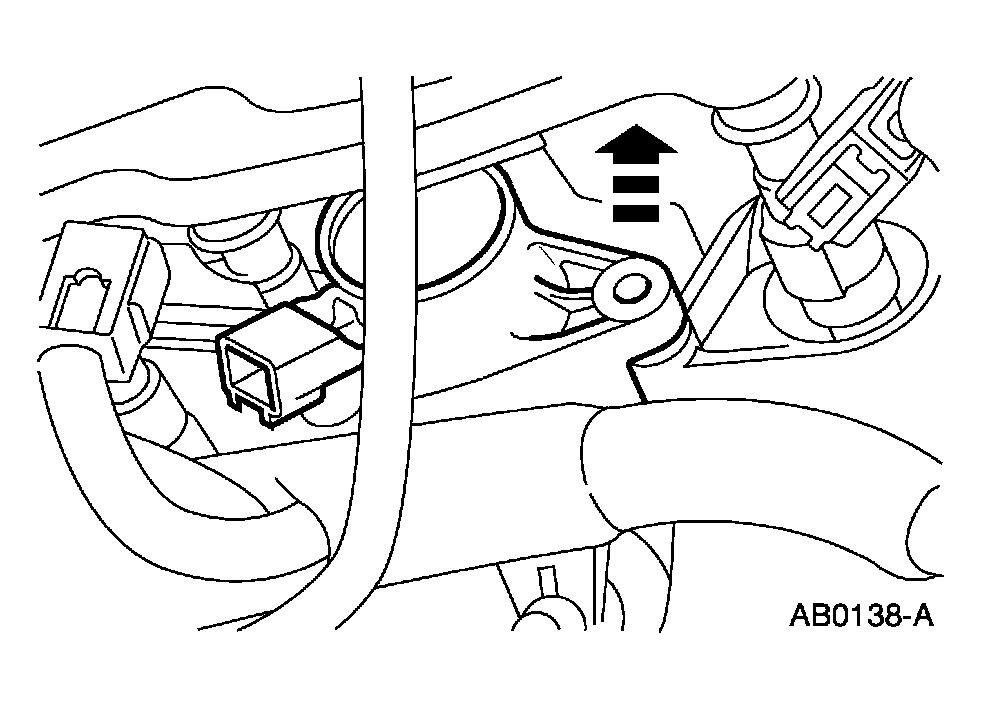

    Fig 3: Removing Ignition Coil-On-Plug
    G04002660Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
Fig 4: Ignition Coil-On-Plug Bolt Torque Specification
G04001984Courtesy of FORD MOTOR CO.
