In-Vehicle Repair: Camshaft: Installation

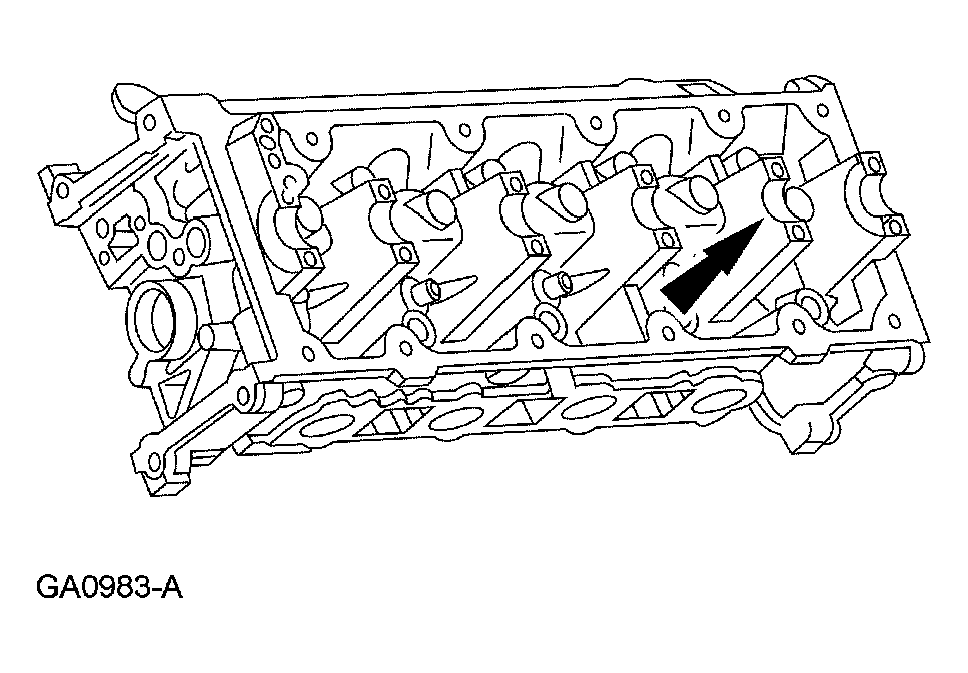

  1. Lubricate the camshaft journals with clean engine oil.
    Fig 1: Identifying Camshaft Journals
    G03905501Courtesy of FORD MOTOR CO.

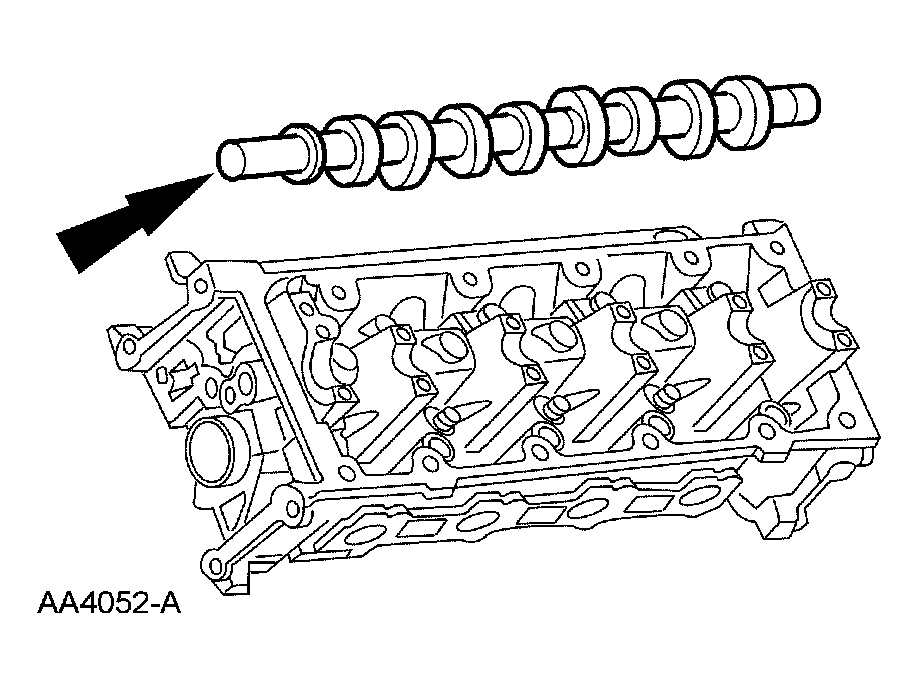

  2. Install the camshaft onto the cylinder head.
    Fig 2: Installing Camshaft Onto Cylinder Head
    G04002007Courtesy of FORD MOTOR CO.

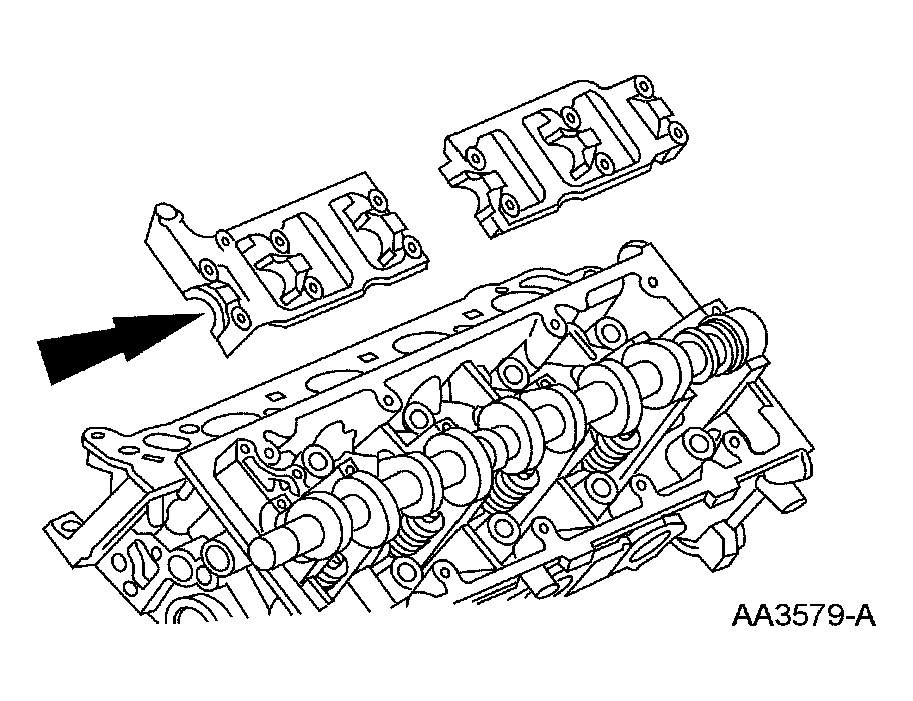

  3. Lubricate the camshaft bearing cap ladders with clean engine oil.
    Fig 3: Identifying Camshaft Bearing Cap Ladders
    G04002010Courtesy of FORD MOTOR CO.

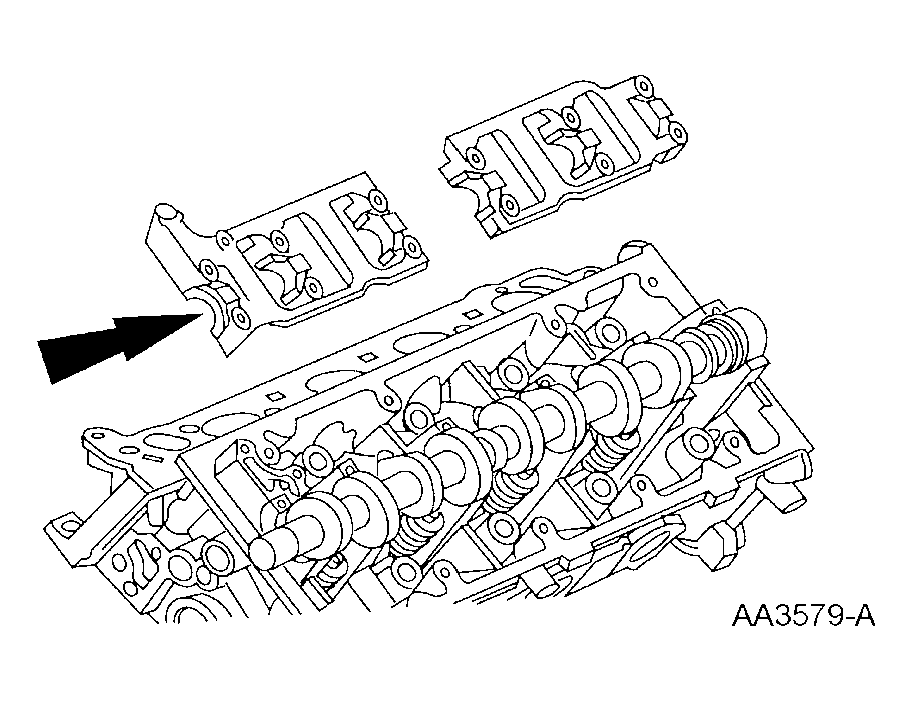

  4. Install the camshaft bearing caps and loosely install the bolts.
    Fig 4: Installing Camshaft Bearing Caps
    G03881624Courtesy of FORD MOTOR CO.
  5. Tighten the bolts in the sequence shown.
    Fig 5: Tightening Sequence & Torque Specification Of Camshaft Bearing Caps Bolts
    G04002012Courtesy of FORD MOTOR CO.

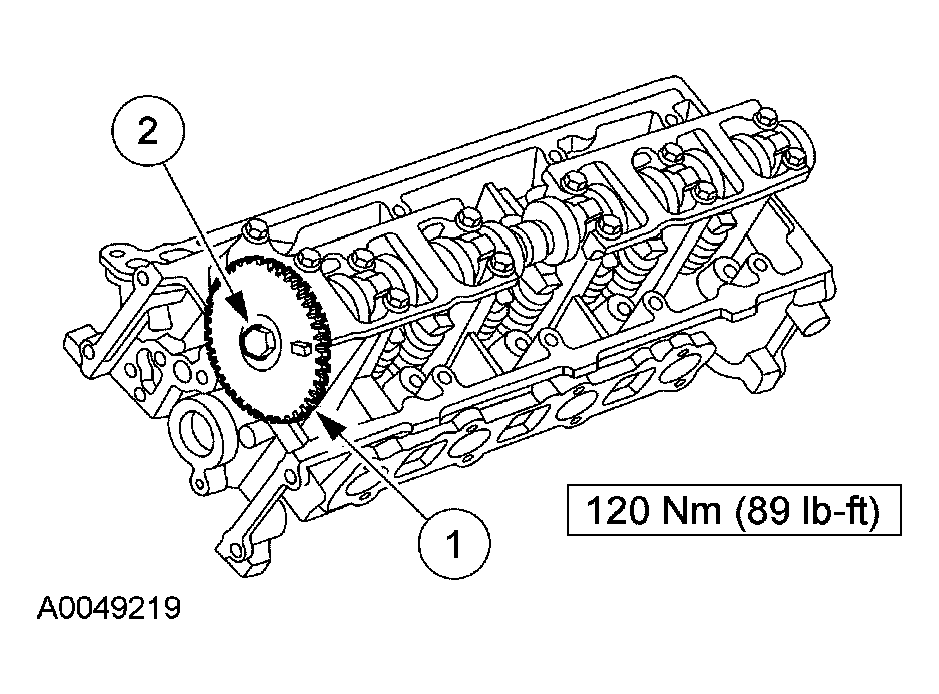

  6. Install the camshaft sprocket spacer.
    1. Position the camshaft sprocket and sprocket spacer.
    2. Install the bolt.
    Fig 6: Installing Camshaft Sprocket Spacer
    G04002013Courtesy of FORD MOTOR CO.
  7. Install the timing chains. For additional information, refer to TIMING DRIVE COMPONENTS .
  8. Install the roller followers. For additional information, refer to CAMSHAFT ROLLER FOLLOWER .
