Side Impact Sensor - Front Row: Installation

    CAUTION: Always replace the J-clip retaining nut whenever installing a side impact sensor.

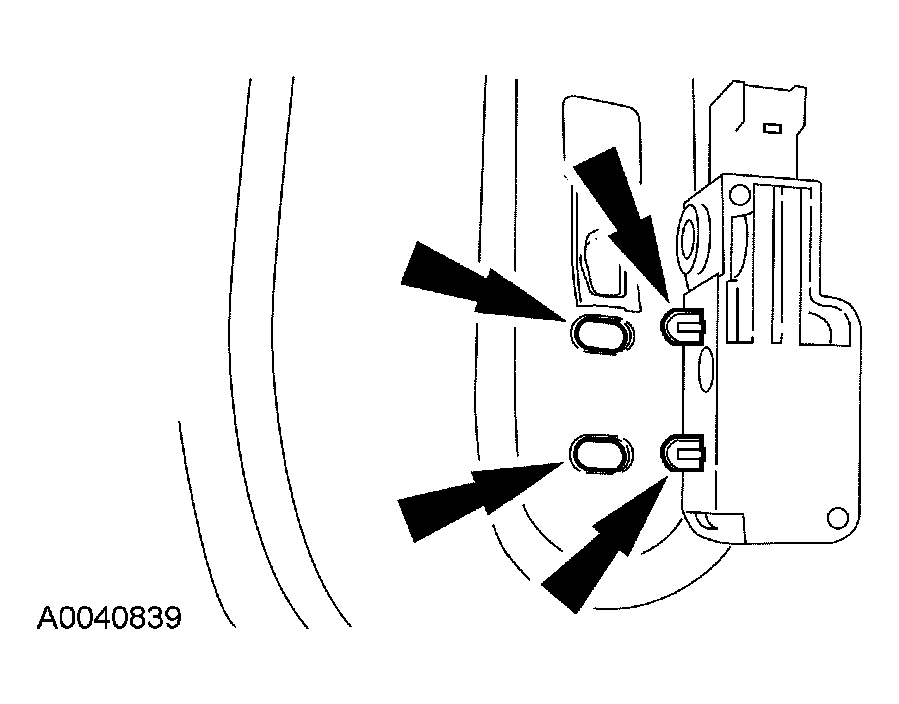

    Fig 1: Aligning Locator Tabs To Openings In Door
    G03933048Courtesy of FORD MOTOR CO.
  1. Align the locator tabs to the openings in the door.
    2. CAUTION: The ground wire must be placed between the bolt head and the sensor. Never position the ground wire between the J-clip retaining nut and the sensor.
    CAUTION: Always replace the J-clip retaining nut whenever installing a side impact sensor.

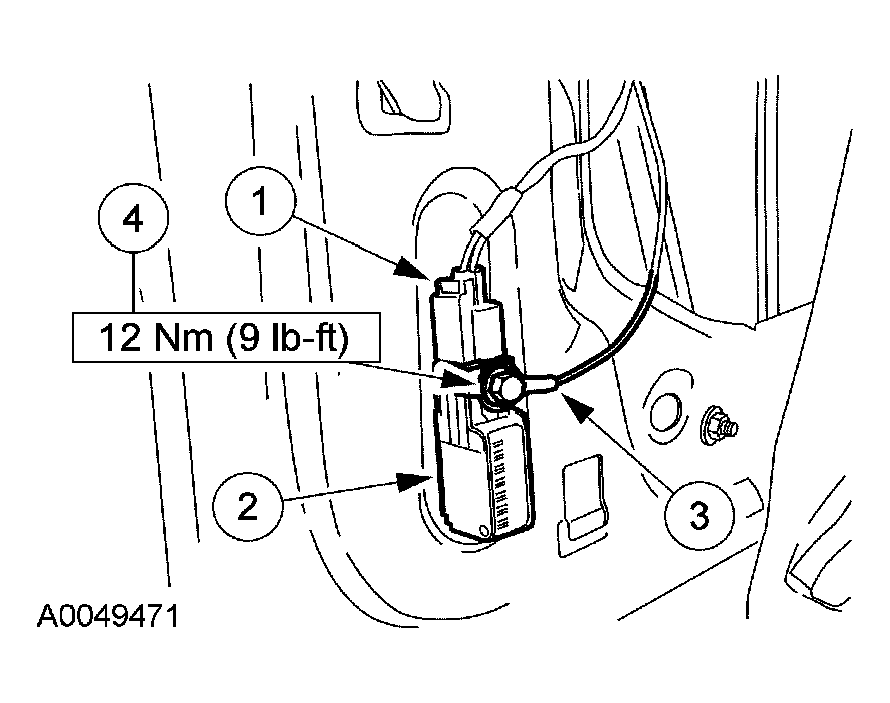

    Fig 2: Installing Side Impact Sensor
    G03933049Courtesy of FORD MOTOR CO.
  2. Install the side impact sensor.
    1. Connect the electrical connector.
    2. With the locator tabs aligned to the openings in the door, position the side impact sensor to the door.
    3. Position the ground wire between the bolt head and the sensor.
    4. Install the bolt.
  3. Position back the weathershield.

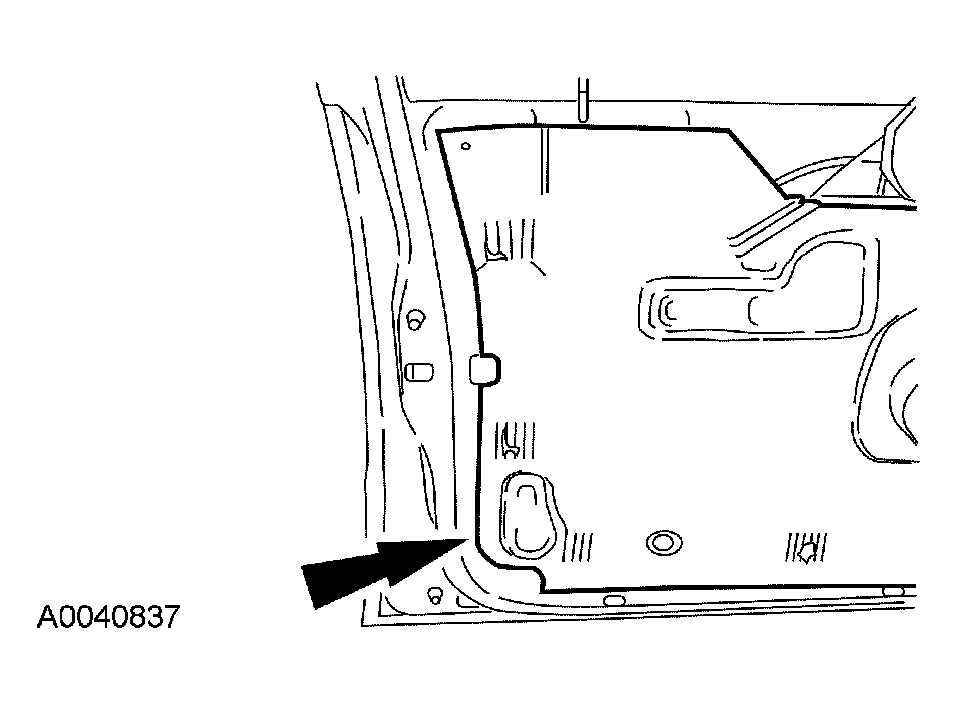

    Fig 3: Positioning Weathershield
    G03933046Courtesy of FORD MOTOR CO.
  4. Install the front interior door trim panel on the side with the affected side impact sensor. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  5. Repower the system. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
