Seat Position Sensor: Installation

    CAUTION: Make sure to remove all metal chips from the seat position sensor and surrounding areas after drilling out rivet.

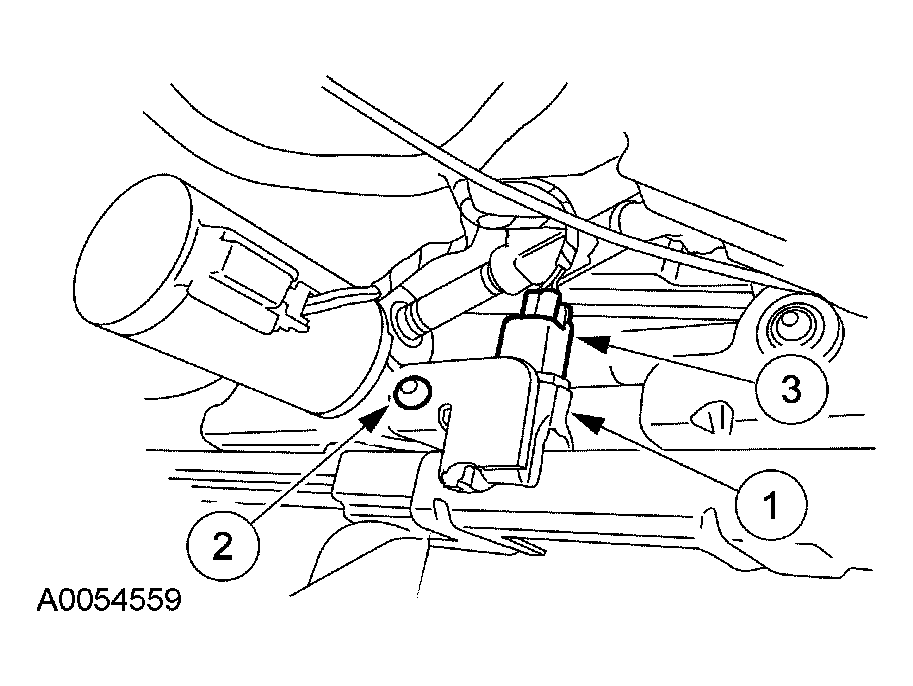

    Fig 1: Installing Seat Position Sensor
    G03932037Courtesy of FORD MOTOR CO.
  1. Install the seat position sensor.
    1. Position the seat position sensor to the seat, engaging the tab to the seat bracket.
    2. Install the rivet.
    3. Connect the seat position sensor electrical connector.
  2. Install the 40 percent driver front seat. For additional information, refer to SEATING .
  3. Repower the system. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
  4. Check the active restraint system for correct operation. For additional information, refer to SAFETY BELT SYSTEM .
