Passenger Air Bag Module: Installation

All vehicles

CAUTION: Do not handle the passenger air bag module by grabbing the edges of the deployment door.

NOTE: The Expedition is shown, the Navigator is similar.

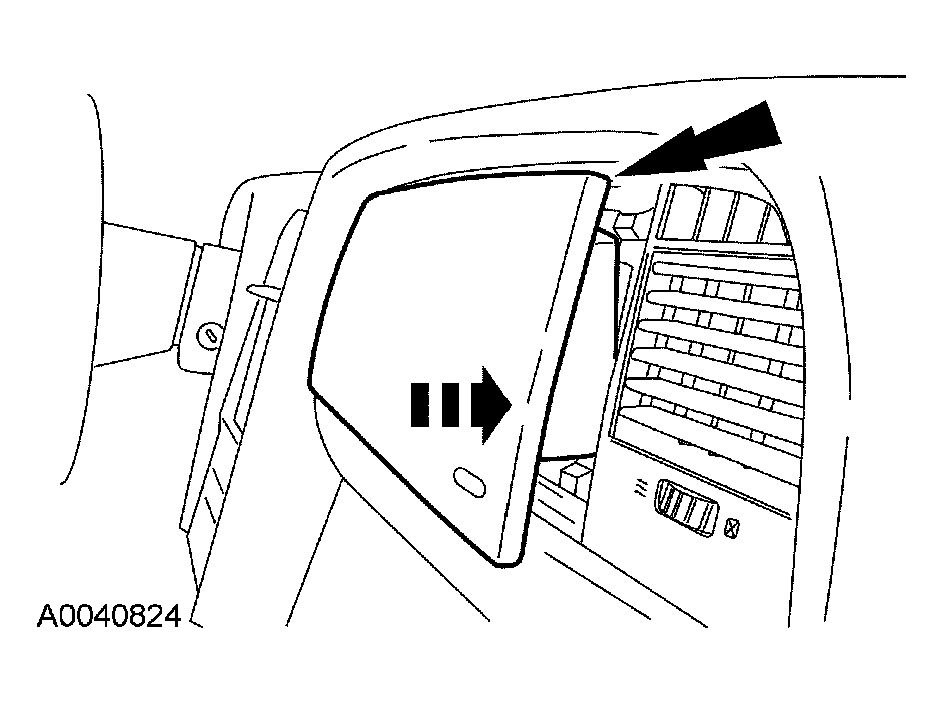

Fig 1: Positioning Passenger Air Bag Module Into Instrument Panel

Courtesy of FORD MOTOR CO.

Navigator vehicles

Install the passenger air bag module nuts.

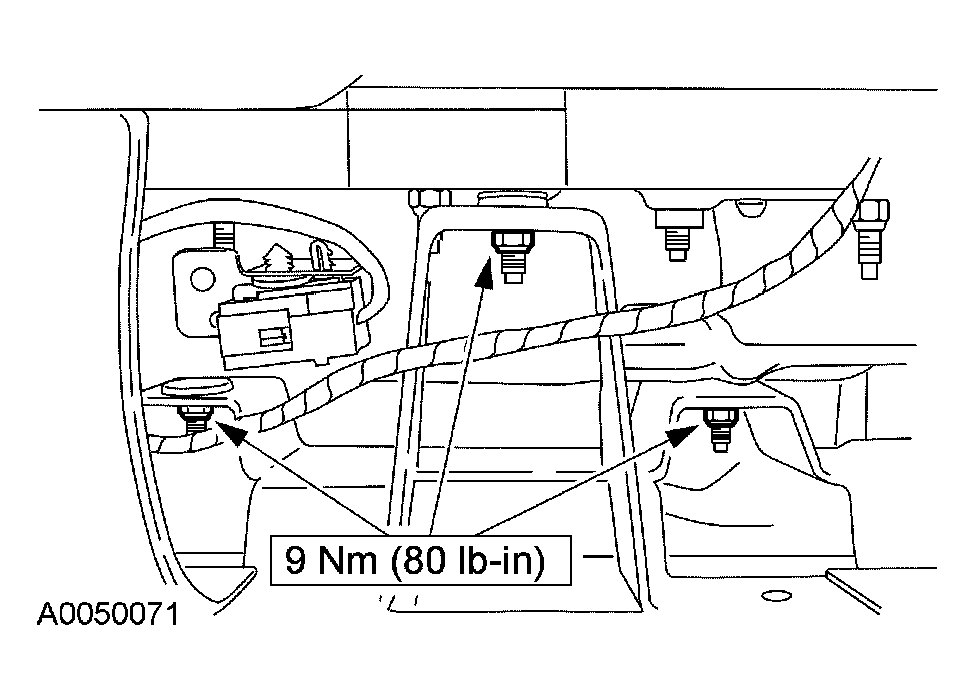

Fig 2: Installing Passenger Air Bag Module Nuts
Courtesy of FORD MOTOR CO.

Expedition vehicles

Install the passenger air bag module bolts.

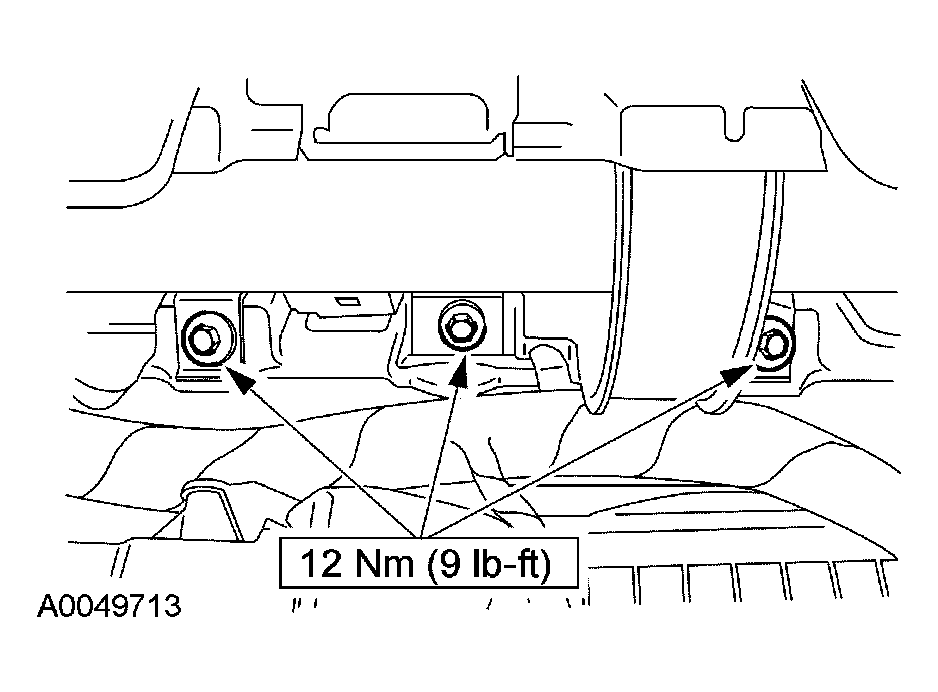

Fig 3: Installing Passenger Air Bag Module Bolts
Courtesy of FORD MOTOR CO.

All vehicles

NOTE: Expedition is shown, Navigator is similar.

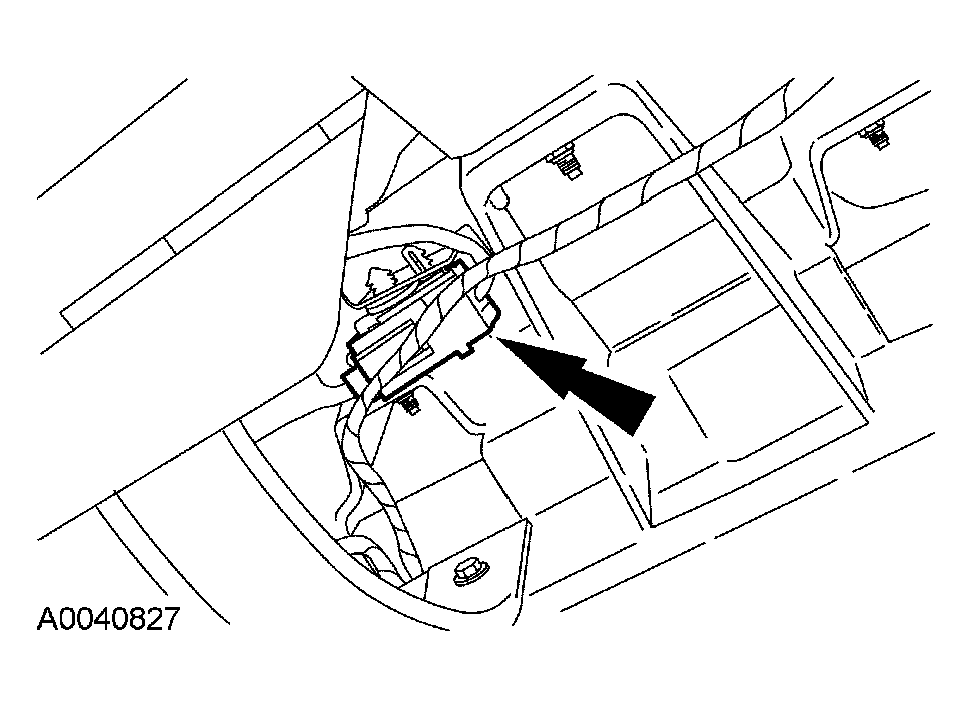

Fig 4: Connecting Passenger Air Bag Module Electrical Connector

Courtesy of FORD MOTOR CO.

Connect the passenger air bag module electrical connector.
Close the glove box.
Repower the system. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
