Fuel Rail and Fuel Injector - Exploded View
Fuel Rail and Fuel Injector - Exploded View

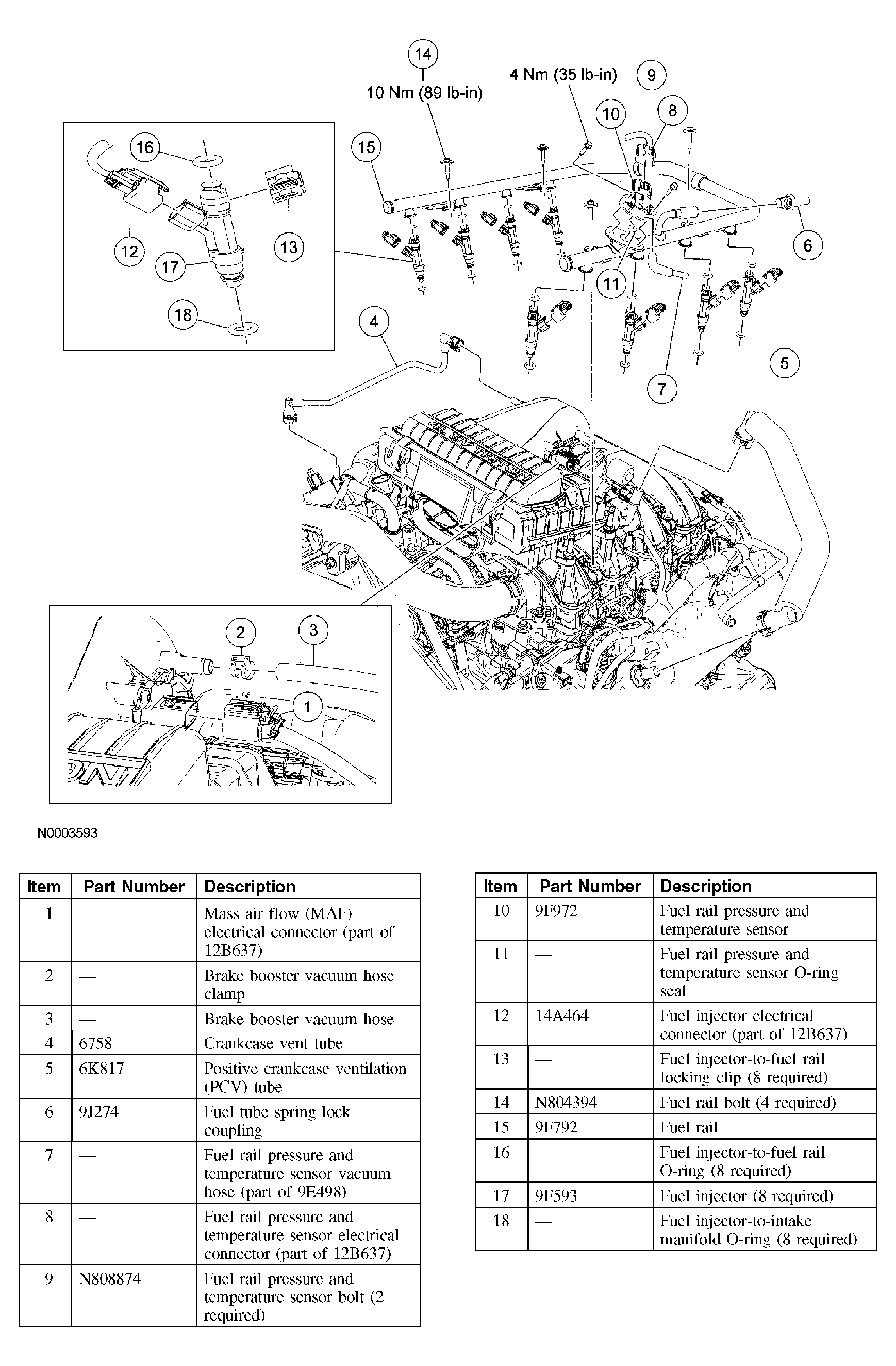

Fig 1: Fuel Rail And Fuel Injector - Exploded View
Courtesy of FORD MOTOR CO.
For additional information, Refer to the appropriate procedure in this article.
Courtesy of FORD MOTOR CO.
