Selector Lever - Column Shift: Removal

  1. Remove the steering wheel. For additional information, refer to STEERING COLUMN .
  2. Remove the upper and lower steering column shroud.

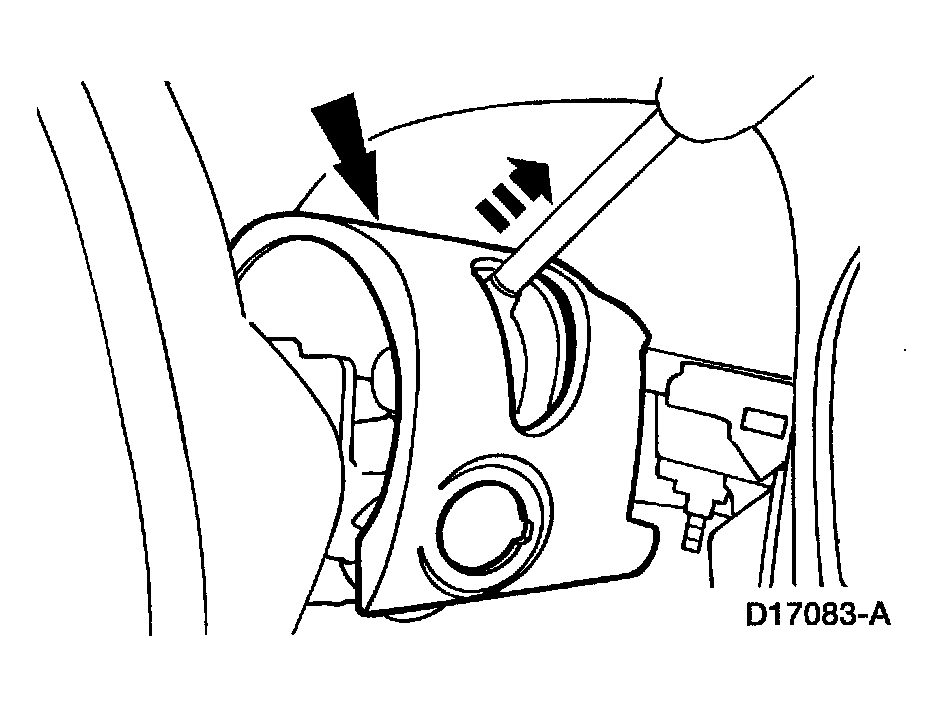

    Fig 1: Removing Steering Column Shroud
    G03909516Courtesy of FORD MOTOR CO.
  3. Remove the gearshift lever.
    1. Disconnect the electrical connector.
    2. Remove and discard the gearshift lever pin.
    3. Remove the gearshift lever.

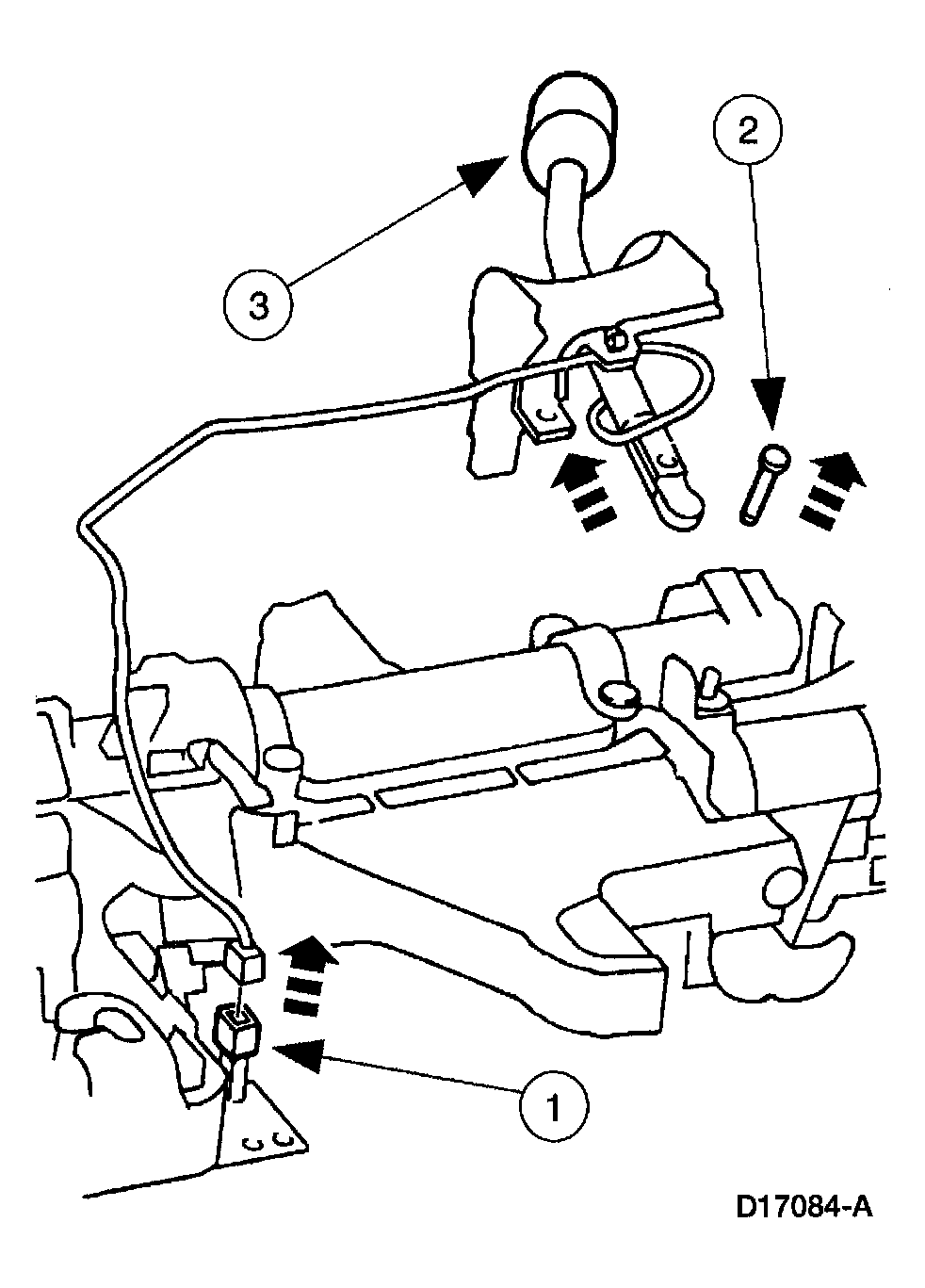

      4. Fig 2: Removing Gearshift Lever
      G03909517Courtesy of FORD MOTOR CO.
