Special Tool(s)

SPECIAL TOOL DESCRIPTION

G03920155
Engine Support Bar, Heavy Duty 303-F070
G03920073
Support Hook 303-F071
G03920056
Engine Support Bracket 303-639

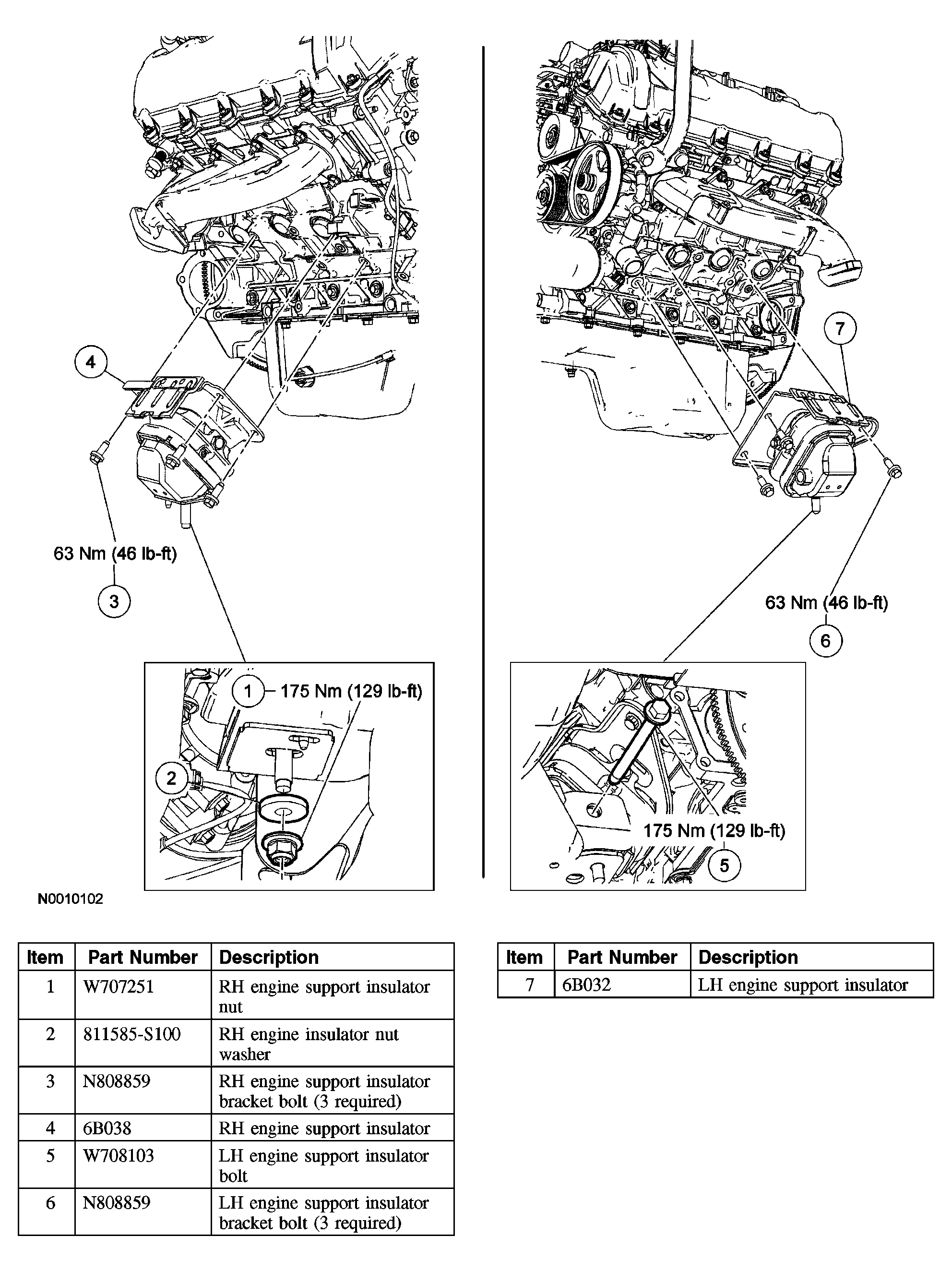

Fig 1: Identifying Engine Support Insulators Components
G03933611Courtesy of FORD MOTOR CO.
