Material
Cylinder Head: Material
MATERIAL SPECIFICATIONS
Item
Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil
XO-5W20-QSP (in Canada Motorcraft SAE 5W-20
Super Premium Motor Oil CXO-5W20-LSP12) or equivalent
WSS-M2C930-A
Motorcraft Metal Surface Prep ZC-31
-
Silicone Gasket Remover ZC-30
-

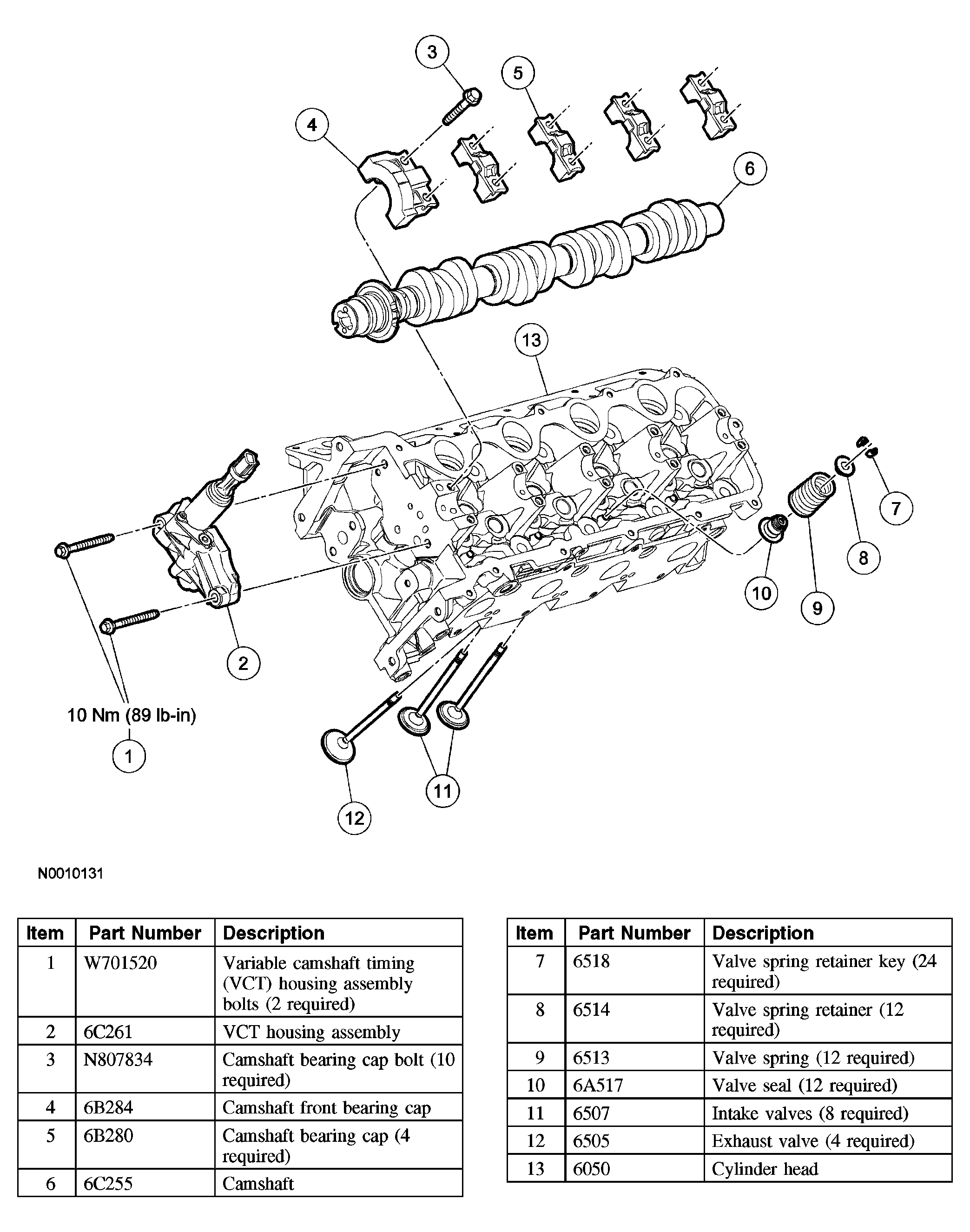

Fig 1: Exploded View Of Cylinder Head
Courtesy of FORD MOTOR CO.
