Forward/Overdrive Clutch Assembly - Assembly: Assembly

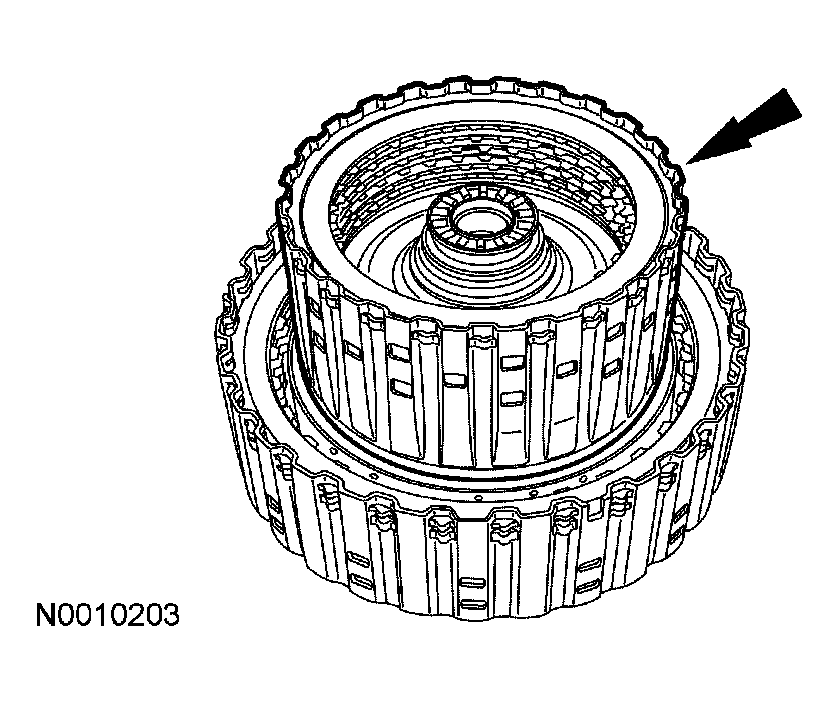

Install the overdrive clutch pack onto the forward clutch pack.

Fig 1: Installing Overdrive Clutch Pack
Courtesy of FORD MOTOR CO.

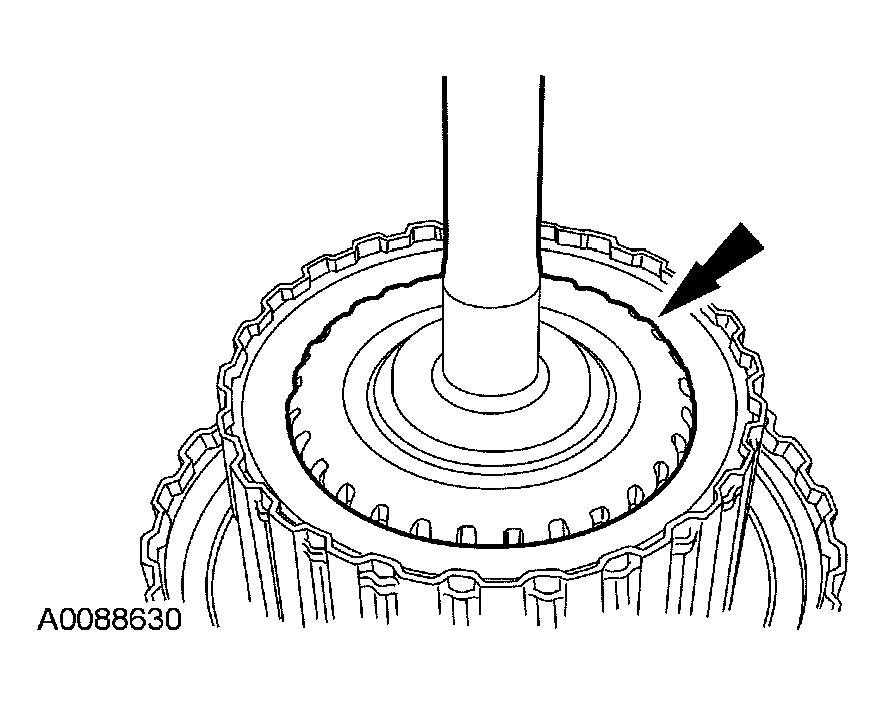

Install the intermediate shaft assembly.

Fig 2: Installing Intermediate Shaft Assembly
Courtesy of FORD MOTOR CO.

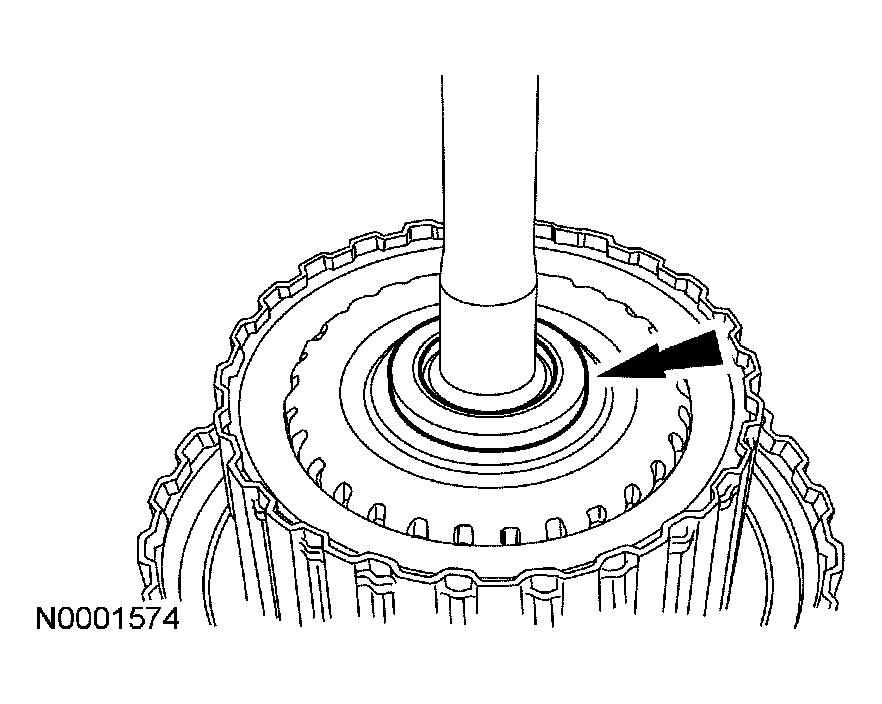

Install the intermediate shaft bearing.

Fig 3: Installing Intermediate Shaft Bearing
Courtesy of FORD MOTOR CO.

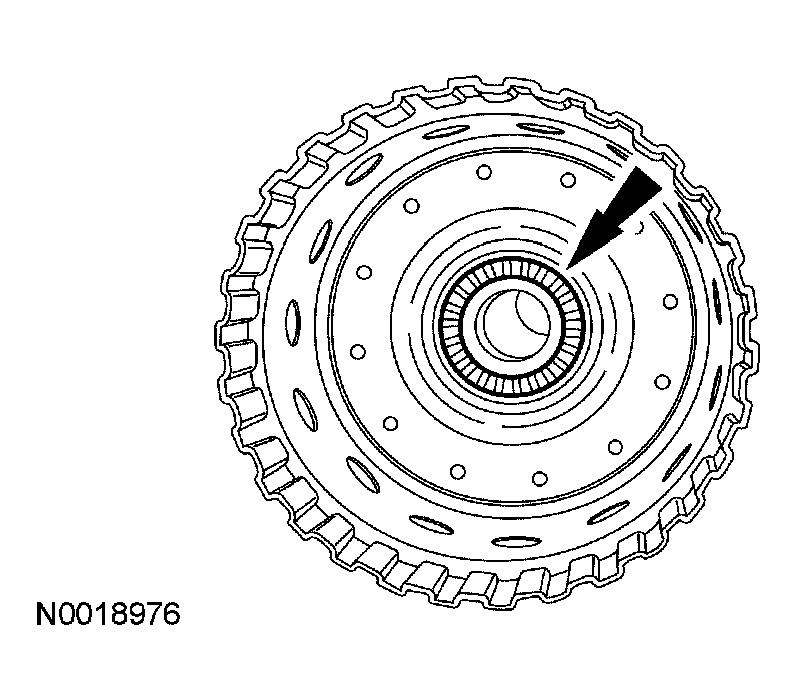

Install the needle bearing into the overdrive clutch drum.

Fig 4: Installing Needle Bearing Into Overdrive Clutch Drum
Courtesy of FORD MOTOR CO.
Install the overdrive clutch drum.

Fig 5: Installing Overdrive Clutch Drum
Courtesy of FORD MOTOR CO.

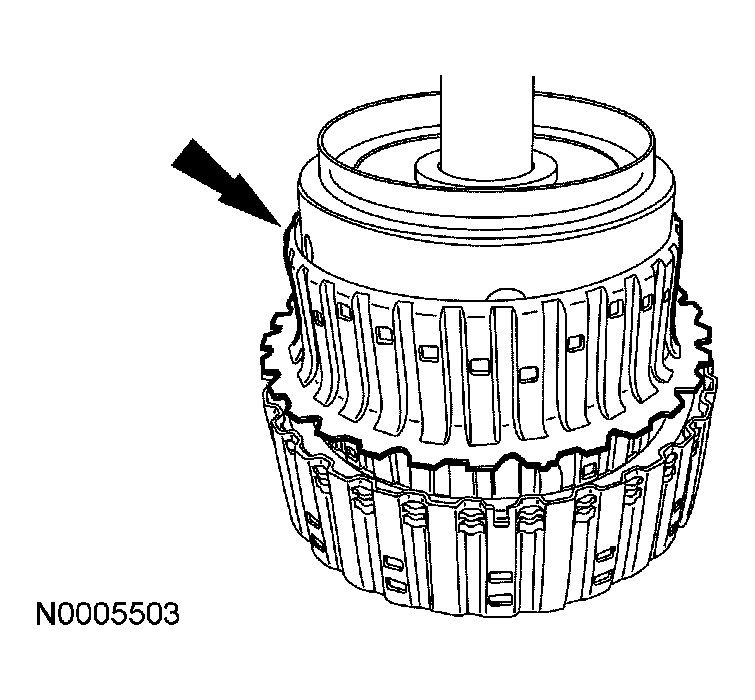

Install the direct clutch outer shell.

Fig 6: Installing Direct Clutch Outer Shell
Courtesy of FORD MOTOR CO.

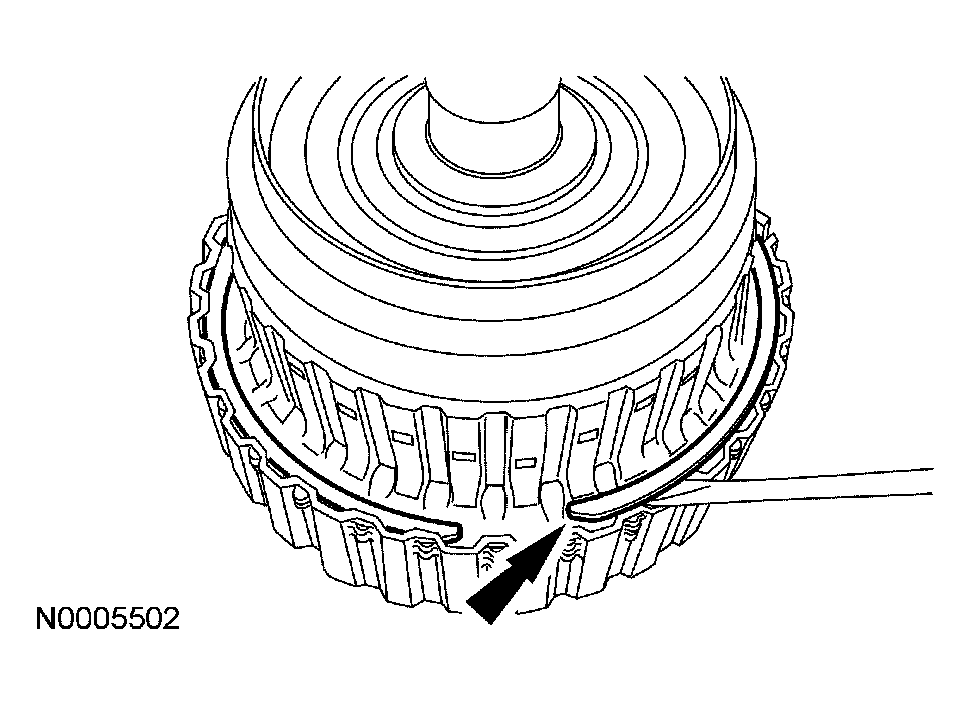

Install the direct clutch outer shell retaining ring.

Fig 7: Installing Direct Clutch Outer Shell Retaining Ring
Courtesy of FORD MOTOR CO.
