Multifunction Switch, Wiper/Washer Portion: Schematic

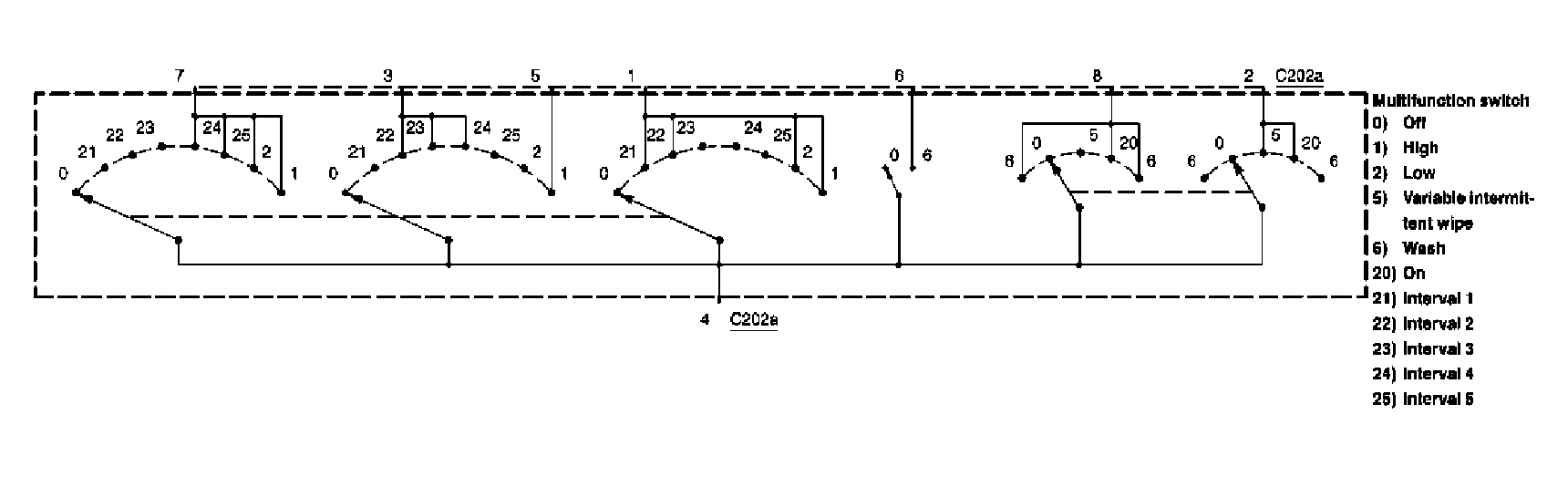

Fig 1: Multifunction Switch - Schematic (Wiper/Washer Portion)

G03993441

Courtesy of FORD MOTOR CO.
