Solenoid Body Assembly: Removal

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the transmission fluid pan drain plug and drain the transmission.
Disconnect the HO2S connector and remove the sensor wire retaining clip from the right side of the transmission pan rail.

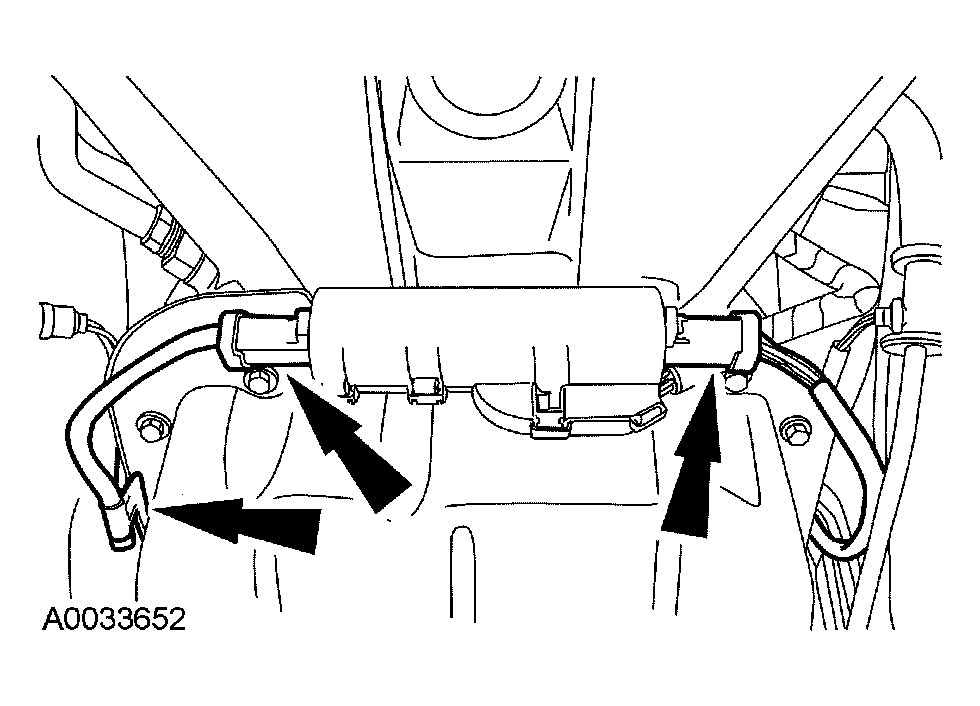

Fig 1: Locating HO2S Connectors & Retainer
Courtesy of FORD MOTOR CO.
Remove the HO2S connector from the front of the transmission pan rail.

Fig 2: Identifying HO2S Connector Retainer
Courtesy of FORD MOTOR CO.
Remove the transmission fluid pan screws, gasket and fluid pan.

Fig 3: Identifying Transmission Fluid Pan And Gasket
Courtesy of FORD MOTOR CO.

NOTE: Clean the area around the solenoid body connector to prevent contamination.

Fig 4: Locating Transmission Solenoid Electrical Connector

Courtesy of FORD MOTOR CO.

Disconnect the solenoid body harness electrical connector.
Remove the screws and the transmission fluid filter.

Fig 5: Identifying Transmission Fluid Filter Mounting Screws
Courtesy of FORD MOTOR CO.

CAUTION: Do not damage the solenoid body connector pins.

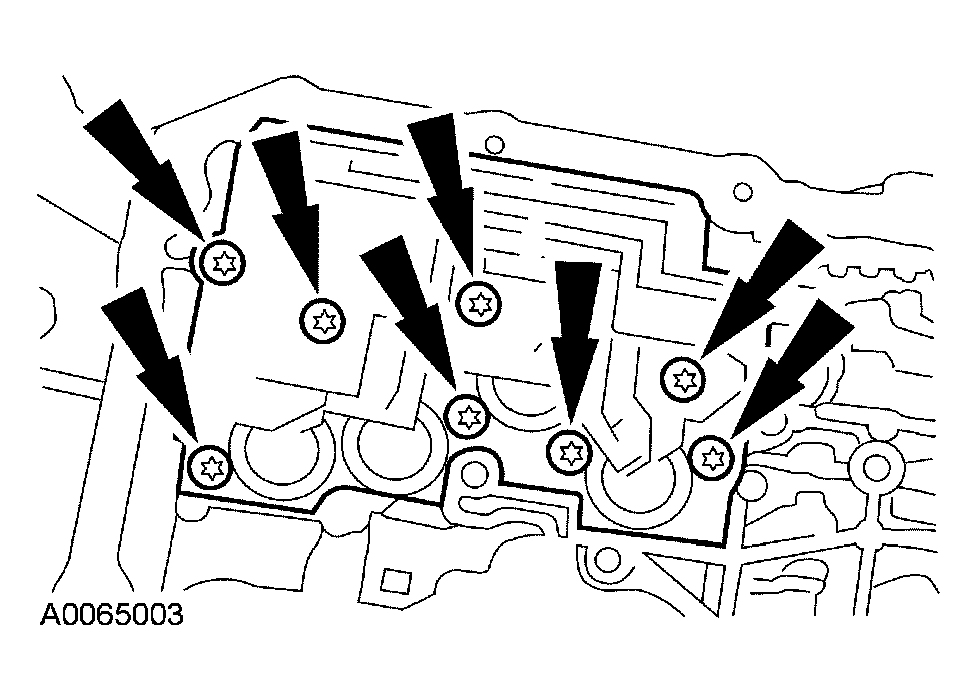

Fig 6: Removing Solenoid Body Boles

Courtesy of FORD MOTOR CO.

Remove the solenoid body boles and remove the solenoid body by lifting on the body and pushing the connector from the other side of the case.
