Suspension System: Toe

Positive Toe (Toe-in)

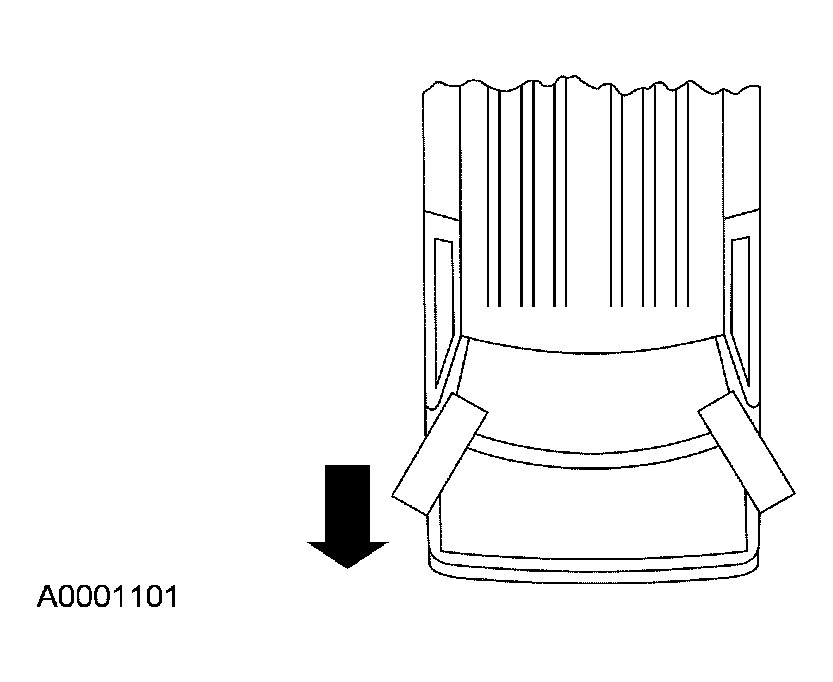

Fig 1: Identifying Positive Toe (Toe-In)

Courtesy of FORD MOTOR CO.

Negative Toe (Toe-Out)

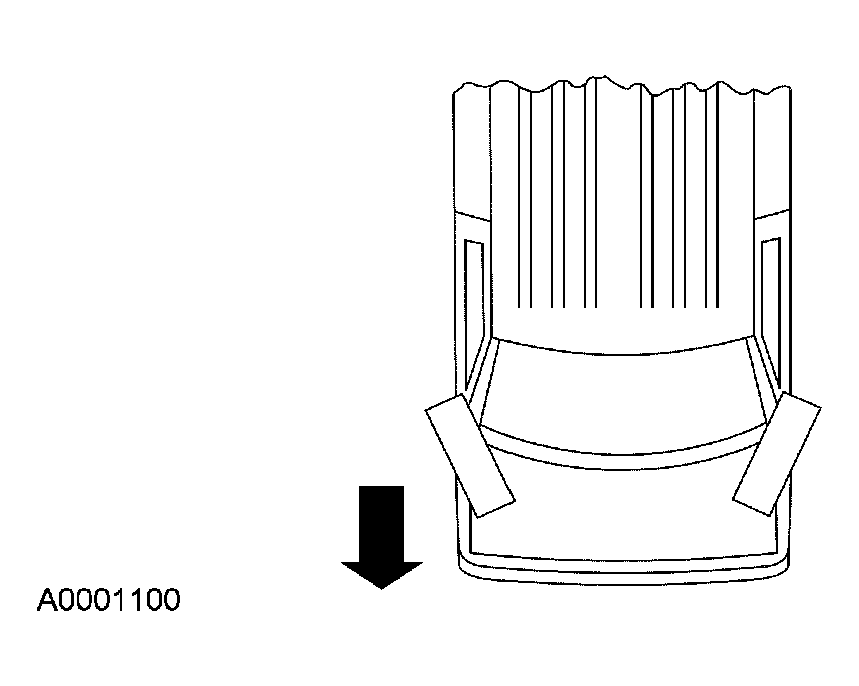

Fig 2: Identifying Negative Toe (Toe-Out)

Courtesy of FORD MOTOR CO.

The vehicle toe setting affects tire wear and directional stability.
