Front Safety Belt System

NOTE: Passenger side shown, driver side similar.

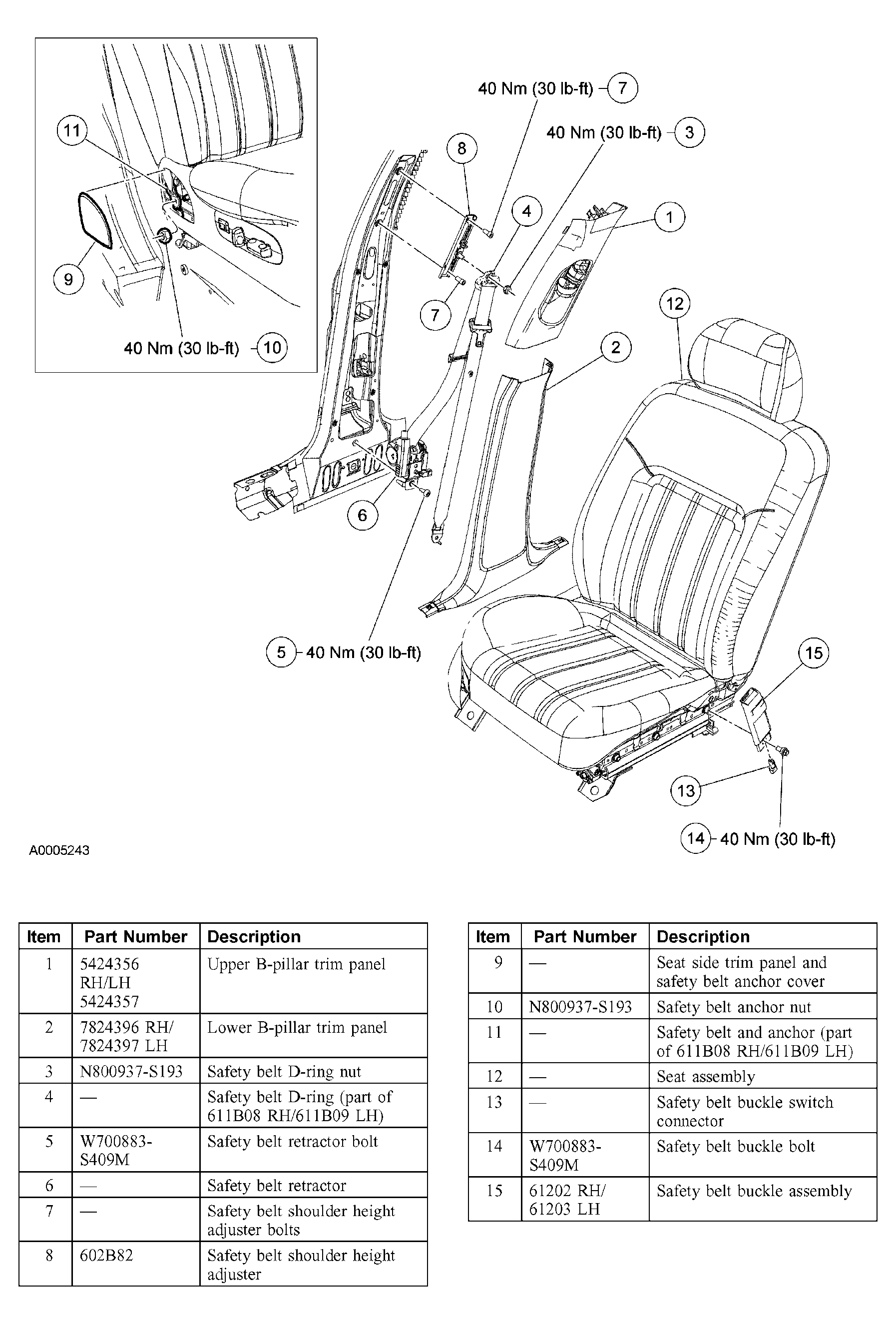

Fig 1: Exploded View Of Front Safety Belt System Component
G03999853Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
