Engine Ignition Components - Exploded View

LH Side

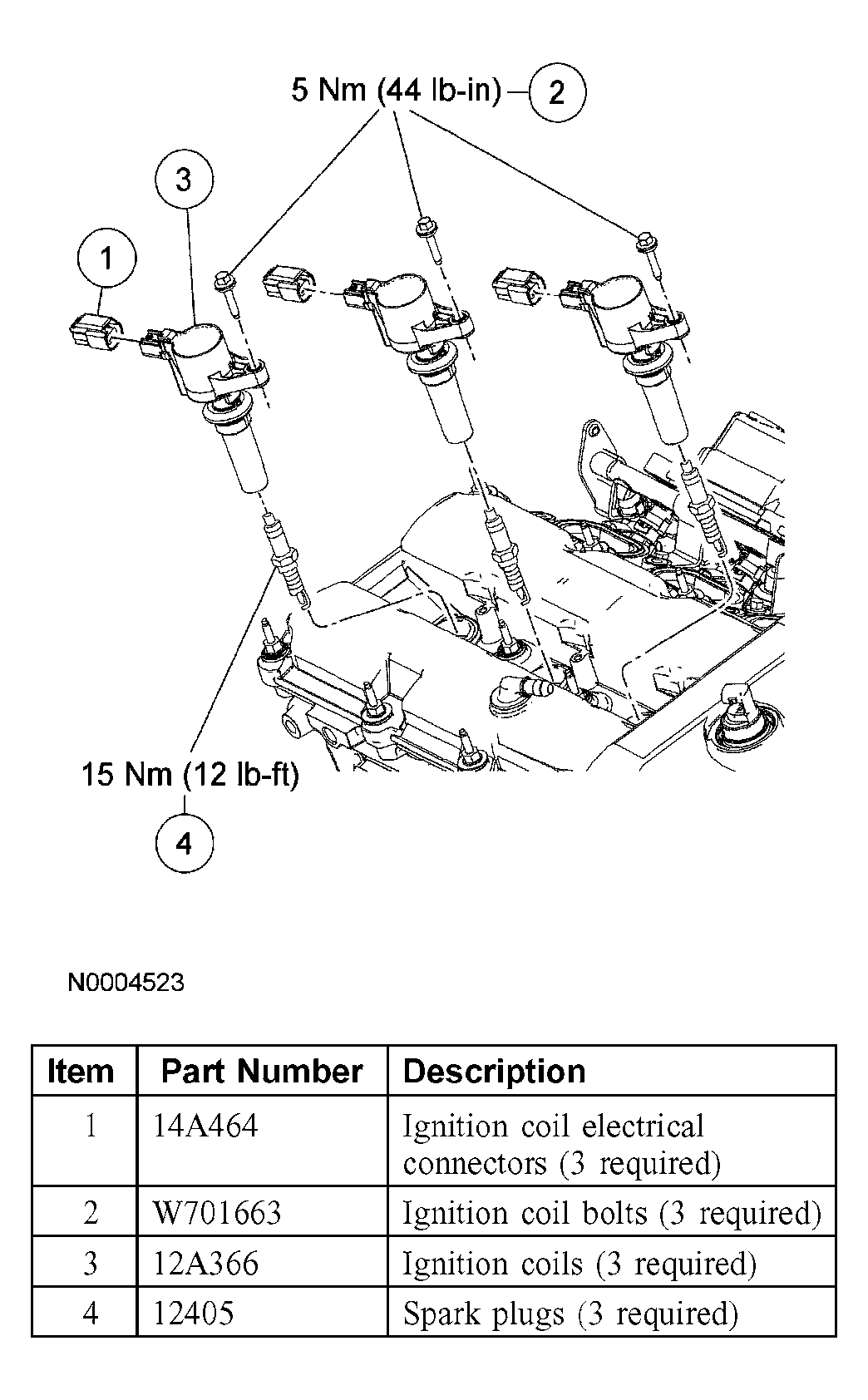

Fig 1: Exploded View Of Engine Ignition Components - LH Side

Courtesy of FORD MOTOR CO.

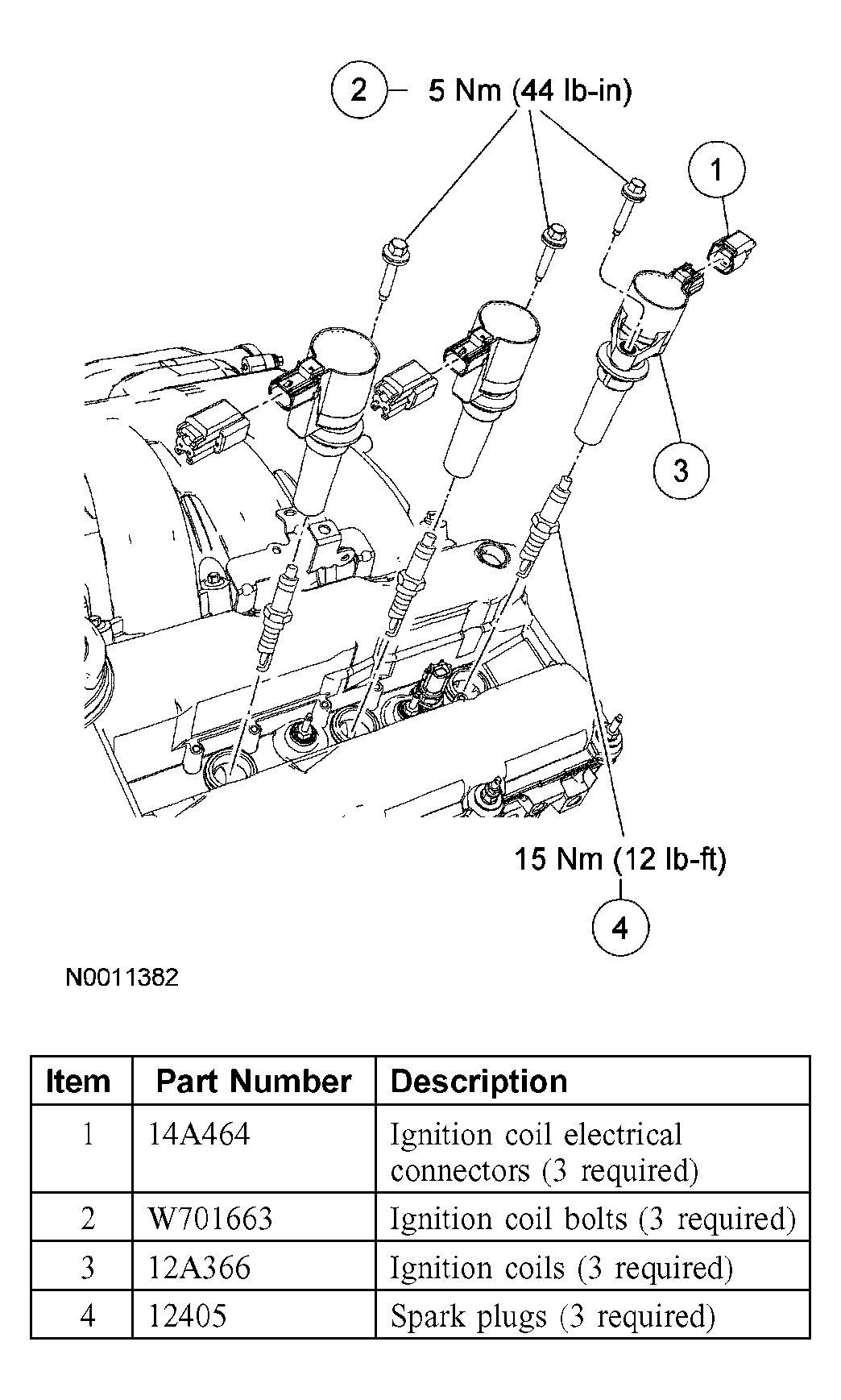

Fig 2: Exploded View Of Engine Ignition Components - RH Side

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the procedures in this article .
