Horn Switch: Notes

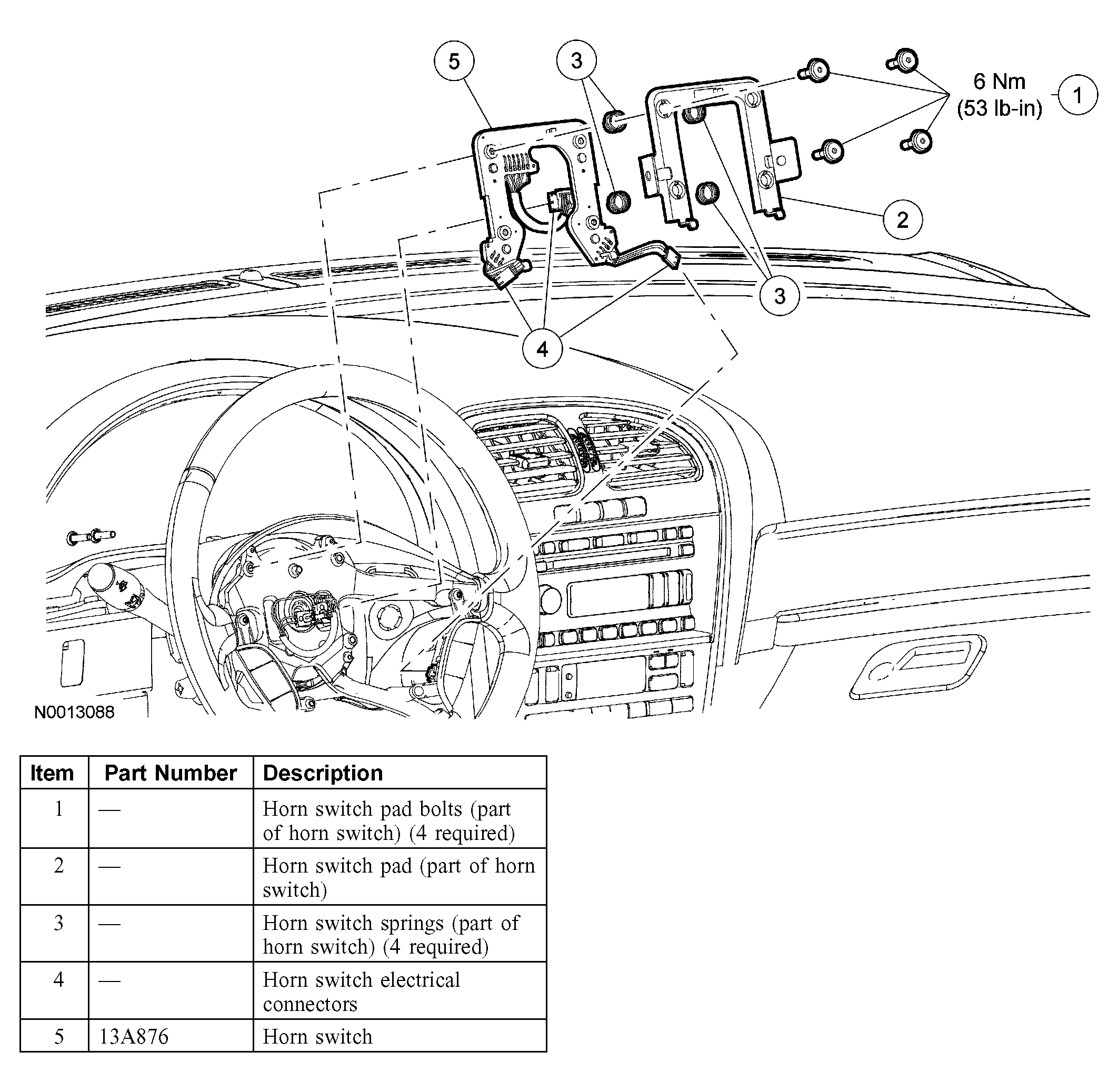

Fig 1: Removing/Installing Horn Switch Component Assembly

G03998363

Courtesy of FORD MOTOR CO.
