Heated Seat Switch - Rear: Notes

NOTE: Left side shown, right side similar.

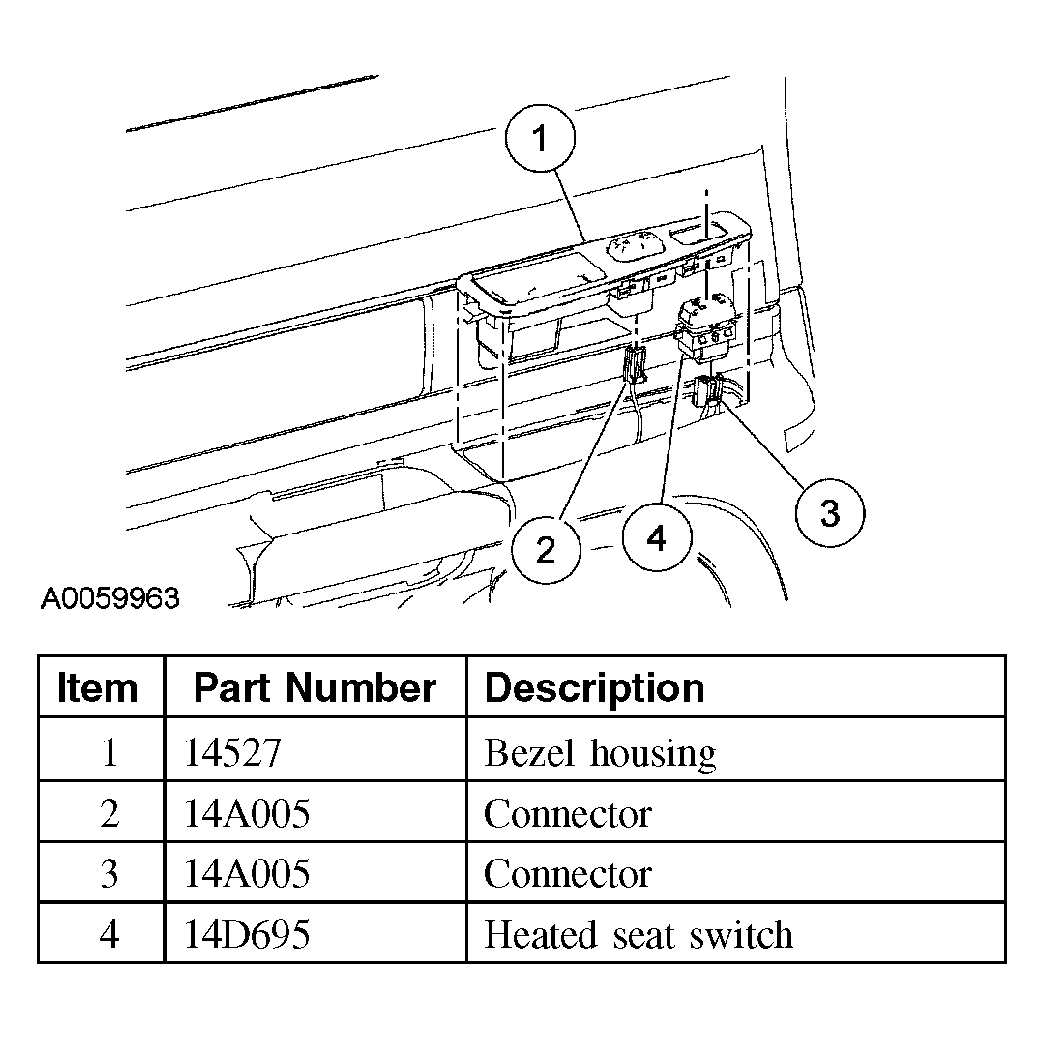

Fig 1: Installing Rear Heated Seat Switch

G03999569

Courtesy of FORD MOTOR CO.
