Home >> Lincoln >> 2005 >> LS 3.0 S >> Repair and Diagnosis >> Body & Frame >> Rear View Mirrors >> Removal And Installation >> Interior Rear View Mirror >> Notes

Interior Rear View Mirror: Notes

INTERIOR REAR VIEW MIRROR SPECIAL TOOL SPECIFICATION

G03911308
 Installer, Rear View Mirror 501-025 (T94P-17700-AH)
INTERIOR REAR VIEW MIRROR MATERIAL SPECIFICATION

Item Specification
Rear View Mirror Adhesive TA-17 -

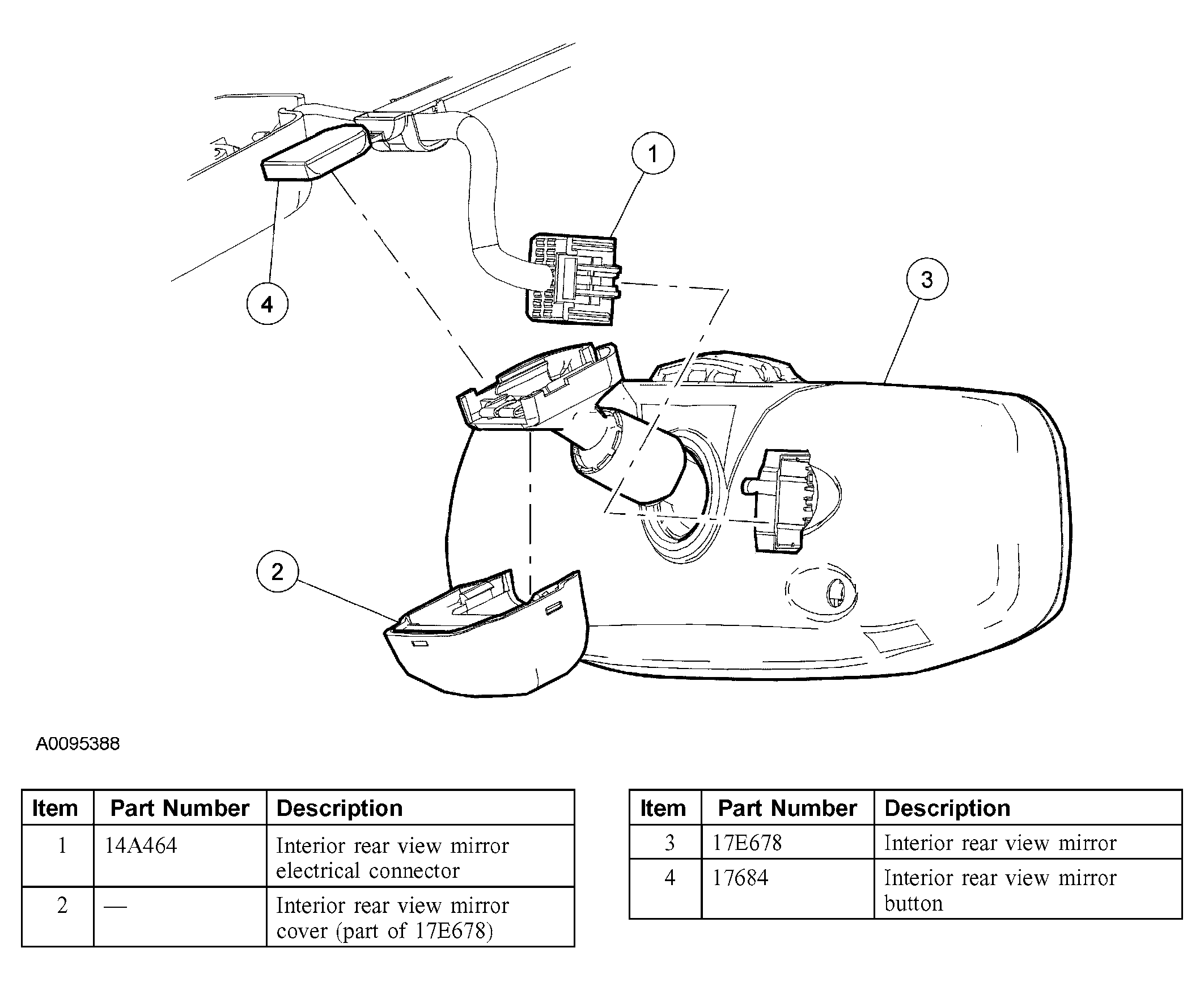

Fig 1: Exploded View Of Interior Rear View Mirror Component
G03999330Courtesy of FORD MOTOR CO.
