Selector Lever Knob: Removal

Remove the transmission selector lever. For additional information, refer to TRANSMISSION SELECTOR LEVER .
Using a small screwdriver, carefully lift the front of the knob bezel.
- Do not bend the bezel.

  Fig 1: Lifting Front Of Knob Bezel Using A Small Screwdriver
  Courtesy of FORD MOTOR CO.
Pull down on the knob shroud and boot. Remove the knob locating screw.

Fig 2: Removing Knob Locating Screw
Courtesy of FORD MOTOR CO.
Carefully remove the horseshoe clip from the rear of the knob.

Fig 3: Removing Horseshoe Clip From Rear Of Knob
Courtesy of FORD MOTOR CO.
With the horseshoe clip removed, lift up and remove the knob bezel and shift knob.

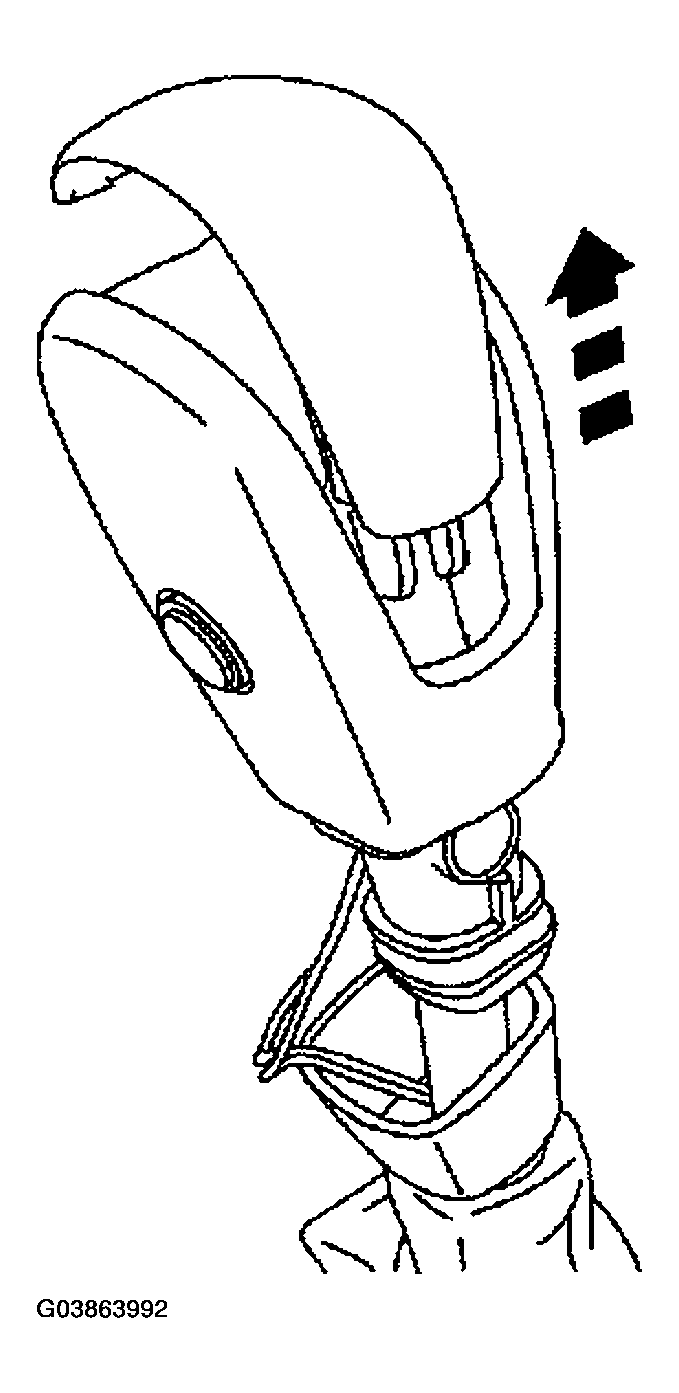

Fig 4: Removing Knob Bezel And Shift Knob
Courtesy of FORD MOTOR CO.

NOTE: The spring may dislodge from the shift rod pocket. Locate and retain the spring for installation.

Fig 5: Removing Spring From Top Of Shift Rod

Courtesy of FORD MOTOR CO.

Remove the spring from the top of the shift rod.
Remove the electrical connector from the wiper switch pocket and disconnect the connector.

Fig 6: Removing Electrical Connector From Wiper Switch Pocket
Courtesy of FORD MOTOR CO.
Remove the shift knob assembly.
