Item 8: Connector Interlock Disassembly Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the coil wire pin from the electrical connector.
    1. Remove the connector interlock.
    2. Remove the coil wire pin.
      • Use electrical connector pin extractor tool.

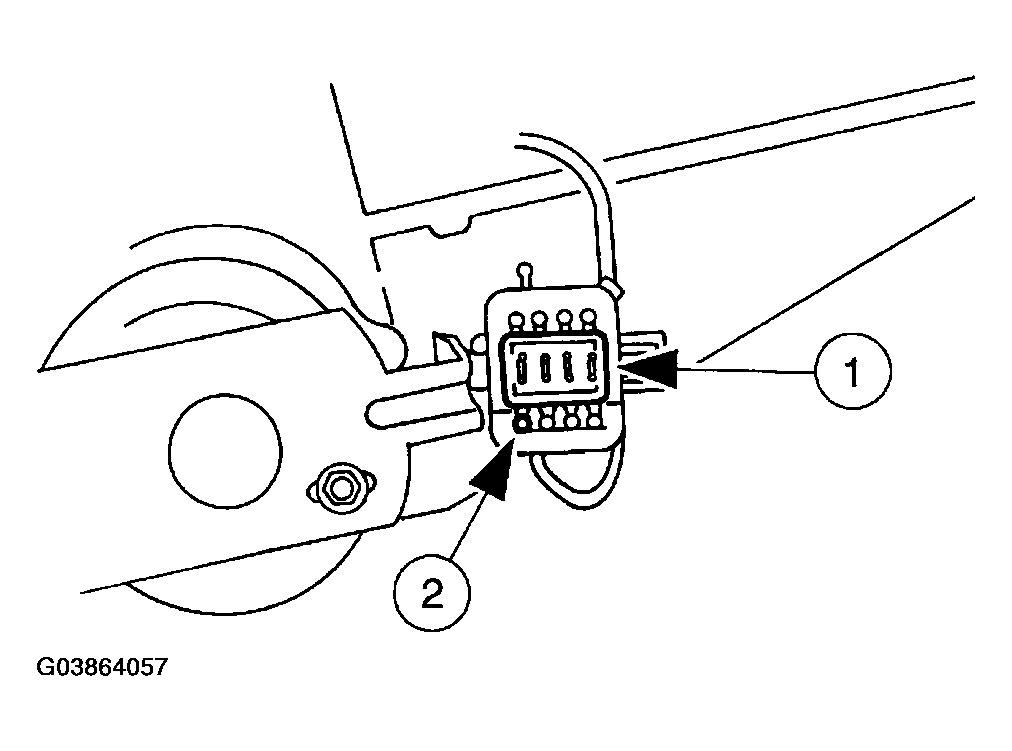

        Fig 1: Removing Coil Wire Pin From Electrical Connector
        G03864057Courtesy of FORD MOTOR CO.
