Item 28: Drive Chain Disassembly Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the drive chain, driven sprocket and drive sprocket as an assembly.

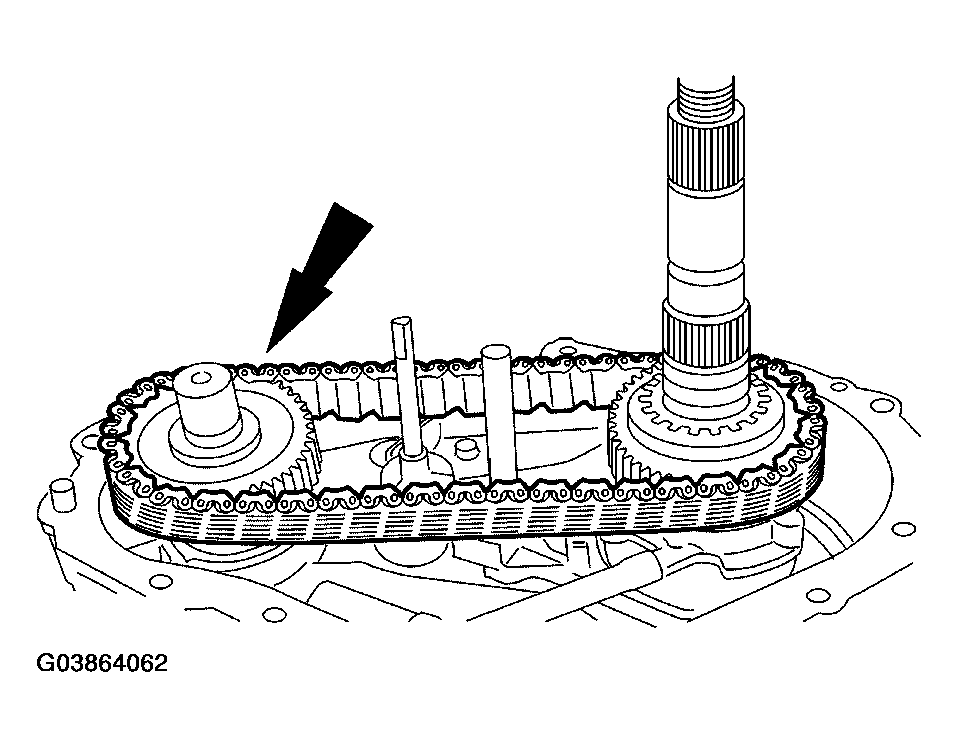

    Fig 1: Removing Drive Chain, Driven Sprocket And Drive Sprocket As An Assembly
    G03864062Courtesy of FORD MOTOR CO.
