Item 1: Output Flange Nut Assembly Note

WARNING: This page is about a different variant/trim than selected.
  1. Using the special tool to hold the rear output flange, install the nut.

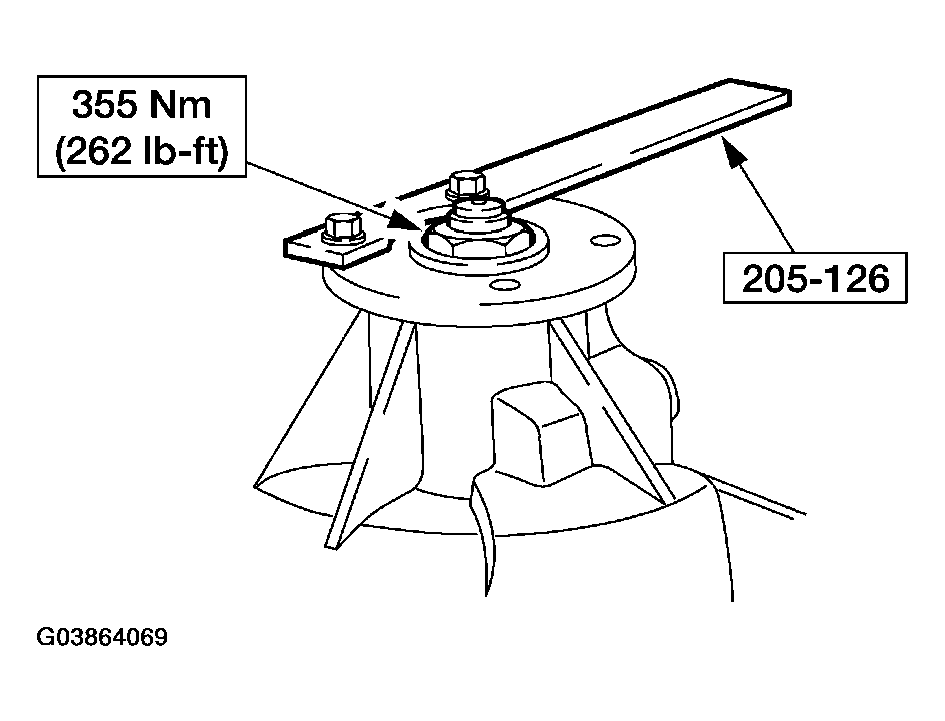

    Fig 1: Identifying Output Flange Nut Using Special Tool
    G03864069Courtesy of FORD MOTOR CO.
