Valve Cover - LH: Installation

NOTE: If the valve cover is not secured within 4 minutes, the sealant must be removed and the sealing area cleaned with metal surface cleaner. Allow to dry until there is no sign of wetness, or 4 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

Install the LH valve cover.
- To install, apply a minimum of 8-mm (0.32-in) diameter drop of sealant to the front cover gasket intersection.

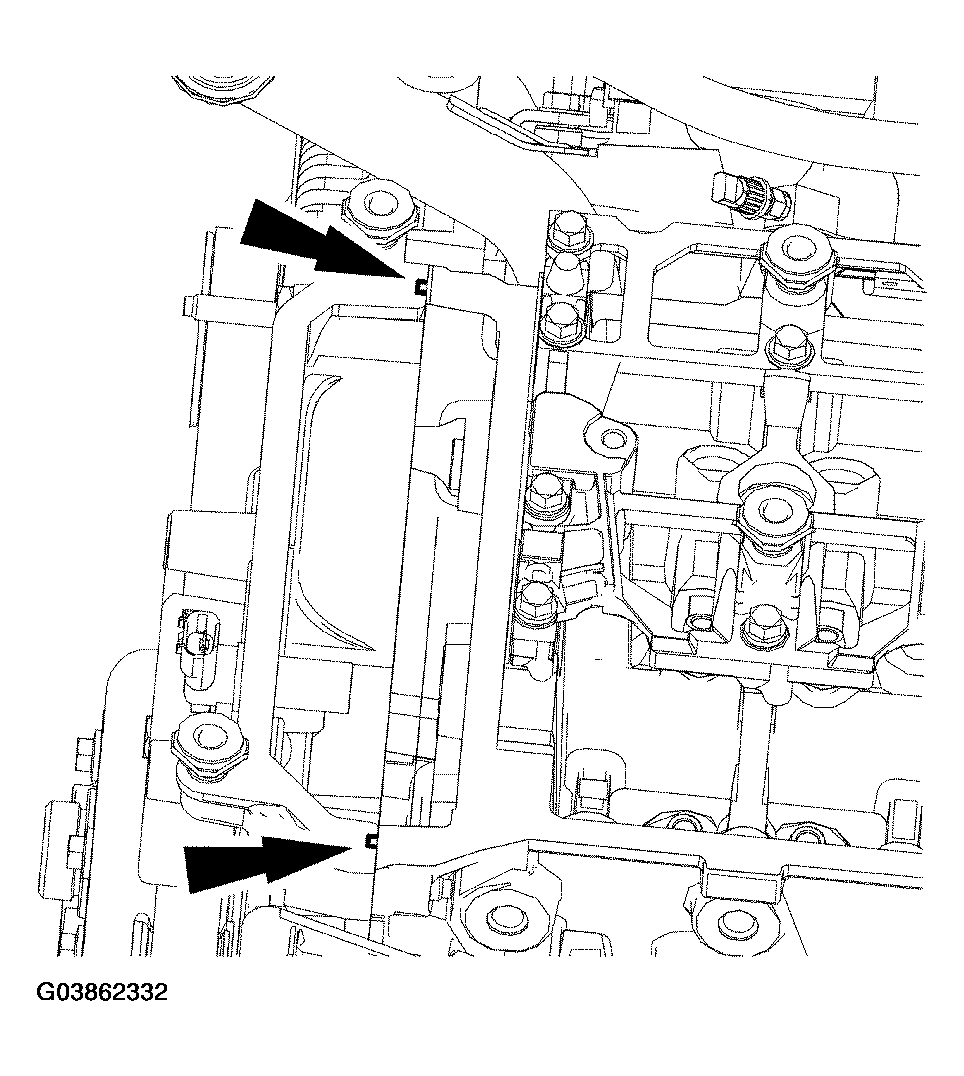

  Fig 1: Installing LH Valve Cover
  Courtesy of FORD MOTOR CO.
Install the 6 valve cover bolts and 4 studs.
- To install, tighten to 10 Nm (89 lb-in) in the sequence shown.

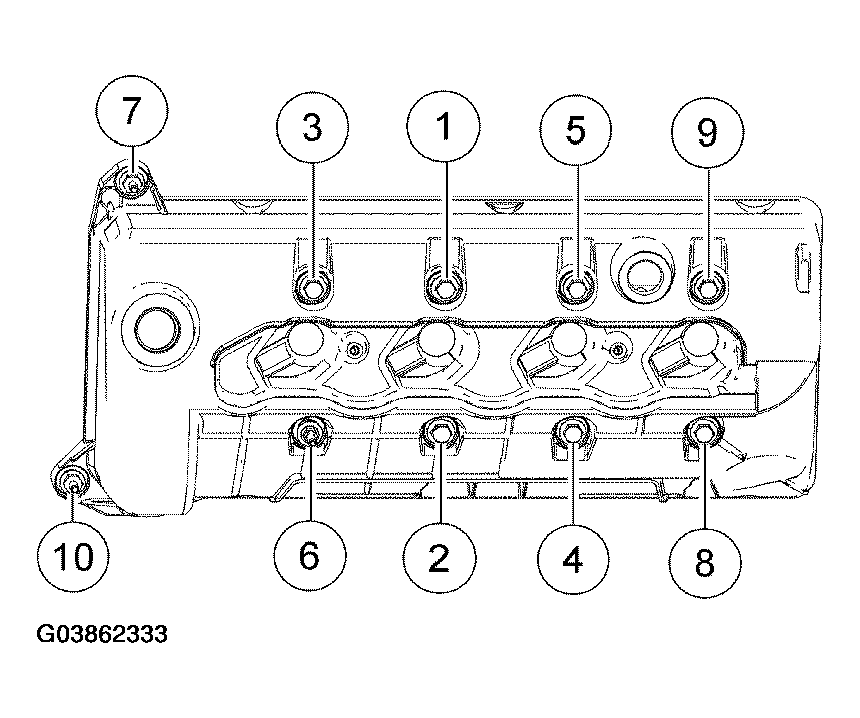

  Fig 2: Installing Valve Cover Bolts And Studs In Sequence
  Courtesy of FORD MOTOR CO.
Install the EVAP purge valve and connect the electrical connector.

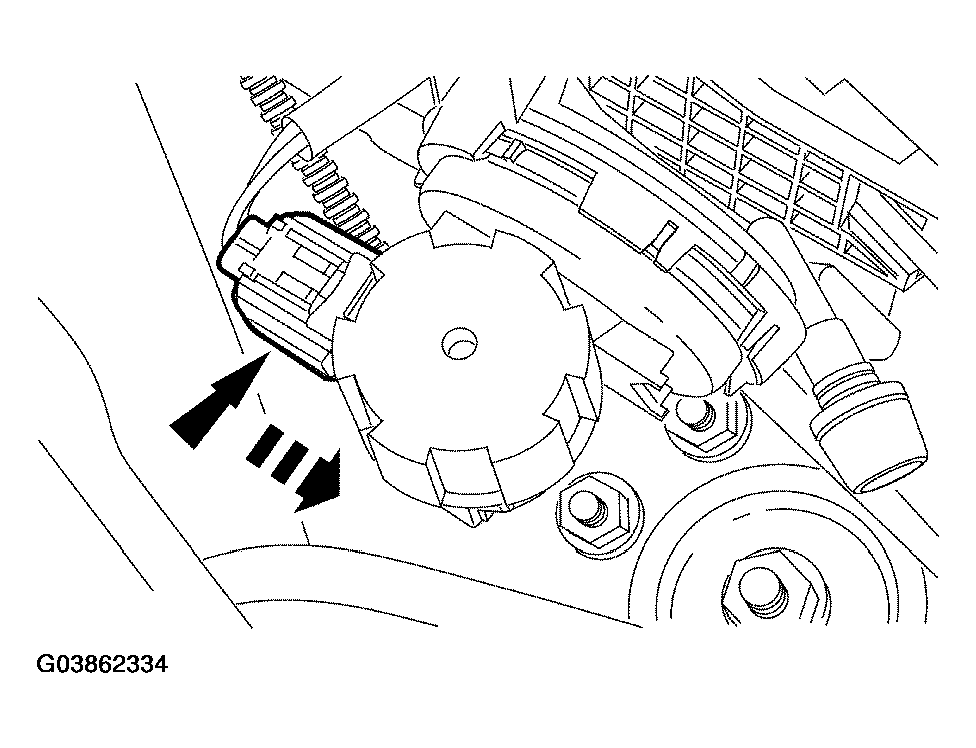

Fig 3: Installing EVAP Purge Valve And Connect Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the 2 wiring harness retainers to the studs.

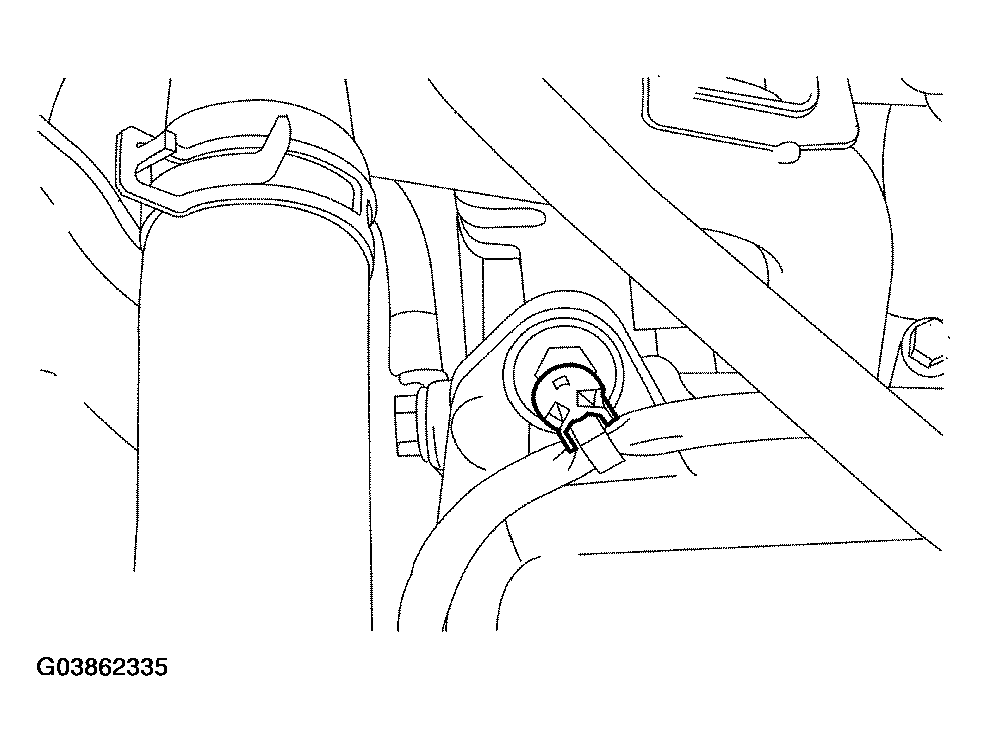

Fig 4: Connecting Wiring Harness Retainers Studs
Courtesy of FORD MOTOR CO.
Connect the positive crankcase ventilation closure tube to the valve cover.
Position the oil level indicator tube and install the bolt.
- To install, tighten to 10 Nm (89 lb-in).
Install the LH ignition coils. For additional information, refer to ENGINE IGNITION .
