Throttle Body
WARNING:
Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and can be ignited. Failure to follow these instructions may result in personal injury.
CAUTION:
Throttle body bore and plate area have a special coating and cannot be cleaned, or possible damage to the throttle body can occur.

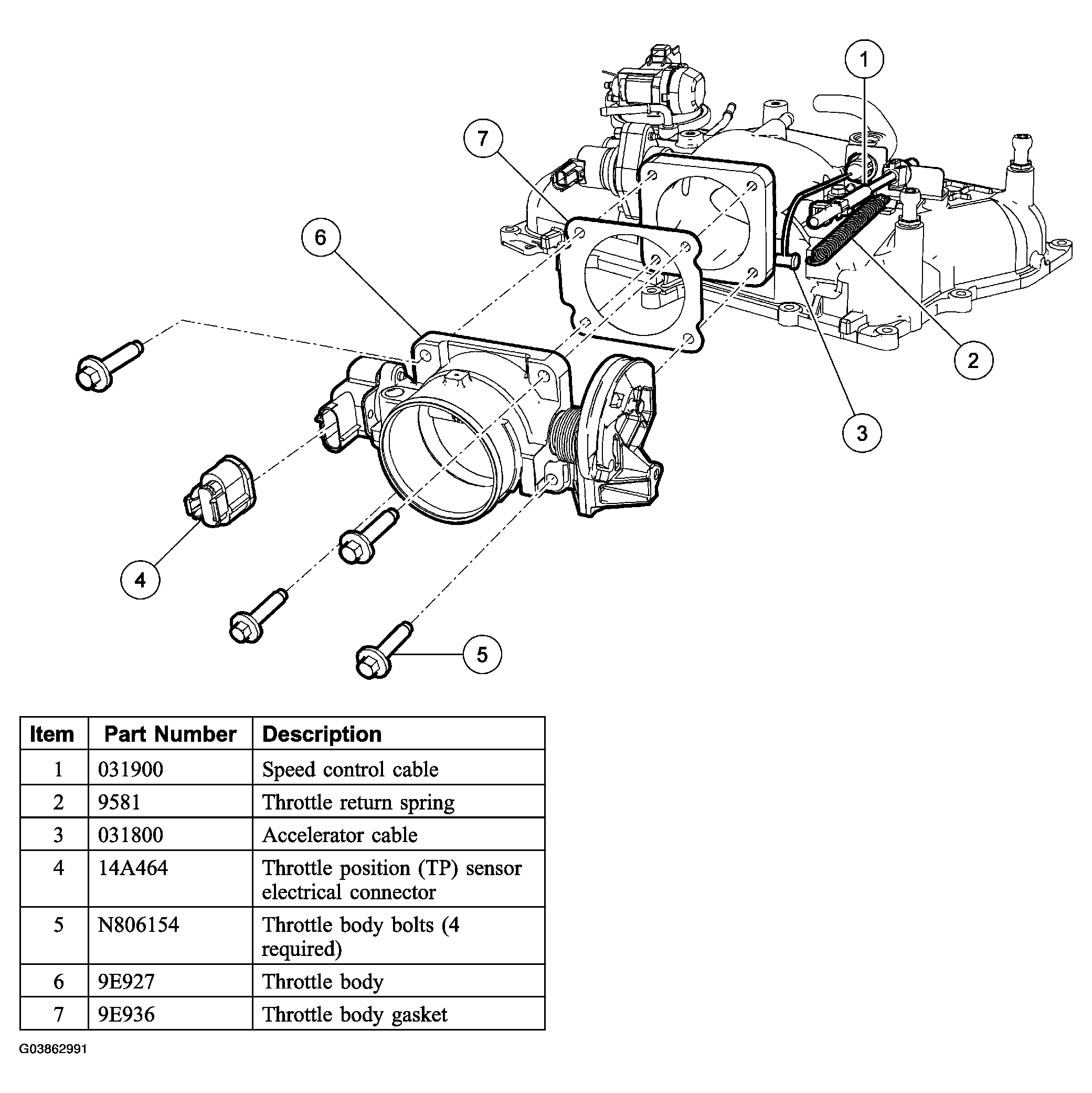

- Remove the air cleaner outlet tube. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
- Disconnect the speed control cable from the throttle body.
- Disconnect the accelerator cable from the throttle body.
- Disconnect the throttle return spring from the throttle body.
- Disconnect the throttle position (TP) sensor electrical connector.
- Remove the 4 throttle body bolts.
- To install, tighten to 10 Nm (89 lb-in), then rotate an additional 90 degrees.
- Remove the throttle body.
- Inspect and clean the sealing surfaces before installation.
- To install, reverse the removal procedure.
