Fuel Pulse Damper: Notes

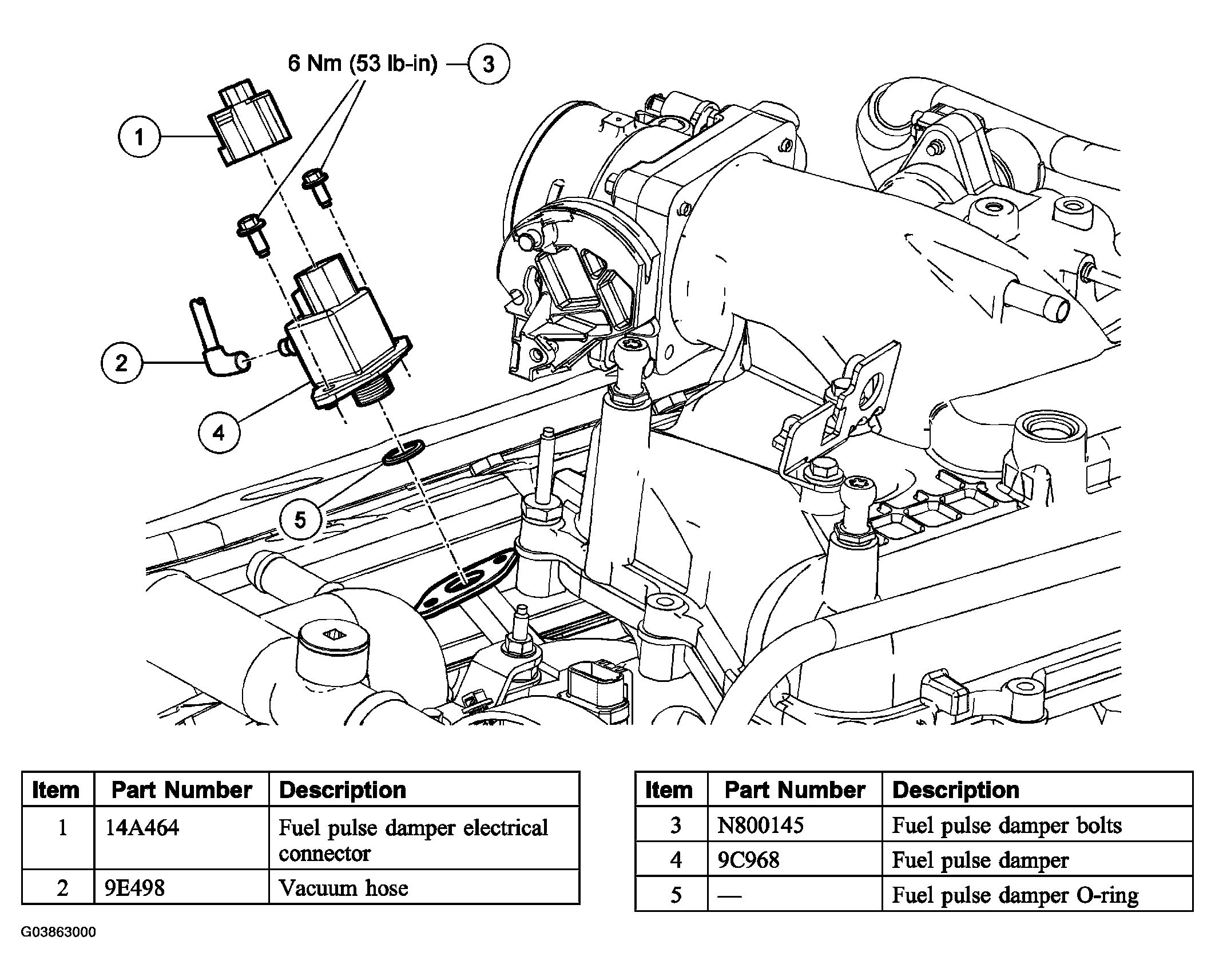

Fig 1: Fuel Pulse Damper Component Locations (Torque Specs)

G03863000

Courtesy of FORD MOTOR CO.
