Valve Tappet Inspection

  1. Inspect the hydraulic valve tappet and roller for damage. If any damage is found, inspect the camshaft lobes and valves for damage.

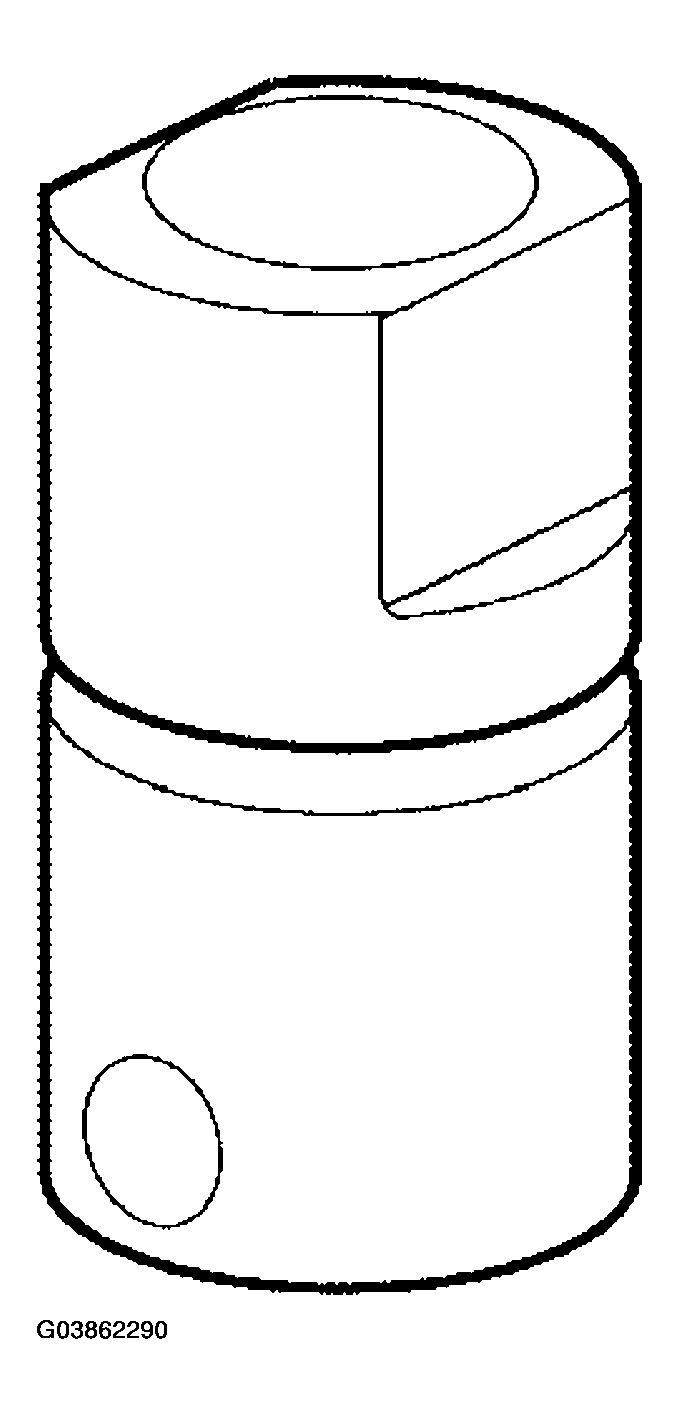

    Fig 1: Inspecting Hydraulic Valve Tappet - Push Rod Engines
    G03862290Courtesy of FORD MOTOR CO.
    Fig 2: Inspecting Hydraulic Valve Tappet - OHC Engines
    G03862291Courtesy of FORD MOTOR CO.
