Roller Follower Inspection

  1. Inspect the roller for flat spots or scoring. If any damage is found, inspect the camshaft lobes and valve tappet for damage.
    Fig 1: Inspecting Roller For Flat Spots Or Scoring - Push Rod Engines
    G03862288Courtesy of FORD MOTOR CO.

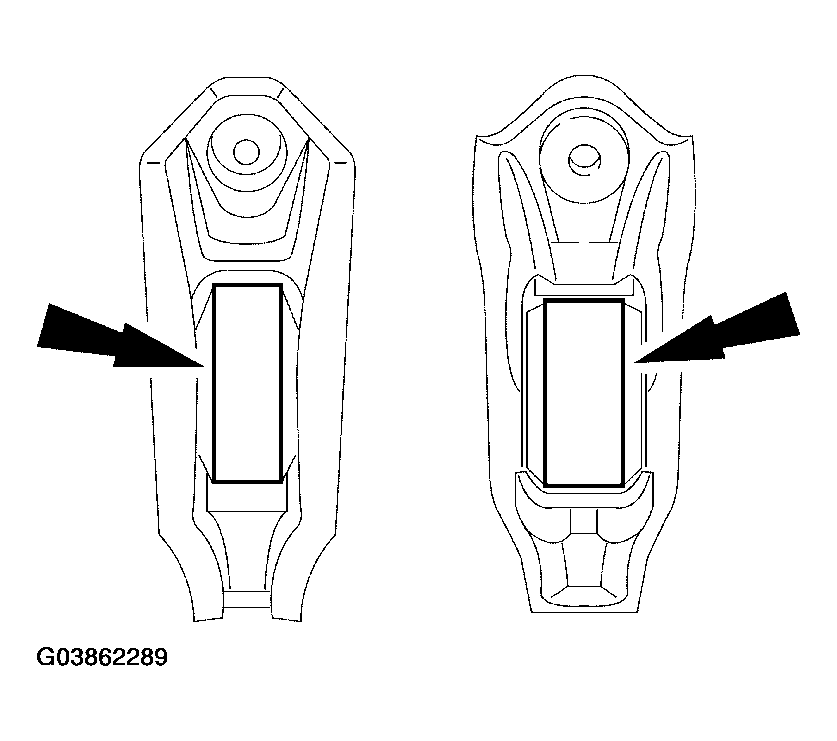

    Fig 2: Inspecting Roller For Flat Spots Or Scoring - OHC Engines
    G03862289Courtesy of FORD MOTOR CO.
