Crankshaft Runout

SPECIAL TOOL(S) CHART

Tool No.	Illustration	Description
ST1214-A	Courtesy of FORD MOTOR CO.	Dial Indicator with Bracketry 100-002 (TOOL-4201-C) or equivalent

NOTE: Crankshaft main bearing journals must be within specifications before checking runout.

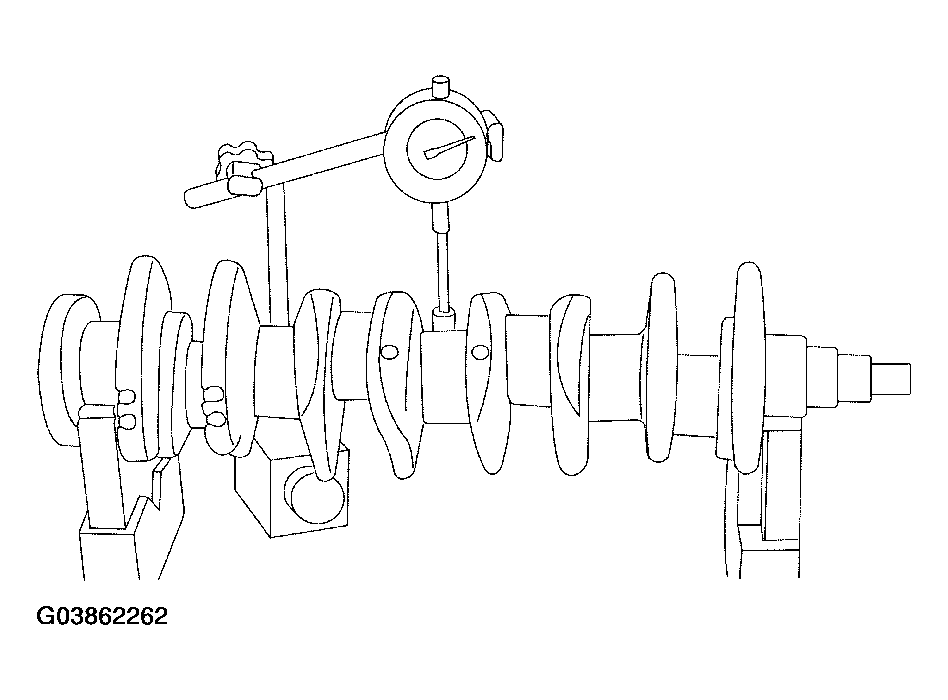

Fig 1: Measuring Crankshaft Runout

Courtesy of FORD MOTOR CO.

Use the special tool to measure the crankshaft runout.
- For additional information, refer to SPECIFICATIONS in the appropriate article in ENGINE.
- Rotate the crankshaft and subtract the lowest dial indicator reading from the highest dial indicator reading to figure the crankshaft runout. If it is out of specification, install new components as necessary. Refer to the appropriate article in ENGINE for the procedure.
