Cooling System Components - Exploded View
Cooling System Components - Exploded View

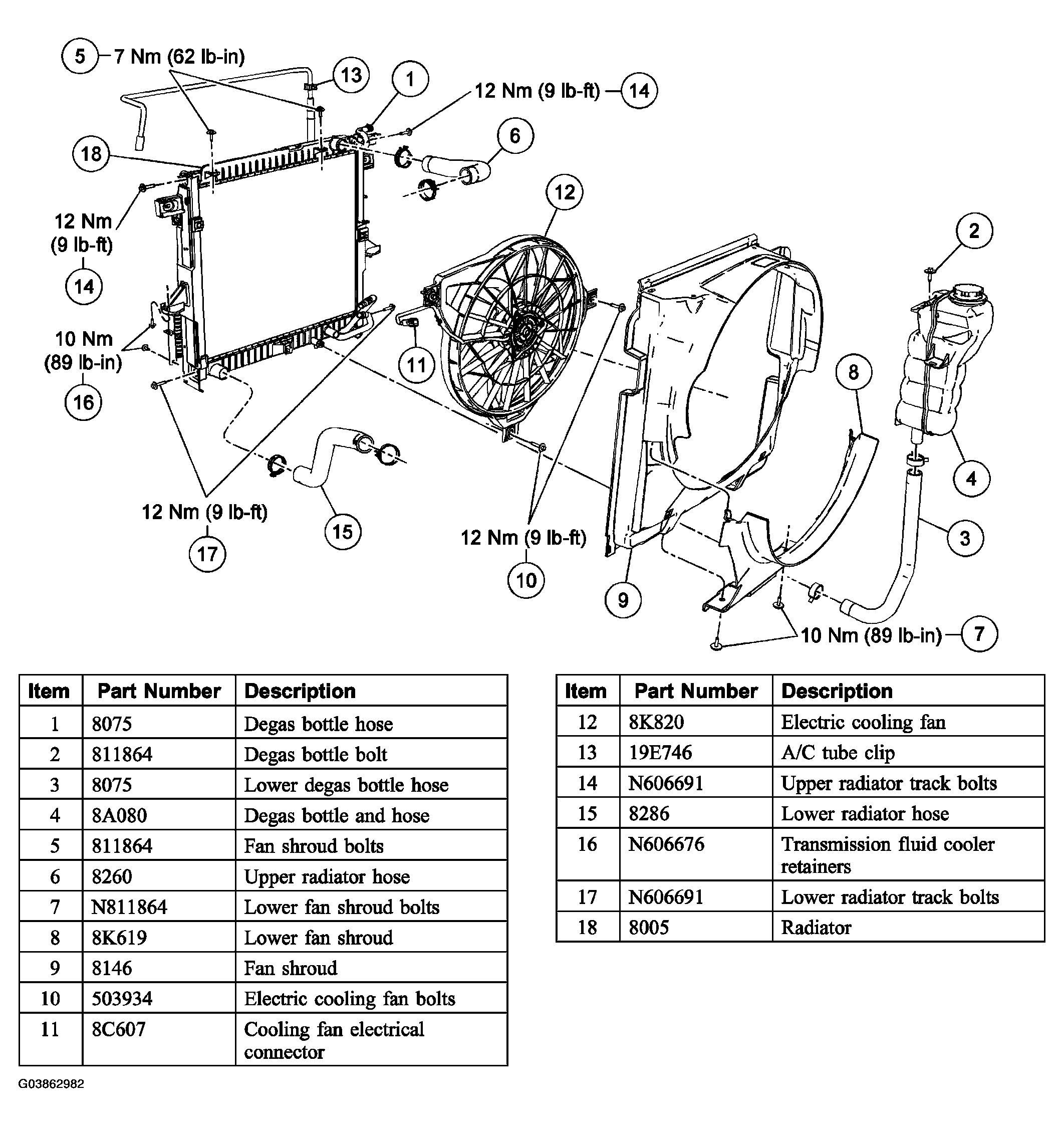

Fig 1: Exploded View Of Cooling System Components (Torque Specs)
Courtesy of FORD MOTOR CO.
For additional information, refer to the procedures in this article.
Courtesy of FORD MOTOR CO.
