Exhaust Gas Recirculation (EGR) System Components - Exploded View

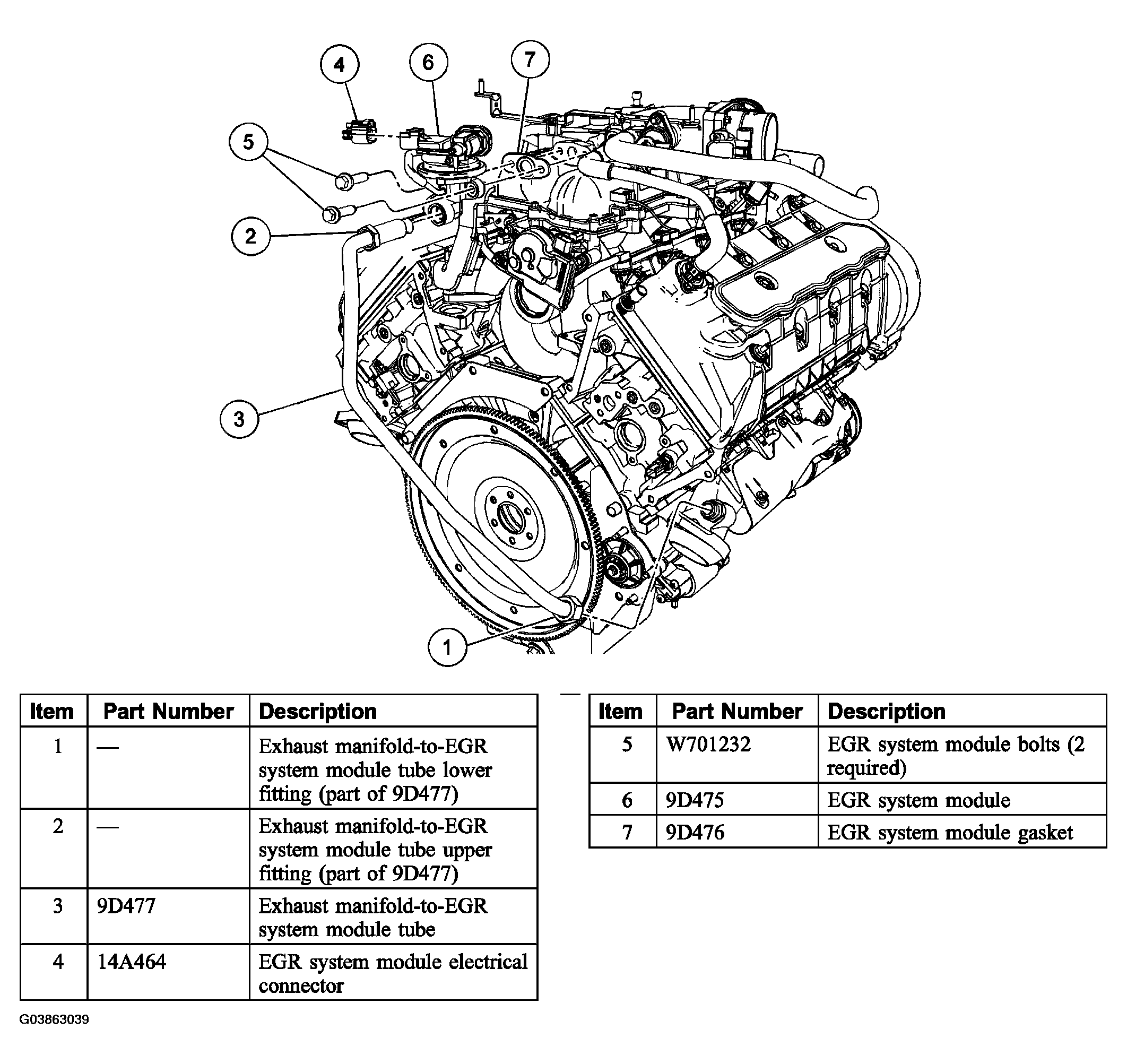

Fig 1: Identifying Exhaust Gas Recirculation (EGR) System Components

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the procedures in this article.
