Removal and Installation

  1. Open the compartment door (if equipped) to access and remove the screw.

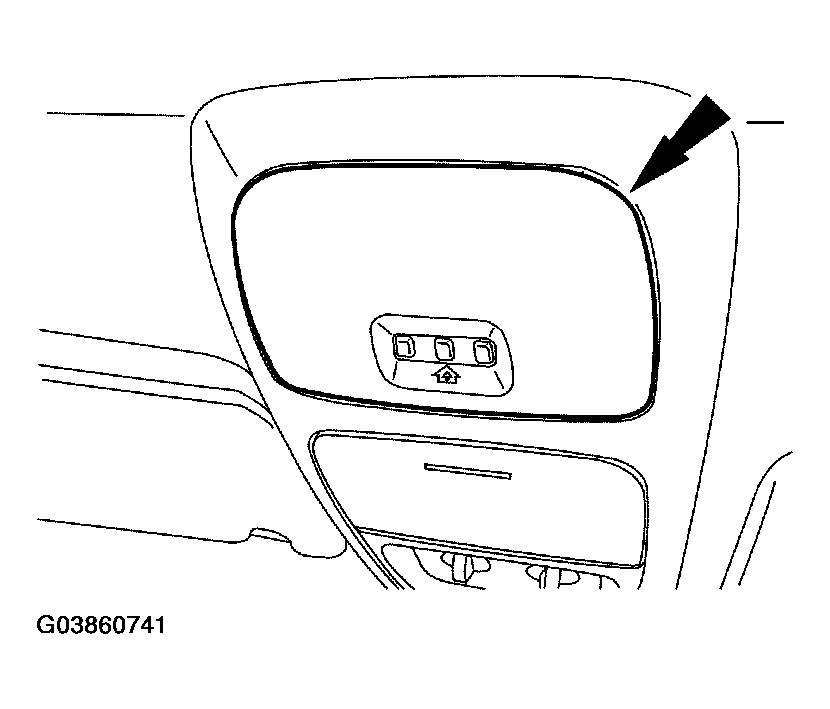

    Fig 1: Identifying Compartment Door
    G03860741Courtesy of FORD MOTOR CO.
  2. Disconnect the electrical connector.
  3. Remove the overhead console.
  4. To install, reverse the removal procedure.
