Floor Console - Front: Notes

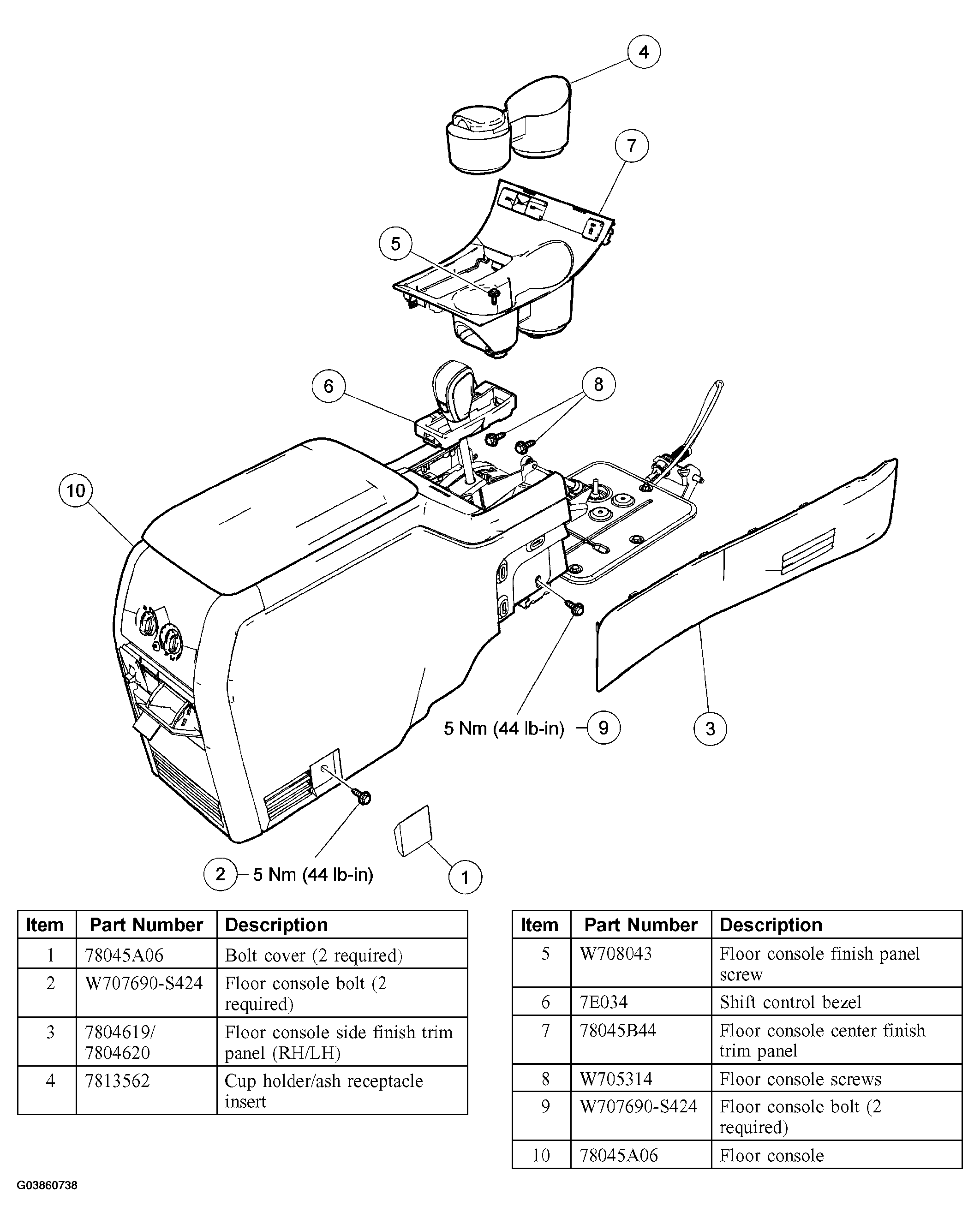

Fig 1: Identifying Front Floor Console Components

G03860738

Courtesy of FORD MOTOR CO.
