Home >> Lincoln >> 2005 >> Aviator AWD >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Control >> Removal And Installation >> Hydraulic Control Unit (HCU) >> Material

Hydraulic Control Unit (HCU): Material

MATERIAL CHART

Item Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 (Canada CPM-1) ESA-M6C25-A

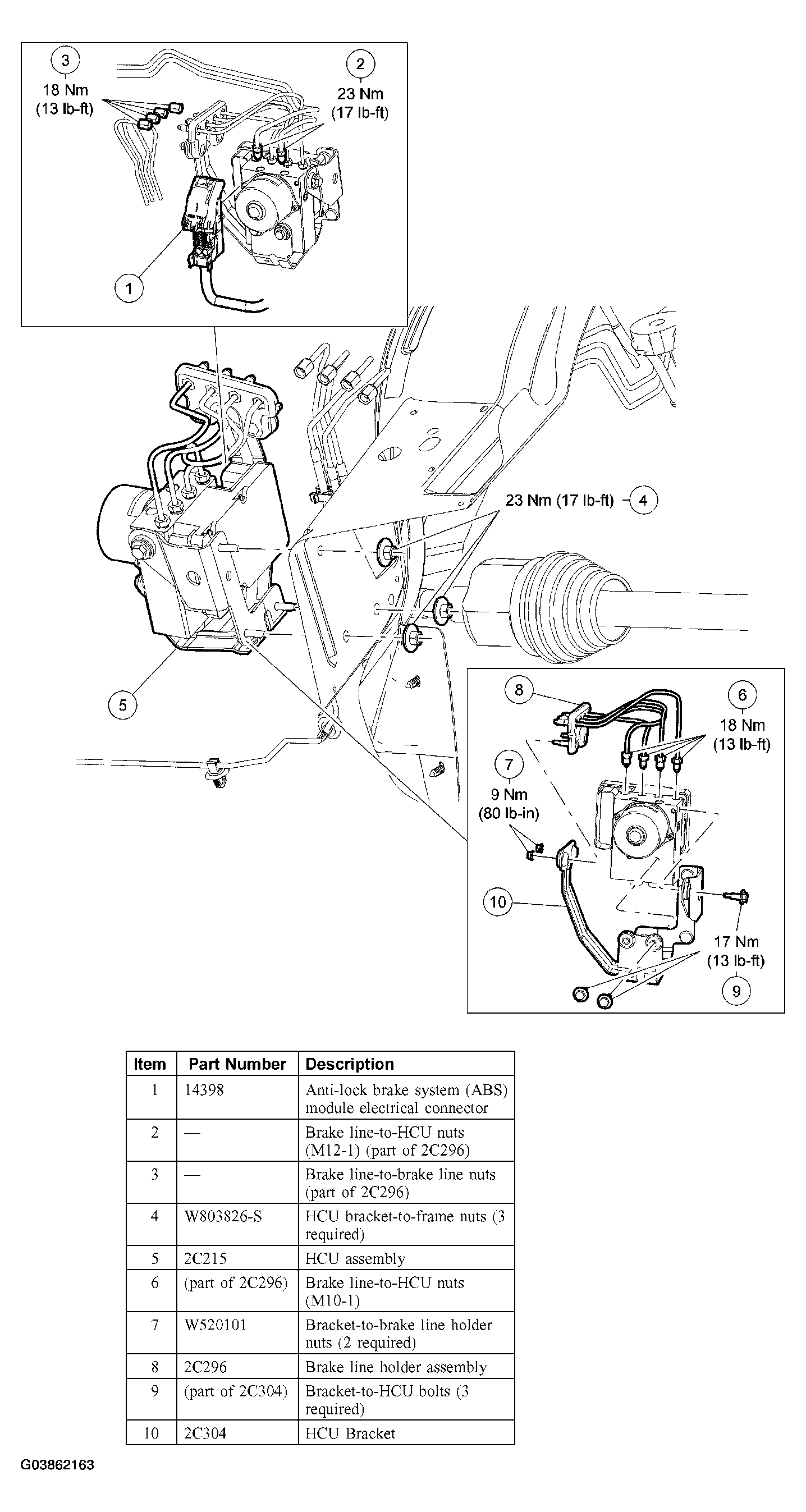

Fig 1: Identifying Anti-Lock Brake System (ABS) Hydraulic Control Unit
G03862163Courtesy of FORD MOTOR CO.
