Front Power Window Control Switch C3193a

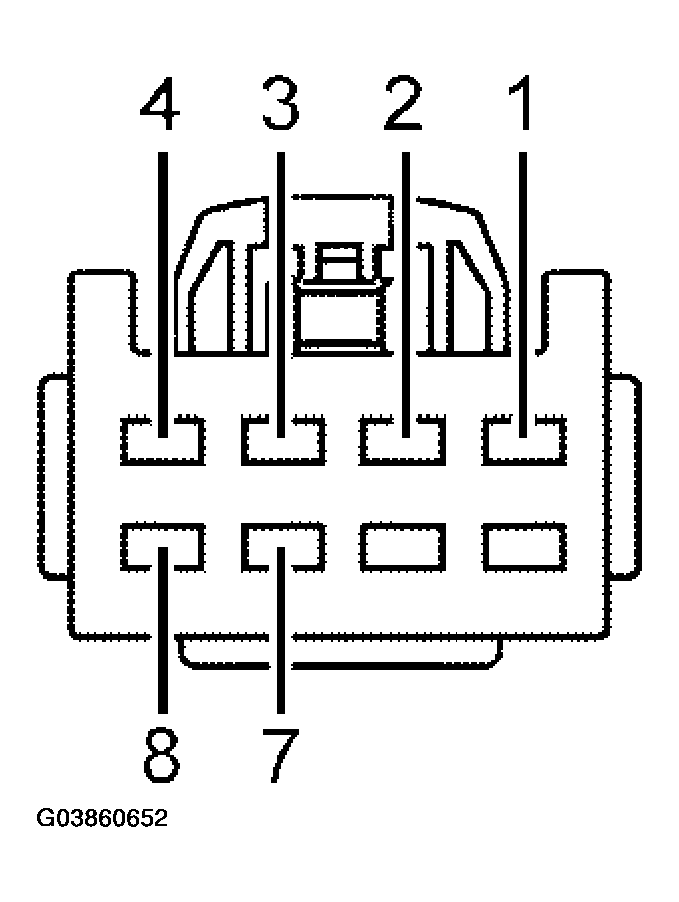

FRONT POWER WINDOW CONTROL SWITCH CONNECTOR TERMINALS REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | CKT 777 (YE) or CKT 2018 (LB/OG) or CKT 2018 (OG/YE) driver auto (one-touch up/down) | Greater than 6 volts. |
| 2 | CKT 991 (TN/LB) LF window down | Approximately 700 to 800 ohms to chassis ground and 0 volts. |
| 3 | CKT 992 (WH/BK) LF window up | Approximately 700 to 800 ohms to chassis ground and 0 volts. |
| 4 | CKT 316 (YE/LB) LR window down | Greater than 10,000 ohms to chassis ground and 0 volts. |
| 7 | CKT 170 (RD/LB) lock-out power feed | Greater than 10,000 ohms to chassis ground and 0 volts. |
| 8 | CKT 317 (GY/OG) LR window up | Greater than 10,000 ohms to chassis ground and 0 volts. |
