Front Seat: Notes
NOTE:
Driver seat shown, passenger seat similar.

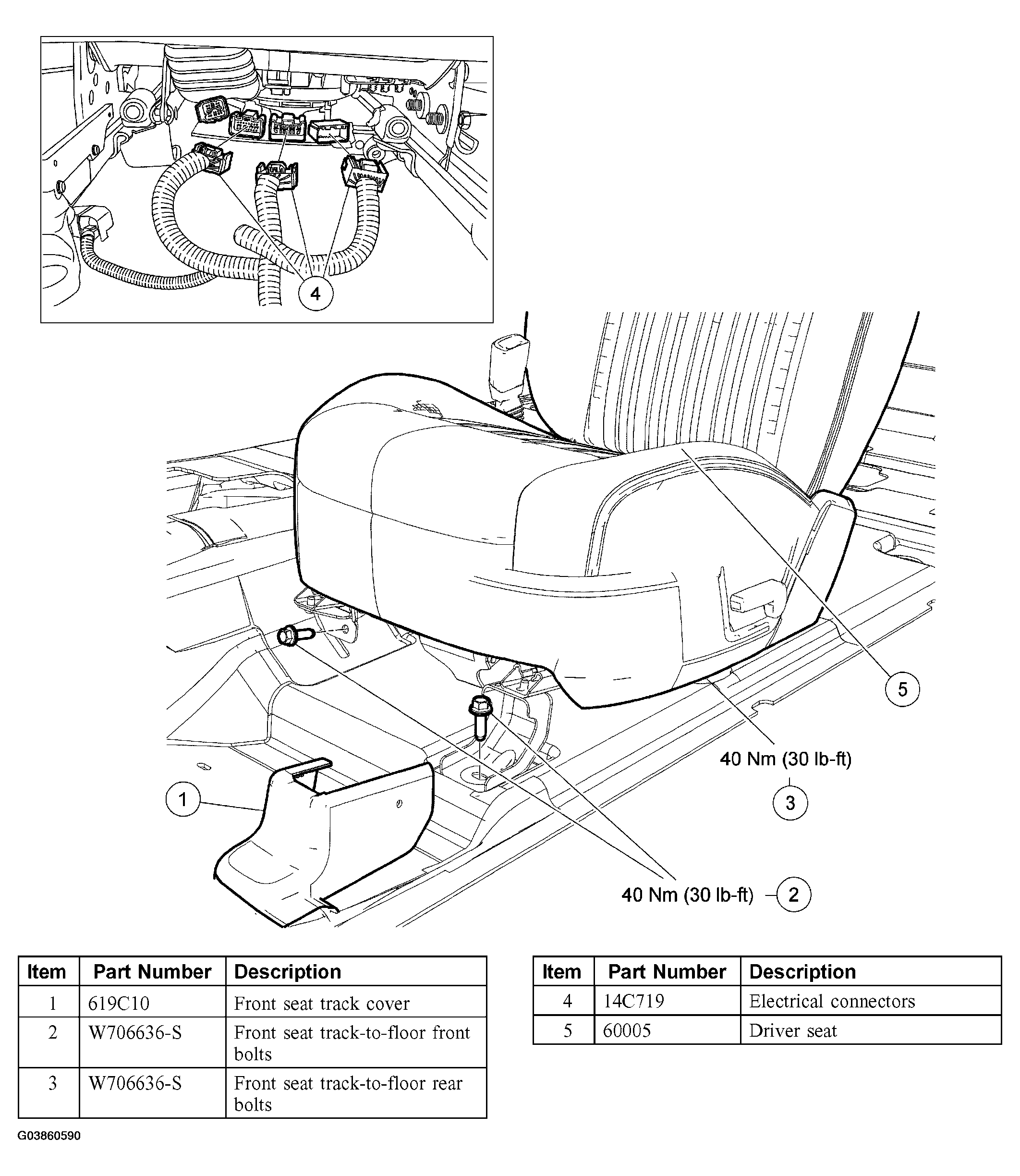

Fig 1: Identifying Front Seat Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
