Climate Controlled Seat Switch: Notes

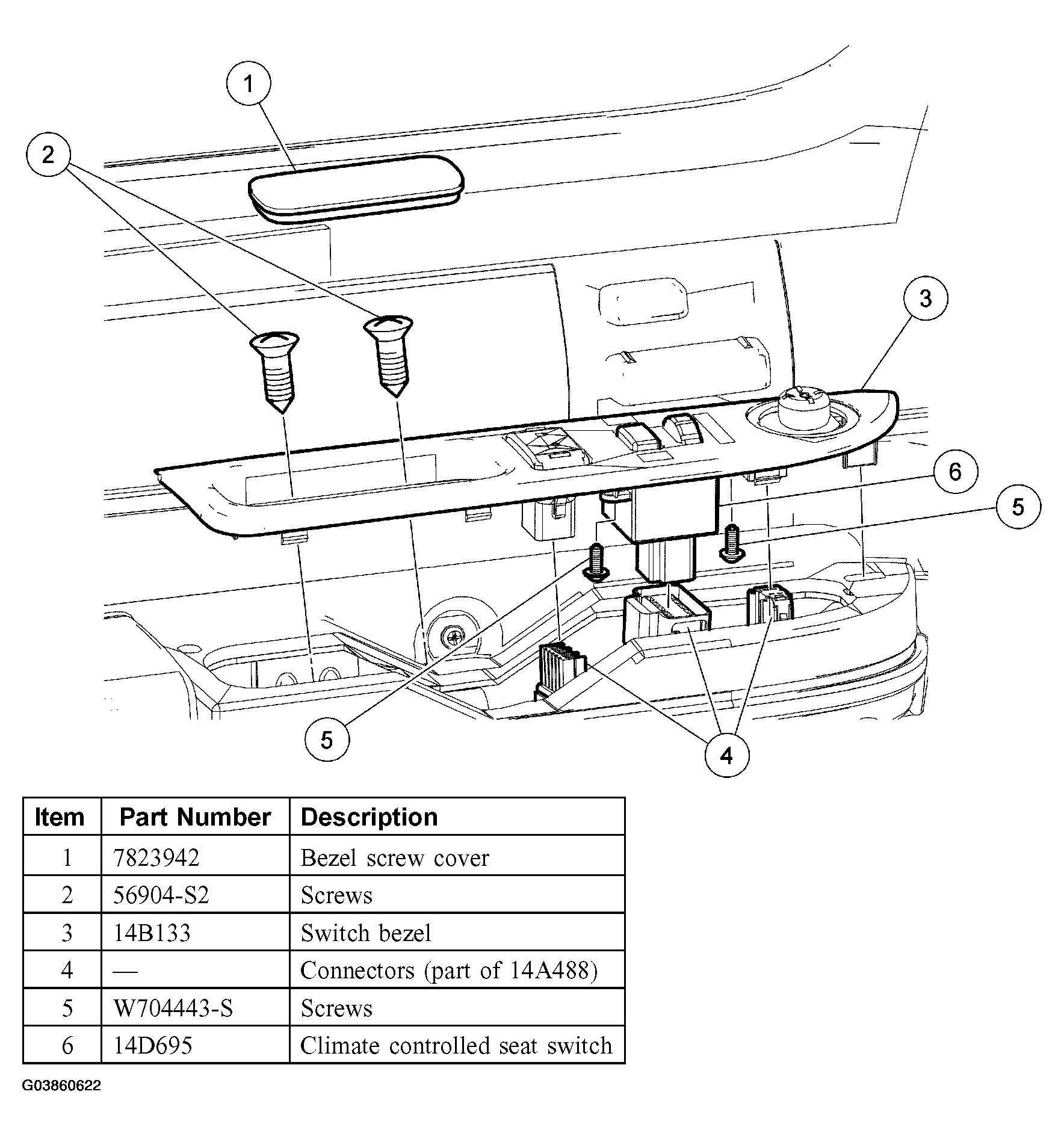

Fig 1: Identifying Climate Controlled Seat Switch Components

G03860622

Courtesy of FORD MOTOR CO.
