Rear Seat Backrest - Third Row: Notes

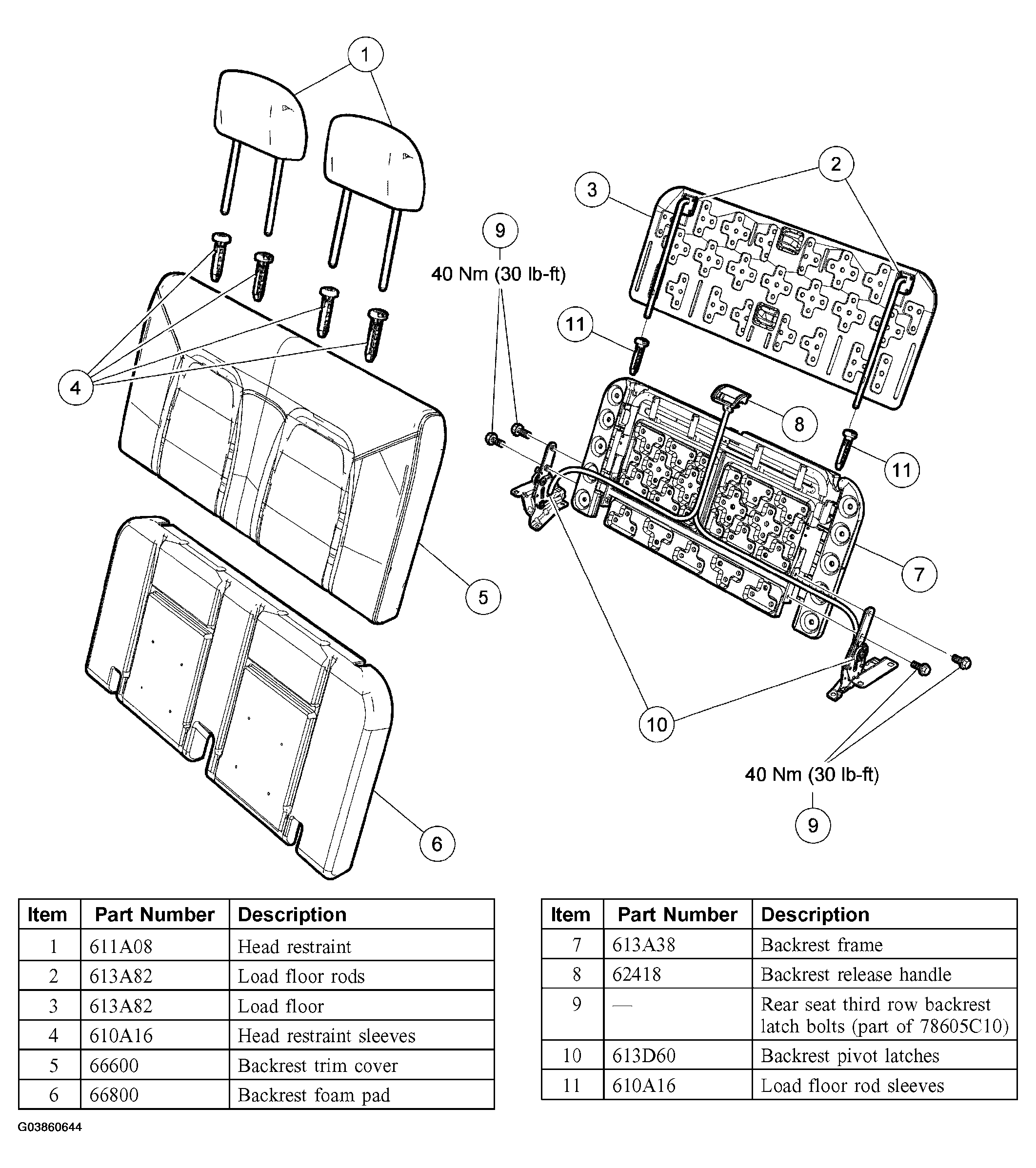

Fig 1: Identifying Rear Seat Backrest Components - Third Row

G03860644

Courtesy of FORD MOTOR CO.
