Front Seat Cushion: Notes

NOTE: Driver side shown, passenger side similar.

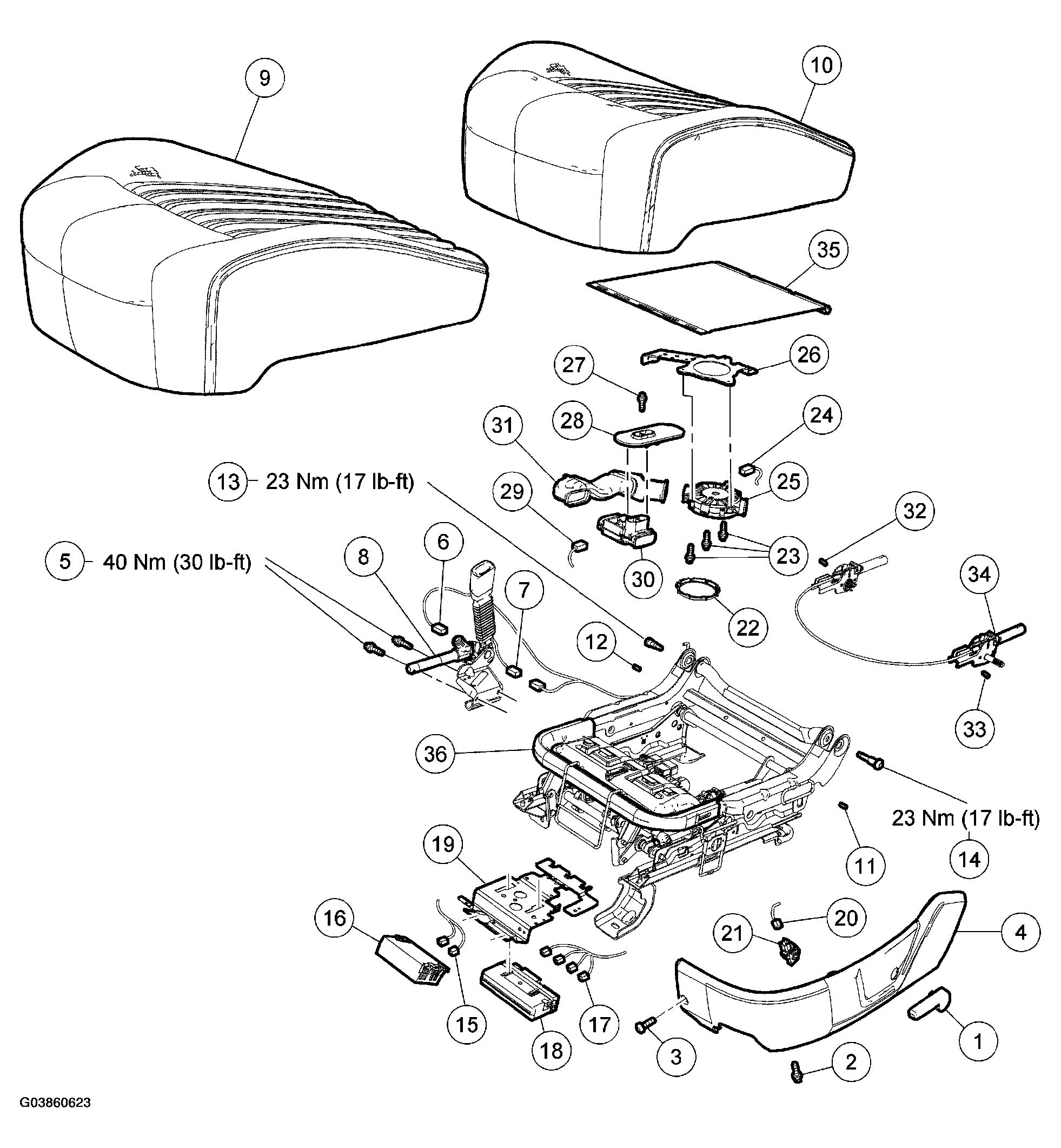

Fig 1: Exploded View Of Front Seat Cushion (Driver Side) (1 Of 2)
G03860623Courtesy of FORD MOTOR CO.

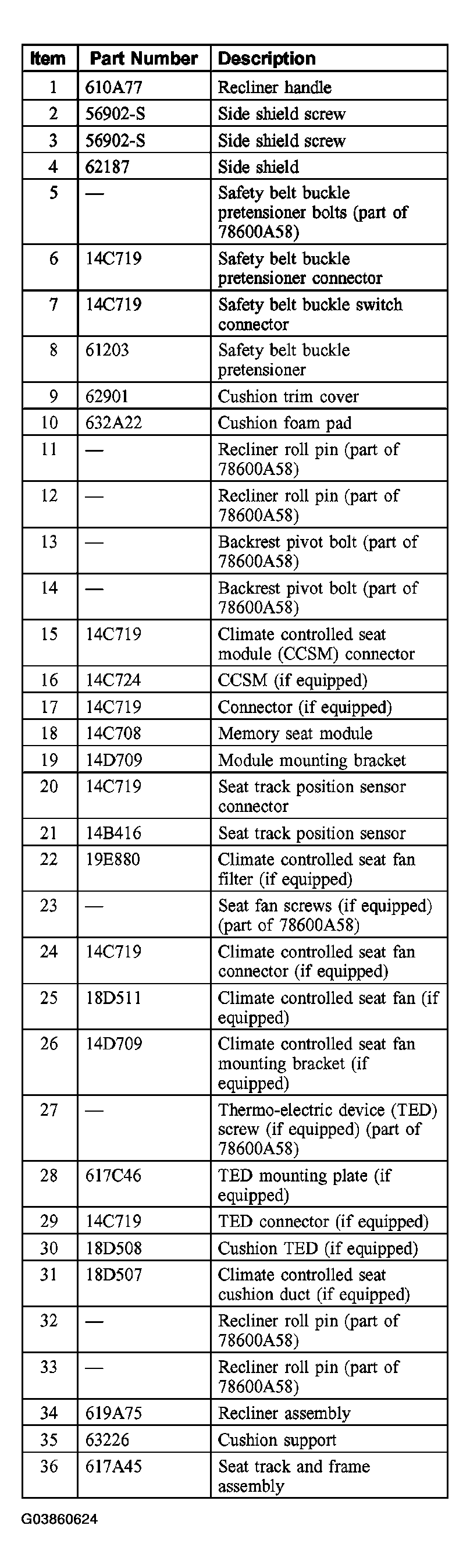

Fig 2: Exploded View Of Front Seat Cushion (Driver Side) (2 Of 2)
G03860624Courtesy of FORD MOTOR CO.
