Transmission Support Crossmember: Notes

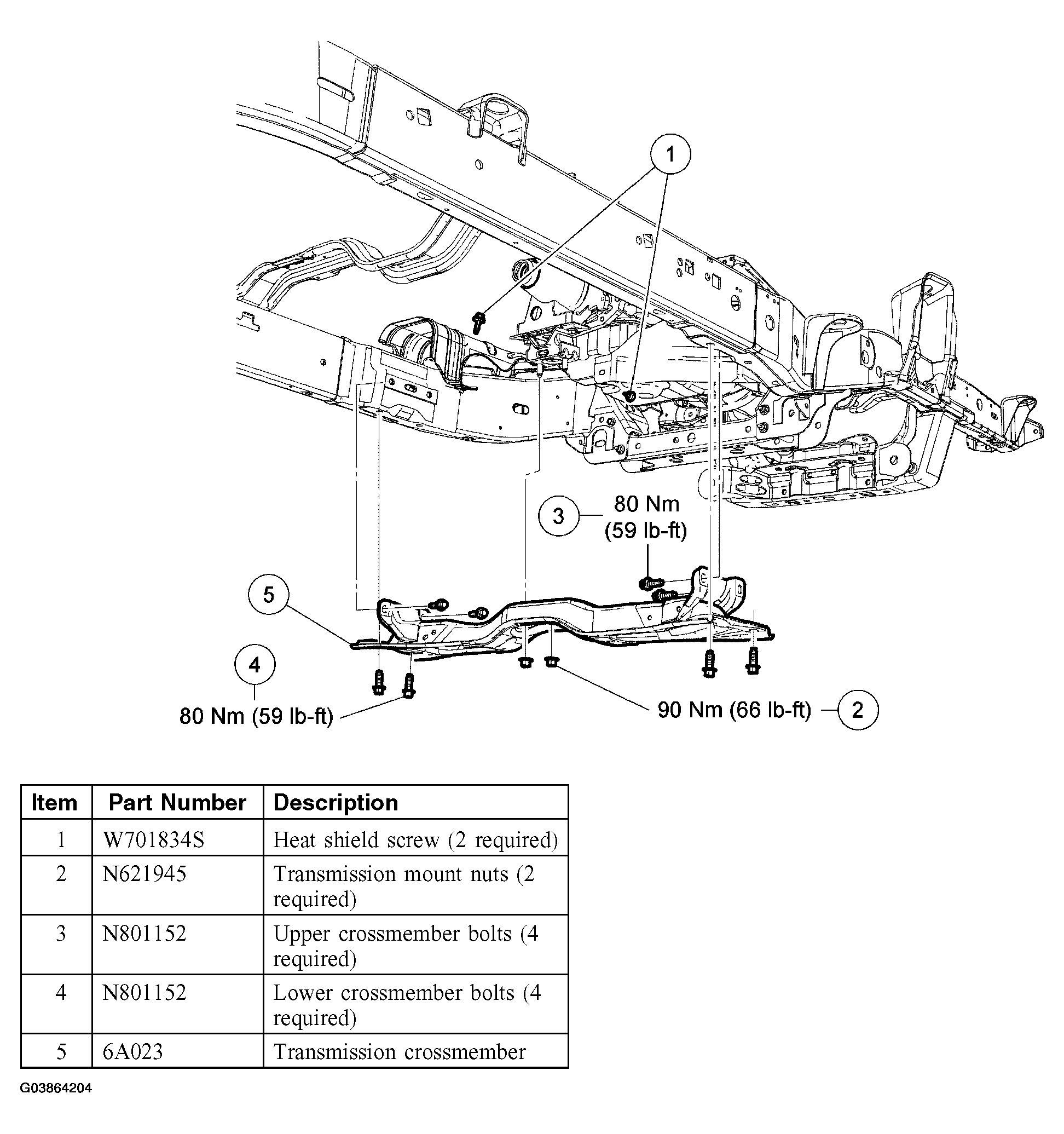

Fig 1: Identifying Transmission Support Crossmember Components

G03864204

Courtesy of FORD MOTOR CO.
